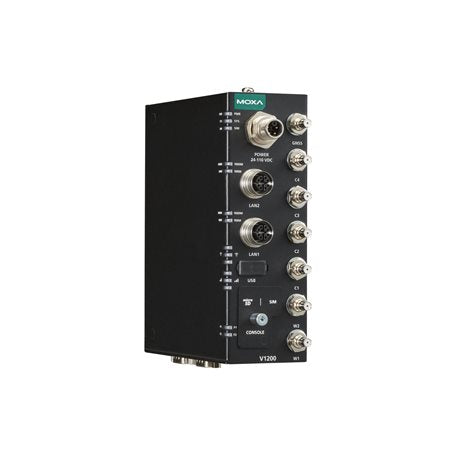

Moxa V1222-W-CT-T | V1200 Industrial Rail Computer, 5G, Wi-Fi 6, -40 to 70C, 2x GbE

Authorised Moxa Partner

SKU:V1222-W-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa V1222-W-CT-T is an Arm-based compact industrial rail computer with built-in 5G and Wi-Fi 6, 2 x M12 Gigabit Ethernet ports and 2 x RS-232/422/485 serial ports. Designed for TCMS data acquisition and train-to-ground communication, it is rated for -40 to 70 C operation and includes conformal coating for harsh railway environments.

Powered by an Arm Cortex-A53 quad-core 1.6 GHz processor with 4 GB LPDDR4 and 16 GB eMMC, it runs Moxa Industrial Linux 3 for long-term Linux support. Preinstalled 5G Sub-6GHz and Wi-Fi 6 modules with dual Nano SIM support, a built-in TPM 2.0 module and an isolated 24 to 110 VDC M12 K-code power input make it well suited to rolling stock deployments.

Features

- Arm Cortex-A53 quad-core 1.6 GHz processor for demanding on-board data processing
- Integrated 5G Sub-6GHz NR and Wi-Fi 6 modules with dual Nano SIM support
- Two M12 X-coded Gigabit Ethernet ports for reliable rail-grade connectivity
- Built-in TPM 2.0 module for hardware-based security
- Moxa Industrial Linux preinstalled for long-term Linux support
- Isolated 24 to 110 VDC power input suited to rolling stock supply ranges
- Slim, compact design with multiple mounting options
- Wide -40 to 70 C operating range with conformal coating

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Arm Cortex-A53 quad-core 1.6 GHz
- Memory: 4 GB LPDDR4
- Storage: 16 GB eMMC, 1 x microSD socket
- Ethernet: 2 x 10/100/1000 Mbps, M12 X-coded
- Serial: 2 x RS-232/422/485, software-selectable, DB9 male
- USB: 1 x USB 2.0 host, type-A
- Wireless: built-in 5G Sub-6GHz and Wi-Fi 6 (802.11a/b/g/n/ac/ax)
- SIM: 2 x Nano SIM for 5G
- Antenna connectors: 2 x QMA Wi-Fi, 4 x QMA cellular, 1 x QMA GPS
- Security: TPM 2.0
- Power input: 24-110 VDC, M12 K-code connector
- Power consumption: 13 W with 5G and Wi-Fi at 95% CPU loading
- Operating temperature: -40 to 70 C, conformal coating
- Housing: metal (SECC), IP40
- Dimensions: 150 x 120 x 50 mm
- Weight: 1000 g without mount ears
- Mounting: wall mounting standard, desk and DIN-rail mounting with optional kit
- OS: Moxa Industrial Linux 3 (Debian 11, kernel 5.10)

FAQs

Q: Does the V1222-W-CT-T include 5G and Wi-Fi 6 modules?
A: Yes. The 5G Sub-6GHz and Wi-Fi 6 modules are preinstalled, with dual Nano SIM slots for the cellular connection.

Q: What operating system does it run?
A: It runs Moxa Industrial Linux 3, based on Debian 11 with kernel 5.10, which provides long-term Linux support.

Q: What power supply does it require?
A: It accepts an isolated 24 to 110 VDC input through an M12 K-code power connector.

Q: What operating temperature range is supported?
A: It is rated for -40 to 70 C and features conformal coating for harsh environments.

Q: How can it be mounted?
A: Wall mounting is standard. Desk and DIN-rail mounting are available with an optional mounting kit.

Q: What interfaces are available for connecting devices?
A: It provides 2 x M12 X-coded Gigabit Ethernet ports, 2 x RS-232/422/485 serial ports on DB9 connectors, 1 x USB 2.0 port and a microSD socket.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
