Moxa UC-3100 Wall-Mounting Kit | 2 Brackets, 8 Screws

Authorised Moxa Partner

SKU:UC-3100 Wall-Mounting Kit

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

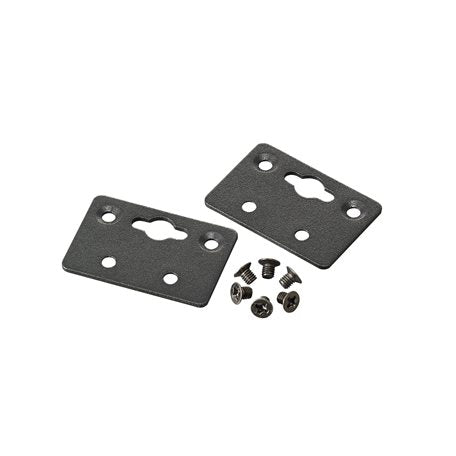

The Moxa UC-3100 wall-mounting kit is an optional accessory that lets UC-3100 Series Arm-based industrial computers be mounted on a wall instead of a DIN rail. The kit contains 2 x metal wall-mounting brackets and 8 x screws, giving you everything needed to attach the brackets to the computer.

The brackets fasten to the UC-3100 computer, which is then fixed to the wall with two screws. Wall screws are not included, and the recommended type is flat head, head diameter over 5.2 mm, length over 6 mm, thread M3 x 0.5 mm. The kit is compatible with the UC-3101, UC-3111 and UC-3121 and is sold separately, as the UC-3100 ships with the DIN-rail kit pre-installed.

Features

- Allows UC-3100 Series computers to be wall mounted as an alternative to DIN-rail mounting
- Includes the brackets and screws needed to attach the brackets to the unit
- Brackets fasten to the computer, which is then fixed to the wall with two screws
- Optional accessory, as the UC-3100 ships with the DIN-rail kit pre-installed

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Product type: Wall-mounting kit (accessory)
- Compatible series: UC-3100 Series (UC-3101, UC-3111, UC-3121)
- Package contents: 2 x Wall-mounting brackets
- Package contents: 8 x Screws
- Sold separately from the computer
- Recommended wall screws (not included): flat head, head diameter >5.2 mm, length >6 mm, thread M3 x 0.5 mm

FAQs

Q: Which Moxa computers is this wall-mounting kit compatible with?
A: It is designed for the Moxa UC-3100 Series Arm-based industrial computers, including the UC-3101, UC-3111 and UC-3121.

Q: What is included in the kit?
A: The kit contains 2 x wall-mounting brackets and 8 x screws for attaching the brackets to the computer.

Q: Is the wall-mounting kit included with the UC-3100 computer?
A: No. It is an optional accessory sold separately. The UC-3100 ships with the DIN-rail kit pre-installed.

Q: Are the screws for fixing the unit to the wall supplied?
A: No. The included screws attach the brackets to the computer. Wall screws are not included and should be flat head, head diameter over 5.2 mm, length over 6 mm, thread M3 x 0.5 mm.

Q: Can I still use DIN-rail mounting if I buy this kit?
A: Yes. The kit is an alternative mounting option, so you can choose wall mounting or DIN-rail mounting depending on the installation.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
