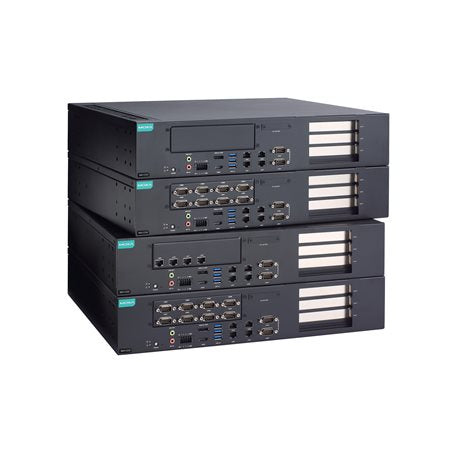

Moxa RKP-C220-C9-T | RKP-C220 2U Rackmount Industrial PC, Core i9-13900TE, 4x LAN

Authorised Moxa Partner

SKU:RKP-C220-C9-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa RKP-C220-C9-T is a fanless 2U rackmount industrial PC built on a 13th Gen Intel Core i9-13900TE processor and Intel Q670E chipset. This -T wide temperature model combines 4 x LAN, 2 x RS-232/422/485 serial ports, 4 DI/4 DO digital I/O and a 100 to 240 VAC power input, with 8 GB DDR4 pre-installed. It suits demanding edge computing, automation and control rack deployments.

Dual video outputs (HDMI 2.0b and DisplayPort 1.2) and Intel UHD Graphics 770 handle local visualisation, while dual 2.5-inch SATA SSD slots and three M.2 NVMe slots support RAID 0/1 storage configurations. Support for an NVIDIA RTX Series FLFH GPU card up to 200 W TDP allows the platform to scale to AI and vision workloads. TPM v2.0 adds hardware-based security.

Features

- Fanless 2U rackmount design for quiet, dust-resistant operation
- Supports NVIDIA RTX Series FLFH GPU card up to 200 W TDP
- 2 lockable 2.5-inch SATA SSD slots and 3 extendable M.2 M key SSD slots supporting 2 sets of Intel RST RAID 0/1
- Four Gigabit and 2.5 Gigabit LAN ports for segmented or redundant networks
- Software-selectable RS-232/422/485 serial ports for legacy device connectivity
- Onboard 4 DI / 4 DO for direct control and sensing
- Wide temperature -T model for harsh industrial environments
- TPM v2.0 for hardware-based security

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i9-13900TE (13th Gen, Raptor Lake-S)
- Chipset: Intel Q670E
- Memory: 2 x SODIMM DDR4 slots, up to 64 GB; 8 GB DDR4 pre-installed
- Graphics: Intel UHD Graphics 770
- Storage: 2 x 2.5-inch SATA III SSD slots (RAID 0/1)
- Storage: 1 x M.2 M Key 2280 (PCIe, NVMe) and 2 x M.2 M Key 2242 (PCIe, NVMe, RAID 0/1)
- LAN: 4 x RJ45 (2 x 10/100/1000 Mbps and 2 x 10/100/1000/2500 Mbps)
- Serial: 2 x RS-232/422/485 (software selectable, DB9 male)
- Digital I/O: 4 DI / 4 DO (spring-type Euroblock terminal)
- USB: 3 x USB 3.0
- Video: 1 x HDMI 2.0b and 1 x DisplayPort 1.2
- Power input: 100 to 240 VAC
- Security: TPM v2.0
- Form factor: 2U rackmount, fanless, rack-mounting ears included
- Wide operating temperature (-T model)

FAQs

Q: What processor does the RKP-C220-C9-T use?
A: It uses a 13th Gen Intel Core i9-13900TE (Raptor Lake-S) processor paired with the Intel Q670E chipset.

Q: How much memory is installed and how far can it be expanded?
A: It ships with 8 GB DDR4 pre-installed and has 2 x SODIMM DDR4 slots supporting up to 64 GB.

Q: Can I add a GPU to this industrial PC?
A: Yes. The RKP-C220 platform supports an NVIDIA RTX Series FLFH GPU card up to 200 W TDP.

Q: What storage options and RAID support are available?
A: It offers 2 x 2.5-inch SATA III SSD slots with RAID 0/1 plus one M.2 2280 and two M.2 2242 NVMe slots, with Intel RST RAID 0/1 supported.

Q: What does the -T suffix mean?
A: The -T suffix denotes the wide operating temperature model of the RKP-C220-C9, suited to harsh industrial environments.

Q: What video outputs and serial interfaces are provided?
A: It provides 1 x HDMI 2.0b and 1 x DisplayPort 1.2 for video, and 2 x software-selectable RS-232/422/485 DB9 serial ports.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
