Moxa RKP-C220-C9-8C-T | RKP-C220 2U Industrial PC, Core i9-13900TE, 4 LAN, 10 Serial

Authorised Moxa Partner

SKU:RKP-C220-C9-8C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

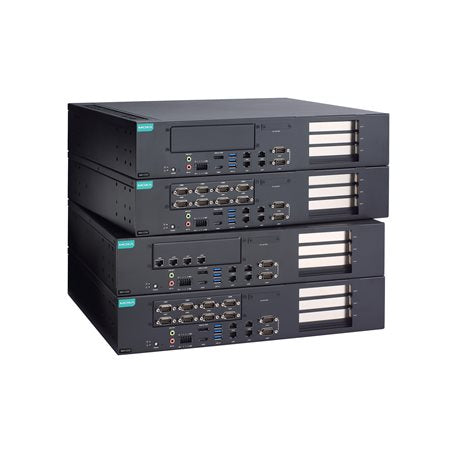

The Moxa RKP-C220-C9-8C-T is a fanless 2U rackmount industrial PC built on a 13th Gen Intel Core i9-13900TE processor and Q670E chipset. It combines 4 LAN ports, 10 serial ports and 4 DI/4 DO channels with an operating range of -30 to 60°C, making it well suited to factory automation, edge computing and demanding control room deployments.

Three PCIe slots include an x16 slot that supports a full-length, full-height GPU card for edge AI and machine vision workloads. Storage options include two lockable 2.5-inch SATA SSD slots plus M.2 M Key slots with Intel RST RAID 0/1 support, and TPM 2.0 is built in for platform security. All interfaces sit on one side of the chassis for convenient access and wiring.

Features

- Fanless design with an optional additional fan module to boost performance
- Supports an NVIDIA RTX Series FLFH GPU card up to 200 W TDP
- Two sets of Intel RST RAID 0/1 supported via the SSD and M.2 slots
- All interfaces on one side for convenient access and wire stripping
- External RTC battery slot simplifies battery replacement
- Wide operating temperature range of -30 to 60°C

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i9-13900TE
- Chipset: Intel Q670E
- Memory: 2 x DDR4 SODIMM slots, up to 64 GB; 8 GB DDR4 pre-installed
- 4 x LAN ports
- 10 x serial ports
- 4 x DI, 4 x DO
- 3 x USB 3.0, 1 x HDMI, 1 x DisplayPort
- Storage: 2 x lockable 2.5" SATA SSD slots, 1 x M.2 M Key 2280 slot, 2 x M.2 M Key 2242 slots
- Expansion: 3 PCIe slots, x16 (GPU support), x8 (4-lane), x1
- Power input: 100 to 240 VAC
- Operating temperature: -30 to 60°C
- Security: TPM 2.0 built in
- Form factor: 2U rackmount

FAQs

Q: Can the RKP-C220-C9-8C-T support a GPU card?
A: Yes. The PCIe x16 slot supports an NVIDIA RTX Series FLFH GPU card up to 200 W TDP, suitable for edge AI and machine vision applications.

Q: How much memory does it support?
A: It has 2 x DDR4 SODIMM slots supporting up to 64 GB, with 8 GB DDR4 pre-installed.

Q: What operating temperature range does this model cover?
A: The -T model operates from -30 to 60°C, suitable for harsh industrial environments.

Q: Does it support RAID?
A: Yes. Two sets of Intel RST RAID 0/1 are supported via the SSD and M.2 slots.

Q: What I/O does this model provide?
A: It provides 4 LAN ports, 10 serial ports, 4 digital inputs, 4 digital outputs, 3 USB 3.0 ports, HDMI and DisplayPort.

Q: Does it include TPM for security?
A: Yes. TPM 2.0 is built in.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
