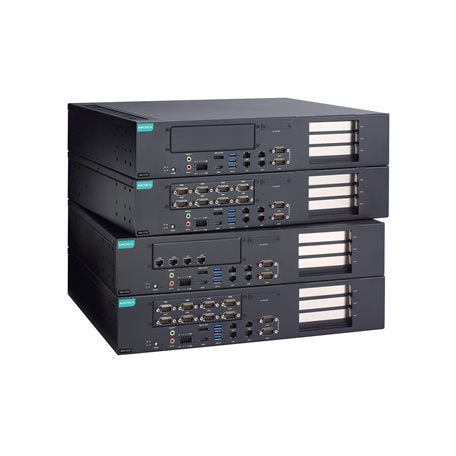

The Moxa RKP-C220-C9-2CB6C-T is a 2U rackmount industrial PC built on an Intel Core i9-13900TE processor with the Intel Q670E chipset. This 2CB6C variant pairs 8 software-selectable RS-232/422/485 serial ports with 2 isolated CAN ports, alongside 4 LAN ports, and ships with 8 GB DDR4 and a 100 to 240 VAC power input. It suits factory automation, rail, energy and other industrial control deployments that need dense serial and CAN connectivity in a standard rack.

Three PCIe Gen 4 expansion slots, two SATA SSD bays and three NVMe M.2 slots with RAID 0/1 support allow flexible expansion and storage. HDMI 2.0b and DisplayPort 1.2 outputs, 4 DIs and 4 DOs, TPM 2.0 and a -30 to 60°C operating range (without graphics card) round out a platform built for demanding, long-running installations.

Features

- 13th-gen Intel Core i9-13900TE performance in a 2U rackmount chassis
- 8 serial ports combined with 2 isolated CAN ports for industrial device connectivity
- Four LAN ports including two 2.5 GbE ports
- Three PCIe Gen 4 expansion slots for add-in cards
- Flexible storage with SATA SSD bays and NVMe M.2 slots supporting RAID 0/1
- Wide -30 to 60°C operating temperature range (without graphics card)
- Built-in TPM 2.0, hardware watchdog timer and RTC
- Supports Windows 10 IoT Enterprise LTSC, Windows 11 IoT Enterprise LTSC and Linux (Debian, Ubuntu, RHEL)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Core i9-13900TE
- Chipset: Intel Q670E
- Memory: 8 GB DDR4 pre-installed, 2 x SODIMM slots, up to 64 GB
- LAN: 2 x 10/100/1000 Mbps and 2 x 10/100/1000/2500 Mbps RJ45
- Serial: 8 x RS-232/422/485 (software selectable, DB9 male), 50 bps to 115.2 kbps
- CAN: 2 x CAN 2.0A/2.0B (DB9 male, 2 kV isolation)
- Digital I/O: 4 DIs (dry contact), 4 DOs (sink, 200 mA per channel)
- USB: 3 x external USB 3.0 Type-A, 1 x internal USB 3.0
- Video: HDMI 2.0b and DisplayPort 1.2, Intel UHD Graphics 770
- Storage: 2 x 2.5-inch SATA SSD slots (RAID 0/1), 1 x M.2 2280 NVMe, 2 x M.2 2242 NVMe (RAID 0/1)
- Expansion: PCIe x16 Gen 4, PCIe x8 Gen 4, PCIe x1 Gen 4
- Audio: Mic-in and Line-out (3.5 mm)
- Security: TPM v2.0
- Power input: 100 to 240 VAC, IEC 60320 C16 inlet, 90 W (without graphics card)
- Dimensions: 440 x 360 x 88.1 mm (W x D x H), 2U rackmount
- Weight: 9,062 g
- Operating temperature: -30 to 60°C (without graphics card)
- Storage temperature: -40 to 70°C
- Humidity: 5 to 95% non-condensing
- MTBF: 995,157 hrs (Telcordia)
- Certifications: UL 62368-1 (CB), BSMI, FCC Part 15B Class A, CE EMC, RoHS, CRoHS, WEEE

FAQs

Q: What does the 2CB6C in this part number mean?
A: The 2CB6C variant provides 8 serial ports and 2 CAN ports, together with the Intel Core i9-13900TE, 8 GB DDR4 and a 100 to 240 VAC power input.

Q: How much memory does it support?
A: It ships with 8 GB DDR4 and has 2 SODIMM slots supporting up to 64 GB.

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021, Windows 11 IoT Enterprise LTSC 2024 and Windows 11 Professional 64-bit are supported, along with Linux drivers for Debian 12, Ubuntu 22.04 LTS and RHEL 9.0.

Q: What storage options are available?
A: There are two 2.5-inch SATA SSD slots with RAID 0/1, one M.2 2280 NVMe slot and two M.2 2242 NVMe slots with RAID 0/1 support.

Q: Can I add expansion cards?
A: Yes. It provides one PCIe x16 Gen 4, one PCIe x8 Gen 4 and one PCIe x1 Gen 4 slot. Operating temperature is rated without a graphics card installed.

Q: Are the serial ports fixed or configurable?
A: All 8 serial ports are software selectable between RS-232, RS-422, RS-485 2-wire and RS-485 4-wire, using DB9 male connectors.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
