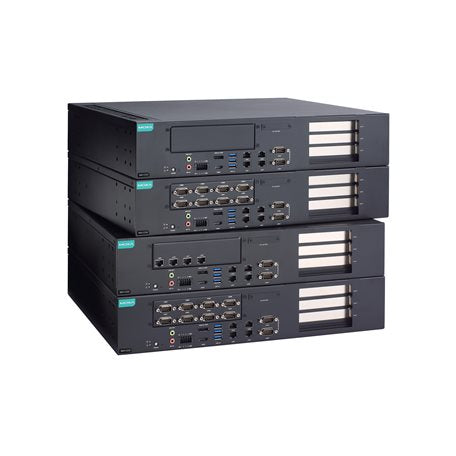

Moxa RKP-C220-C7-T | RKP-C220 2U Fanless Rackmount Industrial PC, Core i7-13700TE

Authorised Moxa Partner

SKU:RKP-C220-C7-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The RKP-C220-C7-T is a fanless 2U rackmount industrial PC built on a 13th Gen Intel Core i7-13700TE processor and Intel Q670E chipset. This model provides 4 LAN ports, 2 serial ports, 4 DI and 4 DO channels, and HDMI plus DisplayPort outputs, with a wide operating temperature range of -30 to 60°C for demanding industrial environments.

It ships with 8 GB DDR4 pre-installed and supports up to 64 GB across two SODIMM slots. Flexible storage options include 2 SSD slots, 1 M.2 M Key 2280 slot and 2 M.2 M Key 2242 slots, while the RKP-C220 series also supports PCIe expansion for GPU acceleration. A 12/24 VDC power input suits control cabinets and rack-based automation deployments.

Features

- Fanless 2U rackmount design for reliable, low-maintenance operation
- 13th Gen Intel Core (Raptor Lake-S) processor for high-performance edge computing
- Wide operating temperature range of -30 to 60°C
- Series supports up to 3 PCIe slots with full-length full-height 200W GPU capability
- Series supports RAIDable NVMe and SATA storage
- Flexible I/O options across the series, including additional LAN, serial and CAN

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i7-13700TE
- Chipset: Intel Q670E
- Memory: 8 GB DDR4 pre-installed, 2 x SODIMM DDR4 slots, up to 64 GB
- LAN: 4 x LAN ports
- Serial: 2 x serial ports
- Digital I/O: 4 x DI, 4 x DO
- USB: 3 x USB 3.0 ports
- Display: 1 x HDMI, 1 x DisplayPort
- Storage: 2 x SSD slots, 1 x M.2 M Key 2280 slot, 2 x M.2 M Key 2242 slots
- Power input: 12/24 VDC
- Operating temperature: -30 to 60°C
- Form factor: 2U 19-inch rackmount

FAQs

Q: What processor does the RKP-C220-C7-T use?
A: It uses a 13th Gen Intel Core i7-13700TE processor with the Intel Q670E chipset.

Q: How much memory does it support?
A: It comes with 8 GB DDR4 pre-installed and has 2 SODIMM DDR4 slots supporting up to 64 GB.

Q: What is the operating temperature range?
A: The T model is rated for operation from -30 to 60°C.

Q: What I/O does this model provide?
A: It provides 4 LAN ports, 2 serial ports, 4 digital inputs, 4 digital outputs and 3 USB 3.0 ports, plus HDMI and DisplayPort video outputs.

Q: What storage options are available?
A: It offers 2 SSD slots, 1 M.2 M Key 2280 slot and 2 M.2 M Key 2242 slots.

Q: What power input does it use?
A: It operates from a 12/24 VDC power input.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
