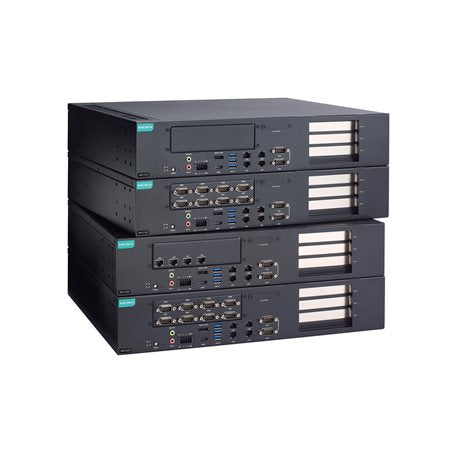

Moxa RKP-C220-C7-4L-T | RKP-C220 2U Rackmount Industrial Computer, Core i7-13700TE, 8 LAN, 8GB

Authorised Moxa Partner

SKU:RKP-C220-C7-4L-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The RKP-C220-C7-4L-T is a fanless 2U rackmount industrial computer built on a 13th Gen Intel Core i7-13700TE (Raptor Lake-S) processor and Intel Q670E chipset. This 4L model provides 8 LAN ports (6 x Gigabit and 2 x 2.5GbE), 2 software-selectable RS-232/422/485 serial ports and 8 GB of pre-installed DDR4, and runs across a wide -30 to 60°C operating range from a 100 to 240 VAC supply.

Expansion is handled by PCIe x16, x8 (4-lane) and x1 slots, with the x16 slot supporting NVIDIA RTX series full-length, full-height GPU cards up to 200 W TDP. Storage options include two lockable 2.5 inch SATA SSD slots and three M.2 M-key slots with Intel RST RAID 0/1 support, while HDMI 2.0b and DisplayPort 1.2 outputs, 4 DI, 4 DO and built-in TPM 2.0 suit edge computing, machine vision and industrial automation deployments.

Features

- 13th Gen Intel Core Raptor Lake-S processor with Intel Q670E chipset
- Fanless 2U rackmount design, with an optional RKP-FAN fan module for extra performance
- Supports NVIDIA RTX series FLFH GPU cards up to 200 W TDP
- Three PCIe expansion slots: x16 (GPU), x8 (4-lane) and x1
- Two lockable 2.5 inch SATA SSD slots and three M.2 M-key slots, supporting 2 sets of Intel RST RAID 0/1
- Wide -30 to 60°C operating temperature range
- Built-in TPM 2.0
- All interfaces on one side for easy access, with an external RTC battery slot for simple replacement

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i7-13700TE (13th Gen Raptor Lake-S)
- Chipset: Intel Q670E
- Memory: 8 GB DDR4 pre-installed, 2 x SODIMM slots, up to 64 GB
- Graphics: Intel UHD Graphics 770, HDMI 2.0b and DisplayPort 1.2 outputs
- Ethernet: 6 x 10/100/1000 Mbps and 2 x 10/100/1000/2500 Mbps (RJ45)
- Serial: 2 x RS-232/422/485 (DB9 male, software selectable), 50 bps to 115.2 kbps
- I/O: 4 x DI, 4 x DO, 3 x external USB 3.0, 1 x internal USB 3.0, mic-in and line-out
- Storage: 2 x 2.5 inch SATA III SSD slots, 1 x M.2 2280 M-key, 2 x M.2 2242 M-key
- Expansion: PCIe x16 (Gen 4), PCIe x8 (4-lane, Gen 4), PCIe x1 (Gen 4)
- Security: TPM 2.0
- Power: 100 to 240 VAC input, 90 W consumption without graphics card
- Operating temperature: -30 to 60°C without graphics card
- Dimensions: 440 x 360 x 88.1 mm, 2U rack mounting
- Weight: 8,914 g
- Ingress protection: IP20, metal housing
- Certifications: UL 62368-1 (CB), BSMI, FCC Part 15B Class A, CISPR 32, EN 55032/35

FAQs

Q: Can the RKP-C220-C7-4L-T take a GPU card?
A: Yes. The PCIe x16 slot supports NVIDIA RTX series full-length, full-height GPU cards up to 200 W TDP. The -30 to 60°C operating range applies without a graphics card installed.

Q: How many network and serial ports does this model have?
A: It has 8 RJ45 LAN ports (6 x 10/100/1000 Mbps and 2 x 10/100/1000/2500 Mbps) and 2 DB9 serial ports that are software selectable between RS-232, RS-422 and RS-485.

Q: What storage options are supported?
A: Two lockable 2.5 inch SATA III SSD slots, one M.2 2280 M-key slot and two M.2 2242 M-key slots. Intel RST RAID 0/1 is supported on the SATA and M.2 2242 slots.

Q: Does it need active cooling?
A: No. The system is fanless. An optional RKP-FAN fan module is available if extra performance is needed.

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021, Windows 11 IoT Enterprise LTSC 2024 and Windows 11 Professional (64-bit). Drivers are also available for Windows Server 2022, Debian 12, Ubuntu 22.04 LTS and RHEL 9.0.

Q: What is the power input and consumption?
A: The unit accepts 100 to 240 VAC through an IEC 60320 C16 inlet and consumes 90 W without a graphics card.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
