Moxa RKP-C220-C7-2CB6C-T | RKP-C220 2U Fanless Rackmount Industrial PC, Core i7-13700TE, 8 Serial, 2 CAN

Authorised Moxa Partner

SKU:RKP-C220-C7-2CB6C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

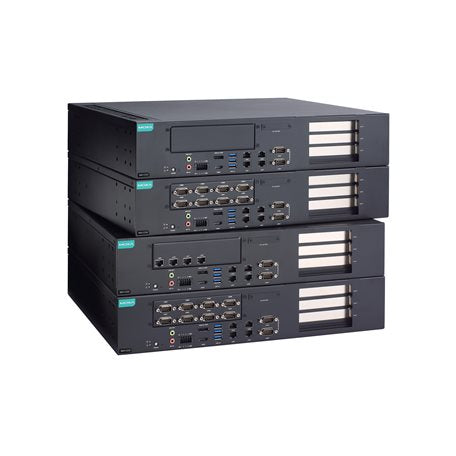

The Moxa RKP-C220-C7-2CB6C-T is a fanless 2U rackmount industrial PC from the RKP-C220 Series, built on a 13th Gen Intel Core i7-13700TE processor and Intel Q670E chipset. This variant provides 8 software-selectable RS-232/422/485 serial ports, 2 CAN ports, 4 Gigabit LAN ports and 4 digital inputs and 4 digital outputs, with a 100 to 240 VAC power input. It suits factory automation, machine vision and edge computing deployments that need serial, CAN and Ethernet connectivity in a single rack-mount chassis.

The chassis supports a full-length, full-height GPU card up to 200 W TDP through its PCIe x16 Gen 4 slot, alongside PCIe x8 and x1 expansion slots. Storage options include two lockable 2.5-inch SATA SSD slots with RAID 0/1 and M.2 M key slots, and memory is expandable to 64 GB DDR4 from the pre-installed 8 GB. The fanless design operates across -30 to 60°C.

Features

- 13th Gen Intel Core i7-13700TE processor with Intel Q670E chipset for demanding edge workloads
- Fanless 2U rackmount design for reliable operation in harsh environments
- Supports NVIDIA RTX Series full-length, full-height GPU cards up to 200 W TDP
- Two SODIMM sockets support up to 64 GB DDR4 memory
- Three PCIe slots for expansion modules: x16 with GPU support, x8 and x1
- 8 serial ports and 2 CAN ports for connecting legacy and fieldbus equipment
- Lockable 2.5-inch SATA SSD slots with Intel RST RAID 0/1 support
- Wide -30 to 60°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Core i7-13700TE (13th Gen, Raptor Lake-S)
- Chipset: Intel Q670E
- Memory: 8 GB DDR4 pre-installed, 2 x SODIMM DDR4 slots, up to 64 GB
- LAN: 4 x Gigabit Ethernet ports
- Serial: 8 x software-selectable RS-232/422/485 (DB9 male)
- CAN: 2 ports
- Digital I/O: 4 DIs and 4 DOs
- USB: 3 x USB 3.0 host ports (Type-A)
- Storage: 2 x 2.5-inch SATA III SSD slots (RAID 0/1), M.2 M key 2280 NVMe socket
- Expansion: PCIe x16 (Gen 4), PCIe x8 (4-lane, Gen 4), PCIe x1 (Gen 4)
- Power input: 100 to 240 VAC
- Form factor: 2U rackmount, fanless
- Operating temperature: -30 to 60°C
- Weight: 9,062 g (19.98 lb)

FAQs

Q: Does the RKP-C220-C7-2CB6C-T support a GPU card?
A: Yes. The PCIe x16 Gen 4 slot supports a full-length, full-height NVIDIA RTX Series GPU card up to 200 W TDP.

Q: How many serial and CAN ports does this model have?
A: This variant has 8 software-selectable RS-232/422/485 serial ports (DB9 male) and 2 CAN ports.

Q: How much memory can be installed?
A: The system has two SODIMM DDR4 slots supporting up to 64 GB, and ships with 8 GB DDR4 pre-installed.

Q: Does it have a cooling fan?
A: No. The RKP-C220 Series uses a fanless design and is rated for operation from -30 to 60°C.

Q: What storage options are available?
A: Two lockable 2.5-inch SATA III SSD slots with RAID 0/1 support and an M.2 M key 2280 socket with NVMe support.

Q: What power input does this model use?
A: It runs from a 100 to 240 VAC power input.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
