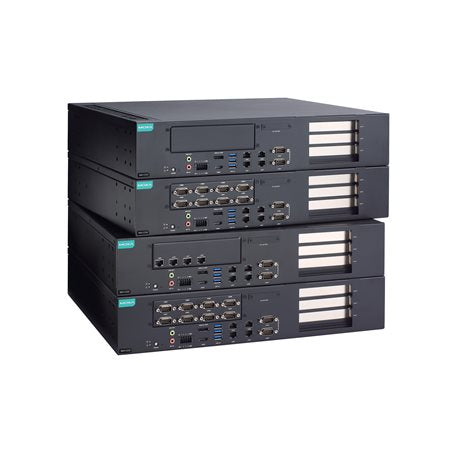

Moxa RKP-C220-C5-T | RKP-C220 2U Industrial Computer, Core i5-13500TE, 8GB, 4x LAN

Authorised Moxa Partner

SKU:RKP-C220-C5-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The RKP-C220-C5-T is a rugged, fanless 2U rackmount industrial computer built on a 13th Gen Intel Core i5-13500TE processor with the Intel Q670E chipset. It ships with 8 GB DDR4 memory, 4 x LAN (2 x Gigabit and 2 x 2.5GbE RJ45), 2 x software-selectable RS-232/422/485 serial ports and 4 DI / 4 DO digital I/O, with a 100-240 VAC power input. It suits industrial automation, edge computing and control room deployments that need dependable x86 performance across a -30 to 60°C operating range.

Expansion and storage are well covered, with one PCIe x16 (Gen 4), one PCIe x8 (4-lane, Gen 4) and one PCIe x1 (Gen 4) slot, two 2.5-inch SATA SSD slots and three M.2 NVMe slots with RAID 0/1 support. Video output is provided by HDMI 2.0b and DisplayPort 1.2, TPM v2.0 supports platform security, and the system runs Windows 10 IoT Enterprise LTSC, Windows 11 IoT Enterprise LTSC, Windows 11 Professional, Debian, Ubuntu and RHEL.

Features

- 13th Gen Intel Core processor platform with Intel UHD Graphics 770
- Rugged fanless 2U chassis, with an optional fan module
- TPM 2.0 for platform security
- Software-selectable RS-232/422/485 serial ports
- Three PCIe Gen 4 expansion slots for add-in cards
- Wide -30 to 60°C operating range
- RAID 0/1 support on SATA and M.2 2242 storage
- Built-in watchdog timer and RTC with battery backup

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Core i5-13500TE processor, Intel Q670E chipset
- 8 GB DDR4 pre-installed, 2 x SODIMM slots, up to 64 GB
- 4 x LAN: 2 x 10/100/1000 Mbps and 2 x 10/100/1000/2500 Mbps (RJ45)
- 2 x RS-232/422/485 serial ports (DB9 male), software selectable
- 4 DI and 4 DO (spring-type Euroblock)
- 3 x external USB 3.0 and 1 x internal USB 3.0
- HDMI 2.0b and DisplayPort 1.2 video output
- 2 x 2.5-inch SATA SSD slots, 1 x M.2 2280 NVMe, 2 x M.2 2242 NVMe
- Expansion: PCIe x16 (Gen 4), PCIe x8 (4-lane, Gen 4), PCIe x1 (Gen 4)
- TPM v2.0
- 100-240 VAC power input, 90 W without graphics card
- Operating temperature -30 to 60°C (without graphics card), fanless
- 2U rack mount, 440 x 360 x 88.1 mm, 8,913 g

FAQs

Q: Which operating systems does the RKP-C220-C5-T support?
A: It supports Windows 10 IoT Enterprise LTSC 2021 64-bit, Windows 11 IoT Enterprise LTSC 2024 64-bit and Windows 11 Professional 64-bit. Linux drivers are available for Debian 12, Ubuntu 22.04 LTS/HWE and RHEL 9.0.

Q: How many network ports does it have and at what speeds?
A: It has four RJ45 LAN ports: two 10/100/1000 Mbps ports and two 10/100/1000/2500 Mbps ports.

Q: What storage options are available?
A: There are two 2.5-inch SATA III SSD slots with RAID 0/1, one M.2 M Key 2280 NVMe slot and two M.2 M Key 2242 NVMe slots with RAID 0/1 support.

Q: Can I install expansion cards?
A: Yes. It provides one PCIe x16 (Gen 4), one PCIe x8 (4-lane, Gen 4) and one PCIe x1 (Gen 4) slot. The operating temperature rating of -30 to 60°C applies without a graphics card installed.

Q: Does it have serial and digital I/O ports?
A: Yes. It has two DB9 serial ports that are software selectable between RS-232, RS-422 and RS-485 (2-wire or 4-wire), plus 4 digital inputs and 4 digital outputs on spring-type Euroblock connectors.

Q: What power input does it use?
A: It accepts 100 to 240 VAC through an IEC 60320 C16 inlet, with power consumption of 90 W without a graphics card.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
