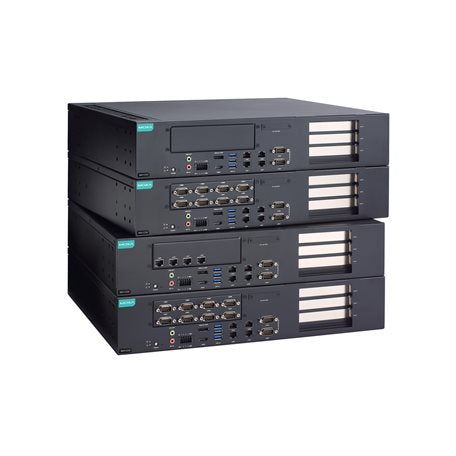

Moxa RKP-C220-C5-8C-T | RKP-C220 2U Rackmount Industrial PC, Core i5-13500TE, 10x Serial

Authorised Moxa Partner

SKU:RKP-C220-C5-8C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The RKP-C220-C5-8C-T is a 2U rackmount industrial PC built around an Intel Core i5-13500TE processor and Intel Q670E chipset, with 8 GB DDR4 pre-installed and 10 software-selectable RS-232/422/485 serial ports. It suits factory automation, substation and transport deployments that need dense serial connectivity alongside four Ethernet ports, 4 digital inputs and 4 digital outputs, and runs from a 100 to 240 VAC supply.

Storage and expansion are flexible, with two 2.5-inch SATA SSD slots, three M.2 NVMe sockets with RAID 0/1 support, and PCIe Gen 4 slots for add-on cards. HDMI 2.0b and DisplayPort 1.2 outputs, TPM 2.0, a hardware watchdog timer and a built-in RTC round out the platform, which is rated for -30 to 60°C operation without a graphics card.

Features

- Wide -30 to 60°C operating range for harsh industrial environments (without graphics card)
- 13th Gen Intel Core TE processor for efficient industrial computing
- 10 software-selectable RS-232/422/485 serial ports for dense legacy device connectivity
- Mixed 2.5 GbE and 1 GbE LAN ports for flexible network design
- SATA SSD and NVMe M.2 storage with RAID 0/1 support
- PCIe Gen 4 slots for add-on cards such as a graphics card
- TPM 2.0, hardware watchdog timer and RTC for secure, reliable operation
- Standard 2U rack-mount form factor with built-in AC power inlet

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i5-13500TE with Intel Q670E chipset
- Memory: 8 GB DDR4 pre-installed, 2 x SODIMM slots, up to 64 GB
- Serial: 10 x RS-232/422/485 software selectable, DB9 male, 50 bps to 115.2 kbps
- LAN: 2 x 10/100/1000 Mbps and 2 x 10/100/1000/2500 Mbps (RJ45)
- Digital I/O: 4 x DI (dry contact), 4 x DO (sink type, 200 mA per channel, 0 to 24 VDC)
- USB: 3 x external USB 3.0, 1 x internal USB 3.0
- Video: HDMI 2.0b and DisplayPort 1.2, Intel UHD Graphics 770
- Storage: 2 x 2.5-inch SATA SSD, 1 x M.2 2280 NVMe, 2 x M.2 2242 NVMe
- Expansion: PCIe x16, x8 and x1 (Gen 4)
- Audio: Mic-in and Line-out, 3.5 mm jacks
- Security: TPM v2.0
- Power: 100 to 240 VAC, IEC 60320 C16 inlet, 90 W without graphics card
- Operating temperature: -30 to 60°C without graphics card
- Dimensions: 440 x 360 x 88.1 mm, 9,196 g
- Mounting: standard 2U rack mount, metal housing, IP20
- MTBF: 993,182 hours

FAQs

Q: What serial interfaces does the RKP-C220-C5-8C-T provide?
A: It provides 10 DB9 male serial ports, each software selectable between RS-232, RS-422, RS-485 2-wire and RS-485 4-wire, with baud rates from 50 bps to 115.2 kbps.

Q: What operating systems are supported?
A: OS images are available for Windows 10 IoT Enterprise LTSC 2021, Windows 11 IoT Enterprise LTSC 2024 and Windows 11 Professional. Drivers also cover Windows Server 2022, Debian 12, Ubuntu 22.04 LTS and RHEL 9.0.

Q: How much memory does it ship with and what is the maximum?
A: It includes 8 GB DDR4 pre-installed and has 2 SODIMM slots supporting up to 64 GB.

Q: What power input does this model use?
A: It runs from a 100 to 240 VAC supply via an IEC 60320 C16 inlet, with power consumption of 90 W without a graphics card.

Q: Can I add a graphics card or other expansion cards?
A: Yes. It has PCIe Gen 4 x16, x8 and x1 slots. Note the -30 to 60°C operating range applies to configurations without a graphics card.

Q: What storage options are available?
A: Two 2.5-inch SATA SSD slots with RAID 0/1 support, one M.2 2280 NVMe socket, and two M.2 2242 NVMe sockets with RAID 0/1 support.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
