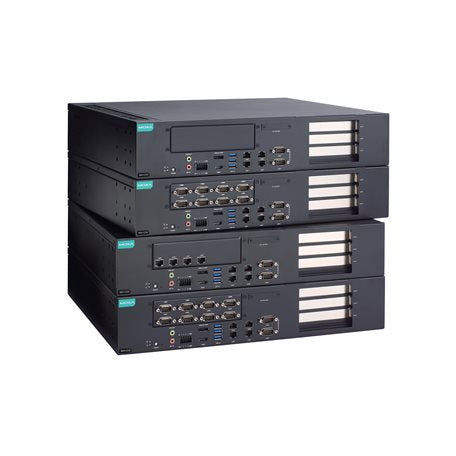

Moxa RKP-C220-C5-4L-T | RKP-C220 2U Rackmount Industrial Computer, Core i5-13500TE, 8 LAN

Authorised Moxa Partner

SKU:RKP-C220-C5-4L-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa RKP-C220-C5-4L-T is a fanless 2U rackmount industrial computer built on an Intel Core i5-13500TE processor and Q670E chipset. This model provides 8 Ethernet ports (6 x GbE and 2 x 2.5GbE), 2 software-selectable RS-232/422/485 serial ports, 8 GB of pre-installed DDR4 memory and a 100 to 240 VAC power input, making it well suited to edge computing, machine vision, data acquisition and industrial automation deployments.

Expansion is a strength of the RKP-C220 platform, with three PCIe Gen 4 slots including a x16 slot for a GPU card, two lockable 2.5-inch SATA SSD bays and three M.2 M Key slots supporting Intel RST RAID 0/1. It operates from -30 to 60°C without a graphics card and includes TPM 2.0, HDMI 2.0b and DisplayPort 1.2 outputs, and digital I/O.

Features

- 13th Gen Intel Core Raptor Lake-S processor with Intel Q670E chipset
- Fanless 2U rackmount design for quiet, reliable operation
- Supports an NVIDIA RTX Series FLFH GPU card up to 200 W TDP
- Three PCIe Gen 4 expansion slots, including x16 for GPU support
- Two lockable 2.5-inch SATA SSD slots and three M.2 M Key slots with Intel RST RAID 0/1
- Eight Ethernet ports including two 2.5GbE for high-bandwidth connectivity
- All interfaces on one side for easy access, with external RTC battery slot
- Built-in TPM 2.0 module for hardware-based security
- Wide -30 to 60°C operating range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Core i5-13500TE, Intel Q670E chipset
- Memory: 8 GB DDR4 pre-installed, 2 x SODIMM slots, up to 64 GB
- Ethernet: 6 x 10/100/1000 Mbps RJ45 and 2 x 10/100/1000/2500 Mbps RJ45
- Serial: 2 x RS-232/422/485 software selectable, DB9 male
- USB: 3 x USB 3.0 external (type-A), 1 x USB 3.0 internal
- Video: 1 x HDMI 2.0b and 1 x DisplayPort 1.2, Intel UHD Graphics 770
- Expansion: PCIe Gen 4 x16, x8 (4-lane) and x1 slots
- Storage: 2 x 2.5-inch SATA SSD (RAID 0/1), 1 x M.2 2280 and 2 x M.2 2242 M Key (NVMe)
- Digital I/O: 4 x DI and 4 x DO (sink, 200 mA per channel, 0 to 24 VDC)
- Audio: 1 x Mic-in and 1 x Line-out (3.5 mm)
- Security: TPM v2.0
- Power: 100 to 240 VAC, 90 W without graphics card, IEC 60320 C16 inlet
- Operating temperature: -30 to 60°C without graphics card, fanless
- Dimensions: 440 x 360 x 88.1 mm, weight 8,914 g, standard 2U rackmount
- Supported OS: Windows 10 IoT Enterprise LTSC 2021, Windows 11 IoT Enterprise LTSC 2024, Windows 11 Professional (64-bit), Linux drivers for Debian 12, Ubuntu 22.04 LTS, RHEL 9.0

FAQs

Q: Can the RKP-C220-C5-4L-T take a GPU card?
A: Yes. The PCIe Gen 4 x16 slot supports an NVIDIA RTX Series full-length, full-height GPU card up to 200 W TDP. The -30 to 60°C operating rating applies without a graphics card installed.

Q: How many network ports does this model have?
A: It has 8 RJ45 Ethernet ports: 6 x 10/100/1000 Mbps and 2 x 10/100/1000/2500 Mbps.

Q: How much memory does it include and what is the maximum?
A: It ships with 8 GB of DDR4 and has 2 SODIMM slots that support up to 64 GB.

Q: What storage options are supported?
A: Two lockable 2.5-inch SATA SSD slots and three M.2 M Key NVMe slots (one 2280 and two 2242). Two sets of Intel RST RAID 0/1 are supported.

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021, Windows 11 IoT Enterprise LTSC 2024 and Windows 11 Professional (64-bit), with Linux drivers for Debian 12, Ubuntu 22.04 LTS and RHEL 9.0.

Q: What power input does it use?
A: It accepts 100 to 240 VAC via an IEC 60320 C16 inlet and draws 90 W without a graphics card.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
