Moxa RKP-C220-C5-2CB6C-T | RKP-C220 2U Rackmount Industrial PC, Core i5-13500TE, 8GB, 4 LAN, 8 Serial, 2

Authorised Moxa Partner

SKU:RKP-C220-C5-2CB6C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

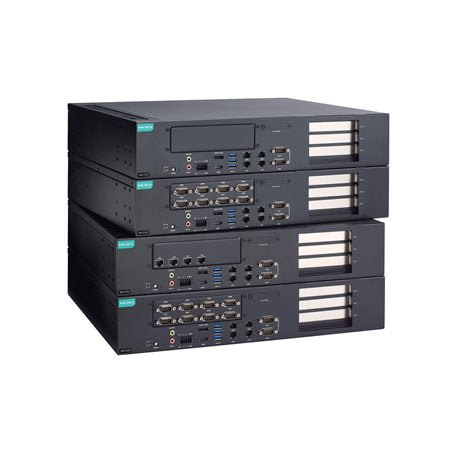

The Moxa RKP-C220-C5-2CB6C-T is a fanless 2U rackmount industrial PC built on a 13th Gen Intel Core i5-13500TE processor and Intel Q670E chipset. This variant ships with 8GB DDR4 pre-installed and combines 4 LAN ports, 8 serial ports and 2 CAN ports, making it well suited to edge computing and OT deployments that need dense device connectivity in a rack.

Three PCIe slots (x16 with GPU support, x8 and x1) allow expansion, including an NVIDIA RTX full-height, full-length GPU up to 200 W TDP. Storage options include lockable 2.5-inch SATA SSD bays and M.2 SSD slots with Intel RST RAID 0/1 support, and the unit accepts 100 to 240 VAC input and operates from -30 to 60°C without a graphics card.

Features

- Fanless 2U rackmount design for rugged industrial workloads
- Supports Intel RST RAID 0/1 with SATA and M.2 SSDs
- Expandable via 3 PCIe slots with GPU card support
- Wide operating temperature range of -30 to 60°C
- Rich connectivity with 4 LAN, 8 serial and 2 CAN ports

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Core i5-13500TE processor (Raptor Lake-S, 13th Gen)
- Intel Q670E chipset
- 2 x SODIMM DDR4 slots, up to 64 GB; 8 GB DDR4 pre-installed
- 4 x LAN ports
- 8 x serial ports
- 2 x CAN ports
- 3 PCIe slots: x16 (GPU support), x8 (4-lane), x1
- Supports NVIDIA RTX FLFH GPU up to 200 W TDP
- 2 x lockable 2.5" SATA SSD slots
- M.2 M Key SSD slots (2 x M.2 2242 and 1 x M.2 2280)
- 100 to 240 VAC power input
- Operating temperature -30 to 60°C (without graphics card)
- 2U rackmount, fanless design

FAQs

Q: Can the RKP-C220-C5-2CB6C-T support a GPU?
A: Yes. The PCIe x16 slot supports an NVIDIA RTX full-height, full-length GPU up to 200 W TDP. The -30 to 60°C operating range applies to the unit without a graphics card.

Q: How much memory does this model include and what is the maximum?
A: This model includes 8 GB DDR4 pre-installed in one of its 2 SODIMM slots, with support for up to 64 GB in total.

Q: What interfaces does this variant provide?
A: It provides 4 LAN ports, 8 serial ports and 2 CAN ports, which suits it to industrial automation and edge gateway applications.

Q: Does it support RAID?
A: Yes. Intel RST RAID 0 and 1 are supported using the SATA and M.2 SSD storage options.

Q: What power input does it accept?
A: It accepts 100 to 240 VAC input.

Q: Does it need fans for cooling?
A: No. The RKP-C220 series uses a fanless design, which reduces maintenance in dusty or demanding industrial environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
