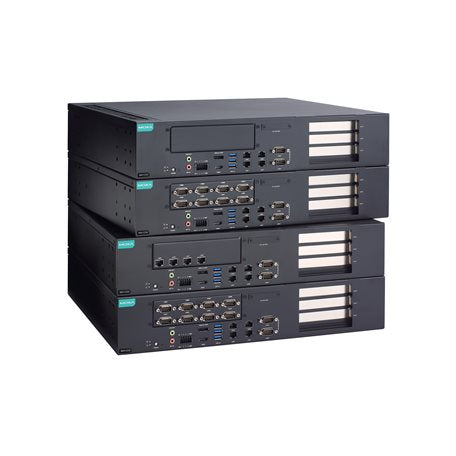

Moxa RKP-C220-C3-T | RKP-C220 2U Fanless Industrial PC, Core i3-13100TE, 8GB

Authorised Moxa Partner

SKU:RKP-C220-C3-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa RKP-C220-C3-T is a fanless 2U rackmount industrial PC built on a 13th Gen Intel Core i3-13100TE processor and Intel Q670E chipset. This configuration ships with 8 GB of DDR4 memory, 4 x Gigabit LAN and 2 x software-selectable RS-232/422/485 serial ports, with no CAN ports. The -T model is rated for an extended operating temperature range of -30 to 60°C.

For demanding edge and machine-vision workloads, the RKP-C220 platform offers three PCIe expansion slots, including an x16 slot that supports a full-length, full-height NVIDIA RTX GPU up to 200 W TDP. Storage is flexible, with two lockable 2.5" SATA SSD slots and three M.2 M key slots supporting Intel RST RAID 0/1.

Features

- Fanless 2U rackmount design for reliable operation in harsh environments
- Supports NVIDIA RTX Series FLFH GPU card up to 200 W TDP
- Two lockable 2.5" SATA SSD slots and three extendable M.2 M key SSD slots supporting two sets of Intel RST RAID 0/1
- Moxa in-house IC design for software-selectable RS-232/422/485 serial ports
- Wide -30 to 60°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i3-13100TE (13th Gen Raptor Lake-S)
- Chipset: Intel Q670E
- Memory: 8 GB DDR4 pre-installed, 2 x SODIMM DDR4 slots, up to 64 GB
- Storage: 2 x 2.5" SATA III SSD slots (RAID 0/1), 1 x M.2 M Key 2280 (PCIe/NVMe), 2 x M.2 M Key 2242
- LAN: 4 x Gigabit Ethernet
- Serial: 2 x software-selectable RS-232/422/485 (DB9 male)
- USB: 3 x USB 3.0
- Expansion: 3 PCIe slots (x16 with GPU support, x8 (4-lane), x1)
- GPU support: NVIDIA RTX FLFH up to 200 W TDP
- Power input: 100 to 240 VAC
- Operating temperature: -30 to 60°C
- Form factor: 2U rackmount, fanless

FAQs

Q: Does the RKP-C220-C3-T support a GPU card?
A: Yes. The x16 PCIe slot supports an NVIDIA RTX Series full-length, full-height GPU card up to 200 W TDP.

Q: How much memory can be installed?
A: It ships with 8 GB of DDR4 and has two SODIMM DDR4 slots supporting up to 64 GB.

Q: What serial interfaces are provided?
A: Two DB9 male serial ports, each software-selectable between RS-232, RS-422 and RS-485.

Q: Does this model include CAN ports?
A: No. This variant has 4 x Gigabit LAN and 2 x serial ports with no CAN ports.

Q: What operating temperature range is supported?
A: The -T model operates from -30 to 60°C.

Q: Can the storage be configured in RAID?
A: Yes. The 2.5" SATA SSD slots and M.2 M key slots support Intel RST RAID 0/1.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
