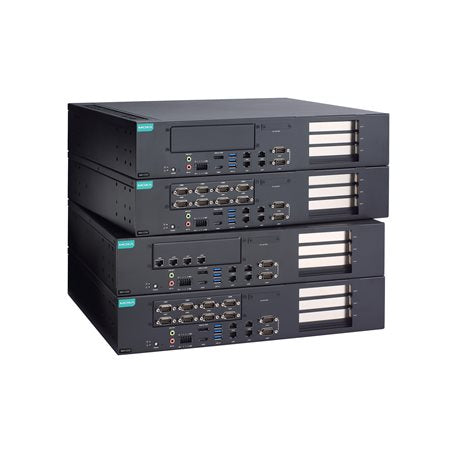

Moxa RKP-C220-C3-8C-T | RKP-C220 2U Fanless Rackmount Industrial PC, Core i3-13100TE, 8GB

Authorised Moxa Partner

SKU:RKP-C220-C3-8C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The RKP-C220-C3-8C-T is a fanless 2U rackmount industrial computer built on a 13th Gen Intel Core i3-13100TE processor and Intel Q670E chipset. This 8C model provides 4 LAN ports, 10 software-selectable RS-232/422/485 serial ports, 4 digital inputs and 4 digital outputs, with 8 GB DDR4 pre-installed and a 12/24 VDC power input, making it well suited to industrial automation and field-connected rack deployments.

Expansion is catered for with 3 PCIe slots, including an x16 slot with support for an NVIDIA RTX Series full-height, full-length GPU card up to 200 W TDP. Storage options include two lockable 2.5-inch SATA SSD slots and three M.2 M Key slots, with Intel RST RAID 0/1 support. Two SODIMM sockets accept up to 64 GB of DDR4 memory, and the fanless design supports operation from -30 to 60°C without a graphics card.

Features

- 13th Gen Intel Core Raptor Lake-S processor with Intel Q670E chipset
- Fanless 2U rackmount design for reliable industrial operation
- Supports NVIDIA RTX Series FLFH GPU card up to 200 W TDP
- 2 SODIMM sockets support up to 64 GB of DDR4 memory
- 3 PCIe slots for expansion modules
- 2 lockable 2.5-inch SATA SSD slots and 3 extendable M.2 M Key slots for 2 sets of Intel RST RAID 0/1
- Serial ports use Moxa in-house IC design
- Wide -30 to 60°C operating temperature range
- Optional fan module available to extend the operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Core i3-13100TE
- Chipset: Intel Q670E
- Memory: 8 GB DDR4 pre-installed, 2 x SODIMM slots, up to 64 GB
- LAN ports: 4
- Serial ports: 10 x software-selectable RS-232/422/485
- Digital I/O: 4 x DI, 4 x DO
- USB: 3 x USB 3.0
- Video: 1 x VGA, 1 x HDMI
- Storage: 2 x 2.5-inch SATA SSD slots (RAID 0/1), 1 x M.2 M Key 2280 (PCIe, NVMe), 2 x M.2 M Key 2242
- Expansion: 3 PCIe slots (x16 with GPU support, x8 (4-lane), x1)
- Power input: 12/24 VDC
- Form factor: 2U rackmount, fanless
- Operating temperature: -30 to 60°C (without graphics card)
- Storage temperature: -40 to 70°C
- Humidity: 5 to 95% non-condensing
- MTBF: 993,182 hrs

FAQs

Q: How many serial and LAN ports does the RKP-C220-C3-8C-T have?
A: It provides 10 software-selectable RS-232/422/485 serial ports and 4 LAN ports, along with 4 digital inputs and 4 digital outputs.

Q: What power input does this model use?
A: This model uses a 12/24 VDC power input.

Q: Can I install a GPU in this industrial PC?
A: Yes. The x16 PCIe slot supports an NVIDIA RTX Series full-height, full-length GPU card up to 200 W TDP. The operating temperature range quoted is without a graphics card installed.

Q: How much memory can be installed?
A: It ships with 8 GB DDR4 and has 2 SODIMM DDR4 slots supporting up to 64 GB.

Q: What storage options are available?
A: There are two lockable 2.5-inch SATA SSD slots, one M.2 M Key 2280 socket (PCIe, NVMe) and two M.2 M Key 2242 slots, with Intel RST RAID 0/1 support.

Q: Is the system fanless?
A: Yes, the RKP-C220 is a fanless 2U rackmount design. An optional fan module is available to increase the operating temperature range.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
