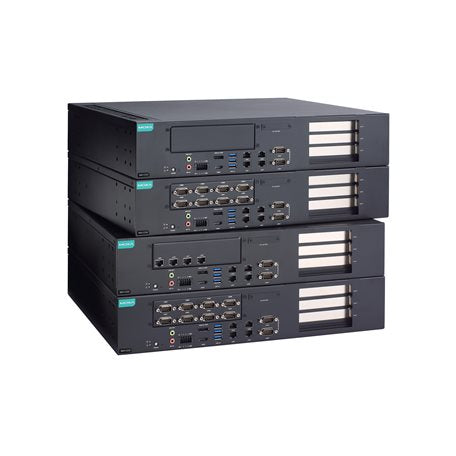

Moxa RKP-C220-C3-4L-T | RKP-C220 Rackmount Industrial PC, Core i3-13100TE, 8GB, 8 LAN

Authorised Moxa Partner

SKU:RKP-C220-C3-4L-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa RKP-C220-C3-4L-T is a fanless 2U rackmount industrial PC built on a 13th Gen Intel Core i3-13100TE processor with the Intel Q670E chipset. This configuration ships with 8 GB of DDR4 memory, 8 LAN ports (six Gigabit and two 2.5 Gigabit RJ45) and 2 software-selectable RS-232/422/485 serial ports, with no CAN interface. It suits industrial automation, edge computing and machine vision deployments that need high network port density in a standard 2U rack footprint.

Expansion is a strength of the RKP-C220 series, with a PCIe x16 Gen 4 slot for full-length GPU cards, a x8 and a x1 Gen 4 slot, two lockable 2.5-inch SATA SSD bays with RAID 0/1, and three M.2 slots. It operates from -30 to 60 C without a graphics card, takes 100-240 VAC input, and includes TPM 2.0 for platform security. Supported operating systems include Windows 10 IoT Enterprise LTSC, Windows 11 IoT Enterprise LTSC and Windows 11 Professional, with Linux drivers for Debian, Ubuntu and RHEL.

Features

- Fanless 2U rackmount design with 13th Gen Intel Core processor and Q670E chipset
- Supports NVIDIA RTX series FLFH GPU cards up to 200 W TDP via the PCIe x16 slot
- Up to 64 GB memory via 2 SODIMM sockets
- Two lockable 2.5-inch SATA SSD slots and M.2 slots supporting two sets of Intel RST RAID 0/1
- Wide -30 to 60 C operating temperature range
- All interfaces on one side for easy rack cabling, with an external RTC battery slot for simple replacement
- Built-in TPM 2.0 for hardware-based security
- Optional fan module to increase performance

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Core i3-13100TE (13th Gen Raptor Lake-S), Intel Q670E chipset
- 8 GB DDR4 pre-installed, 2 x SODIMM slots, up to 64 GB
- 8 x LAN: 6 x 10/100/1000 Mbps and 2 x 10/100/1000/2500 Mbps RJ45
- 2 x RS-232/422/485 serial ports (DB9 male), software selectable
- Storage: 2 x 2.5-inch SATA SSD slots, 1 x M.2 2280 and 2 x M.2 2242 slots
- Expansion: PCIe x16 Gen 4, PCIe x8 (4-lane) Gen 4, PCIe x1 Gen 4
- 3 x external USB 3.0 and 1 x internal USB 3.0
- HDMI 2.0b and DisplayPort 1.2 video outputs, Intel UHD Graphics 730
- 4 x digital input, 4 x digital output
- Audio: 1 x mic-in, 1 x line-out (3.5 mm)
- TPM 2.0
- 100-240 VAC input, 90 W power consumption (without graphics card)
- Operating temperature -30 to 60 C (without graphics card), fanless
- Dimensions 440 x 360 x 88.1 mm, 2U rack mounting, weight 8,914 g
- IP20 metal housing, MTBF 1,101,194 hrs (Telcordia)

FAQs

Q: Does the RKP-C220-C3-4L-T support a GPU card?
A: Yes. The PCIe x16 Gen 4 slot supports NVIDIA RTX series full-length, full-height GPU cards up to 200 W TDP. Operating temperature and power consumption figures are quoted without a graphics card installed.

Q: How many network and serial ports does this model have?
A: It has 8 LAN ports (six 10/100/1000 Mbps and two 10/100/1000/2500 Mbps RJ45) and 2 RS-232/422/485 serial ports on DB9 connectors. This variant has no CAN interface.

Q: How much memory is installed and what is the maximum?
A: It ships with 8 GB of DDR4 and has two SODIMM slots supporting up to 64 GB.

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021, Windows 11 IoT Enterprise LTSC 2024 and Windows 11 Professional (64-bit) are supported, along with Linux drivers for Debian 12, Ubuntu 22.04 and RHEL 9.0.

Q: What storage options and RAID support are available?
A: There are two 2.5-inch SATA SSD slots with RAID 0/1 support, one M.2 2280 NVMe slot and two M.2 2242 NVMe slots with RAID 0/1 support.

Q: What power input does this model use?
A: It accepts 100-240 VAC through an IEC 60320 C16 inlet and draws 90 W without a graphics card.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
