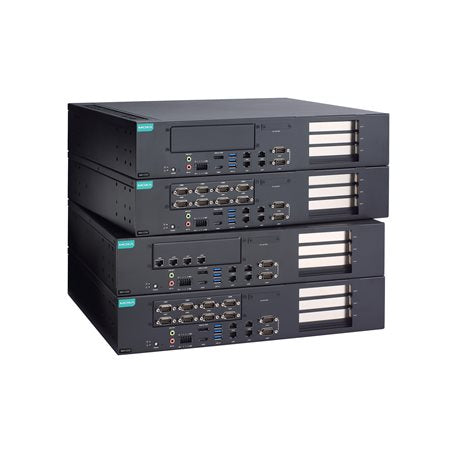

Moxa RKP-C220-C3-2CB6C-T | RKP-C220 2U Industrial PC, Core i3-13100TE, 8x Serial, 4x LAN, 2x CAN

Authorised Moxa Partner

SKU:RKP-C220-C3-2CB6C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa RKP-C220-C3-2CB6C-T is a fanless 2U rackmount industrial PC built on a 13th Gen Intel Core i3-13100TE (Raptor Lake-S) processor and Intel Q670E chipset. It combines 8 software-selectable RS-232/422/485 serial ports, 4 Gigabit Ethernet LAN ports and 2 CAN ports, making it well suited to industrial automation, machine control and data acquisition deployments that need dense legacy and fieldbus connectivity in a rack.

Three PCIe expansion slots support add-in modules, including an NVIDIA RTX Series FLFH GPU card up to 200 W TDP. Flexible storage options cover lockable 2.5 inch SATA SSD bays and extendable M.2 NVMe slots with Intel RST RAID 0/1, and the unit operates across a wide -30 to 60°C range. It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 IoT Enterprise LTSC 2024 and Windows 11 Professional (64-bit).

Features

- Fanless 2U rackmount design
- 13th Gen Intel Core Raptor Lake-S processor with Intel Q670E chipset
- Supports NVIDIA RTX Series FLFH GPU card up to 200 W TDP
- 3 PCIe slots for expansion modules
- 2 lockable 2.5 inch SATA SSD slots and 3 extendable M.2 M Key SSD slots supporting 2 sets of Intel RST RAID 0/1
- Wide -30 to 60°C operating temperature range
- Software-selectable RS-232/422/485 serial ports using Moxa in-house IC design

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: 13th Gen Intel Core i3-13100TE (Raptor Lake-S)
- Chipset: Intel Q670E
- Memory: 2 x DDR4 SODIMM slots, up to 64 GB; 8 GB DDR4 pre-installed
- Graphics: Intel UHD Graphics 730
- Serial: 8 x RS-232/422/485 software-selectable (DB9 male)
- LAN: 4 x Gigabit Ethernet
- CAN: 2 x CAN ports
- USB: 3 x USB 3.0 Type-A external, 1 x USB 3.0 Type-A internal
- Digital I/O: 4 x DI, 4 x DO
- Video: 1 x HDMI 2.0b, 1 x DisplayPort
- Expansion: PCIe x16 (Gen 4), PCIe x8 (4-lane, Gen 4), PCIe x1 (Gen 4)
- Storage: 2 x lockable 2.5 inch SATA III SSD slots (RAID 0/1), 1 x M.2 M Key 2280 (NVMe), 2 x M.2 M Key 2242 (NVMe, RAID 0/1)
- Operating temperature: -30 to 60°C
- IP rating: IP20

FAQs

Q: How many serial and CAN ports does the RKP-C220-C3-2CB6C-T have?
A: It provides 8 software-selectable RS-232/422/485 serial ports on DB9 male connectors and 2 CAN ports, alongside 4 Gigabit Ethernet LAN ports.

Q: Which processor does this model use?
A: This variant uses a 13th Gen Intel Core i3-13100TE (Raptor Lake-S) processor with the Intel Q670E chipset.

Q: Can I install a GPU card in this industrial PC?
A: Yes. The three PCIe expansion slots support an NVIDIA RTX Series FLFH GPU card up to 200 W TDP.

Q: What storage options are supported?
A: It has 2 lockable 2.5 inch SATA III SSD slots and 3 M.2 M Key NVMe slots, with Intel RST RAID 0/1 supported on two sets of drives.

Q: How much memory does it support?
A: It has 2 DDR4 SODIMM slots supporting up to 64 GB, with 8 GB DDR4 pre-installed.

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021, Windows 11 IoT Enterprise LTSC 2024 and Windows 11 Professional (64-bit) are supported.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
