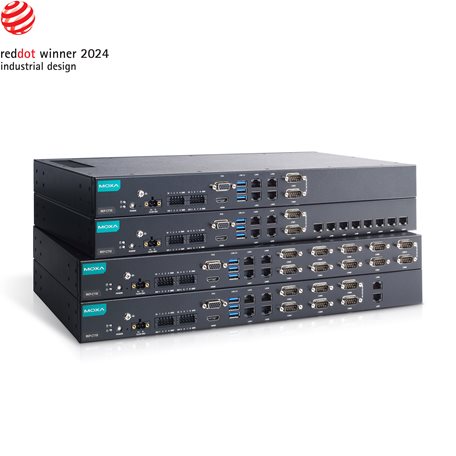

Moxa RKP-C110-C5-2HV-T | RKP-C110 1U Rackmount Industrial PC, Core i5, 8GB, 4 LAN

Authorised Moxa Partner

SKU:RKP-C110-C5-2HV-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa RKP-C110-C5-2HV-T is a fanless 1U rackmount industrial computer built on an 11th Gen Intel Core i5-1145G7E processor with 8 GB of DDR4 memory. It provides 4 Gigabit LAN ports, 2 software-selectable RS-232/422/485 serial ports and 8 digital inputs and 8 digital outputs, making it well suited to industrial automation, data acquisition and edge computing deployments in control cabinets and equipment racks.

This 2HV-T variant takes a dual 100 to 240 VAC/VDC power input and operates across a -30 to 60°C temperature range. Dual 2.5-inch SATA III SSD bays with RAID 0/1 support, HDMI 2.0b and VGA video outputs, three USB 3.0 ports and TPM 2.0 round out the platform, with support for Windows 10 and 11 IoT Enterprise as well as Debian, Ubuntu and RHEL Linux.

Features

- Fanless 1U rackmount design for quiet, reliable operation
- 11th Gen Intel Core Tiger Lake processor
- Unified front-panel connectivity for easy access to interfaces
- Wide -30 to 60°C operating temperature range
- Dual 100 to 240 VAC/VDC power input for redundancy
- RAID 0/1 support across two 2.5-inch SATA SSD bays
- Supports Windows 10/11 IoT Enterprise LTSC and Linux distributions

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i5-1145G7E, quad core, 8M cache, 2.60 GHz, base 1.50 GHz
- Memory: 8 GB DDR4 pre-installed, 1 x SODIMM DDR4 slot, up to 32 GB
- Storage: 2 x 2.5-inch SATA III SSD slots with RAID 0/1 support
- LAN: 4 x 10/100/1000 Mbps RJ45
- Serial: 2 x RS-232/422/485 (DB9 male), software selectable
- USB: 3 x USB 3.0 type-A
- Digital I/O: 8 DIs, 8 DOs
- Video: 1 x VGA, 1 x HDMI 2.0b
- Security: TPM v2.0
- Power input: dual 100 to 240 VAC/VDC, screw-fastened Euroblock terminal
- Power consumption: 90 W
- Operating temperature: -30 to 60°C
- Form factor: standard 1U rack mount
- Weight: 5,616 g (12.38 lb)

FAQs

Q: What processor and memory does the RKP-C110-C5-2HV-T include?
A: It is built on an Intel Core i5-1145G7E processor with 8 GB of DDR4 pre-installed. The single SODIMM slot supports up to 32 GB.

Q: What does the 2HV-T suffix mean?
A: 2HV-T indicates a dual 100 to 240 VAC/VDC power input model with a wide operating temperature range of -30 to 60°C.

Q: Which operating systems are supported?
A: Supported operating systems include Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021 and Windows 11 Professional, plus a Debian 11 image and Linux drivers for Debian 12, Ubuntu 22.04 and RHEL 9.

Q: How many network and serial ports does it have?
A: It has 4 x 10/100/1000 Mbps RJ45 LAN ports and 2 x software-selectable RS-232/422/485 serial ports on DB9 connectors.

Q: Does it support RAID storage?
A: Yes. It has two 2.5-inch SATA III SSD slots with RAID 0 and RAID 1 support.

Q: Is it fanless and rack mountable?
A: Yes. It uses a fanless design in a standard 1U rackmount form factor.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
