Moxa RKP-C110-C3-T-Win10 | RKP-C110 1U Industrial PC, Core i3, 4x LAN, Win10, -30 to 60C

Authorised Moxa Partner

SKU:RKP-C110-C3-T-Win10

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

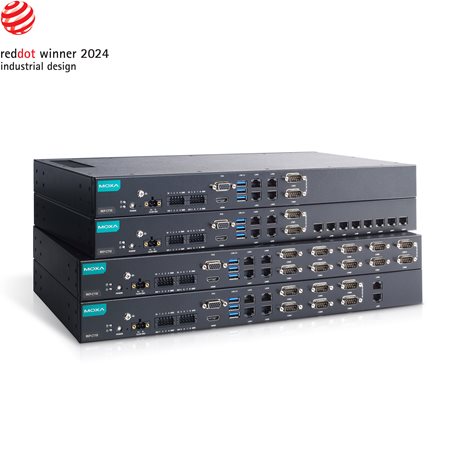

The Moxa RKP-C110-C3-T-Win10 is a 1U rackmount industrial computer built on an 11th-gen Intel Core i3-1115G4E processor with Iris Xe graphics, supplied with Windows 10 IoT Enterprise LTSC pre-installed. It combines 4 Gigabit LAN ports, 2 software-selectable RS-232/422/485 serial ports and 8 digital inputs and 8 digital outputs, with 12/24 VDC power input and an operating range of -30 to 60°C, making it suited to substation, rail, and factory automation deployments.

The system ships with 8 GB of DDR4 memory, expandable to 32 GB through the SODIMM slot, and provides two 2.5-inch SATA III SSD bays with RAID 0/1 support. HDMI 2.0b and VGA outputs, three USB 3.0 ports, TPM v2.0, a built-in watchdog timer and a real-time clock round out a standard 1U rack-mount platform that fits neatly into existing cabinets.

Features

- 11th-gen Intel Core i3-1115G4E processor with Iris Xe graphics
- Wide -30 to 60°C operating temperature range
- Standard 1U rack-mount form factor
- Dual 2.5-inch SATA SSD bays with RAID 0/1
- 8 digital inputs and 8 digital outputs for I/O integration
- Software-selectable RS-232/422/485 serial ports
- Four Gigabit LAN ports for segmented or redundant networks
- TPM v2.0 for hardware-based security
- Built-in watchdog timer and real-time clock
- 12/24 VDC power input
- Windows 10 IoT Enterprise LTSC pre-installed

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Core i3-1115G4E, quad core, 4M cache, up to 3 GHz, base 2.20 GHz
- Intel Iris Xe Graphics
- 8 GB DDR4 pre-installed, 1 x SODIMM slot, up to 32 GB
- Windows 10 IoT Enterprise LTSC pre-installed
- 4 x 10/100/1000 Mbps RJ45 LAN ports with 1.5 kV magnetic isolation
- 2 x RS-232/422/485 serial ports, software selectable, DB9 male
- 8 x digital inputs, 8 x digital outputs
- 3 x USB 3.0 Type-A
- HDMI 2.0b x 1 and VGA x 1
- 2 x 2.5-inch SATA III SSD slots, RAID 0/1
- TPM v2.0
- Input voltage 12/24 VDC via screw-fastened Euroblock terminal, 90 W
- Operating temperature -30 to 60°C, storage temperature -40 to 75°C
- Humidity 5 to 95% non-condensing
- Standard 1U rack mounting, 440 x 230 x 43.6 mm, 3,350 g
- Metal housing, IP20
- Built-in RTC and watchdog timer

FAQs

Q: What operating system is pre-installed on this model?
A: This SKU ships with Windows 10 IoT Enterprise LTSC pre-installed on the Intel Core i3-1115G4E platform.

Q: How much memory does it include and can it be expanded?
A: It includes 8 GB of DDR4 memory in one SODIMM slot, which supports up to 32 GB.

Q: What serial and I/O interfaces does it provide?
A: It has 2 software-selectable RS-232/422/485 serial ports (DB9 male), 8 digital inputs, 8 digital outputs, 4 Gigabit LAN ports and 3 USB 3.0 ports.

Q: What storage options and RAID support are available?
A: The unit has two 2.5-inch SATA III SSD bays that support RAID 0 and RAID 1.

Q: What power input does it need?
A: It accepts a 12/24 VDC input through a screw-fastened Euroblock terminal, with power consumption of 90 W.

Q: Can it run in extreme temperatures?
A: Yes. It is rated for operation from -30 to 60°C, making it suitable for harsh industrial environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
