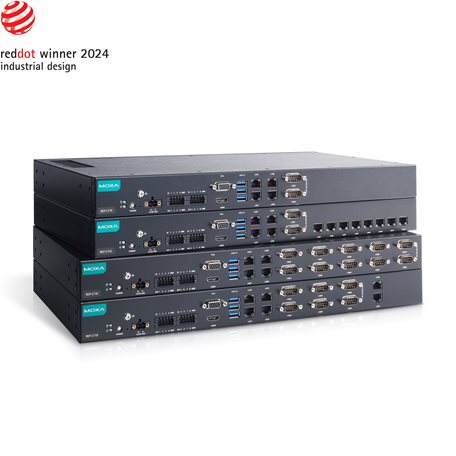

Moxa RKP-C110-C3-T | RKP-C110 1U Rackmount Computer, Core i3, 4 LAN, 8 DI/8 DO

Authorised Moxa Partner

SKU:RKP-C110-C3-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The RKP-C110-C3-T is a 1U rackmount industrial computer built around an Intel Core i3-1115G4E processor, with 4 Gigabit LAN ports, 2 software-selectable serial ports and 8 digital inputs plus 8 digital outputs. It runs from a 12/24 VDC supply across a -30 to 60°C operating range, making it a good fit for control cabinets, substations and factory-floor data collection where a compact, wide-temperature x86 platform is required.

Storage is handled by two 2.5-inch SATA III SSD bays with RAID 0/1 support, and the system ships with 8 GB DDR4 pre-installed, expandable to 32 GB through the SODIMM slot. Video output over HDMI 2.0b and VGA, three USB 3.0 ports and TPM v2.0 round out the platform, with support for Windows 10/11 IoT and Debian Linux images, plus Ubuntu and RHEL drivers.

Features

- Compact 1U rackmount design with 12/24 VDC input
- Intel 11th Gen Core i3 processor with Iris Xe graphics
- Dual 2.5-inch SATA SSD bays with RAID 0/1 support
- On-board 8 DI / 8 DO for I/O control
- TPM v2.0 for platform security
- Wide operating temperature range of -30 to 60°C
- Built-in watchdog timer and RTC with lithium battery backup
- 1.5 kV built-in magnetic isolation protection on Ethernet ports
- Windows 10/11 IoT and Debian Linux image support, plus Ubuntu and RHEL drivers

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i3-1115G4E (quad core, 4M cache, up to 3 GHz, base 2.20 GHz)
- Graphics: Intel Iris Xe Graphics
- Memory: 8 GB DDR4 pre-installed, 1 x SODIMM slot, up to 32 GB
- Storage: 2 x 2.5-inch SATA III SSD slots, RAID 0/1 support
- Ethernet: 4 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485 (DB9 male), software selectable, 50 bps to 115.2 kbps
- Digital I/O: 8 x DI (dry contact), 8 x DO (sink type, 200 mA per channel, 0 to 24 VDC)
- USB: 3 x USB 3.0 Type-A
- Video: 1 x HDMI 2.0b, 1 x VGA
- Security: TPM v2.0
- Power input: 12/24 VDC via screw-fastened Euroblock terminal, 90 W consumption
- Housing: metal, IP20, standard 1U rack mount
- Dimensions (W x D x H): 440 x 230 x 43.6 mm
- Weight: 3,350 g
- Operating temperature: -30 to 60°C
- Storage temperature: -40 to 75°C
- Humidity: 5 to 95% non-condensing
- MTBF: 493,336 hours

FAQs

Q: What processor and memory does the RKP-C110-C3-T include?
A: It uses an Intel Core i3-1115G4E quad-core processor (base 2.20 GHz, up to 3 GHz) and ships with 8 GB DDR4 pre-installed. The single SODIMM slot supports up to 32 GB.

Q: What power input does this computer use?
A: It is powered from 12/24 VDC through a screw-fastened Euroblock terminal, with a power consumption of 90 W.

Q: Can I configure the serial ports for RS-485?
A: Yes. Both DB9 serial ports are software selectable between RS-232, RS-422 and RS-485.

Q: How much storage can it hold and does it support RAID?
A: It has two 2.5-inch SATA III SSD slots with RAID 0 and RAID 1 support.

Q: What operating systems are supported?
A: Windows 10/11 IoT and Debian Linux images are supported, with drivers available for Ubuntu and RHEL.

Q: What operating temperature range does it support?
A: It operates from -30 to 60°C, in a metal IP20 housing designed for standard 1U rack mounting.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
