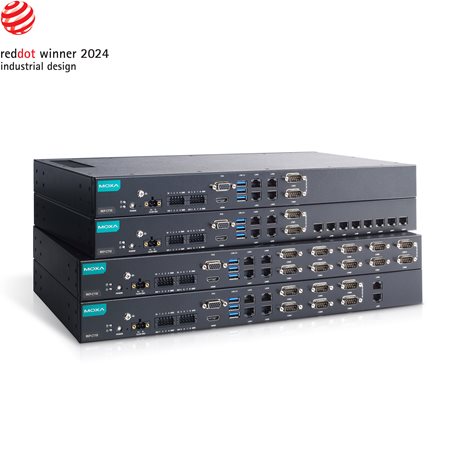

Moxa RKP-C110-C3-8L-T | RKP-C110 1U Industrial PC, Core i3, 8GB, 12x LAN, 2x Serial

Authorised Moxa Partner

SKU:RKP-C110-C3-8L-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa RKP-C110-C3-8L-T is a fanless 1U rackmount industrial computer built around an 11th Gen Intel Core i3-1115G4E processor with 8 GB of DDR4 memory pre-installed. It provides 12 Gigabit RJ45 LAN ports, 2 software-selectable RS-232/422/485 serial ports and 8 digital inputs and 8 digital outputs, making it well suited to network-dense and I/O-intensive deployments. The 12/24 VDC input and -30 to 60°C operating range support installation in demanding industrial environments.

Storage is handled by two 2.5-inch SATA III SSD slots with RAID 0/1 support, and the system includes 3 USB 3.0 ports, HDMI 2.0b and VGA video outputs, TPM v2.0 and a built-in watchdog timer. Supported operating systems include Windows 11 IoT Enterprise LTSC, Windows 10 IoT Enterprise LTSC and Debian Linux, with drivers available for Ubuntu and RHEL.

Features

- Fanless 1U rackmount design for quiet, reliable operation
- 11th Gen Intel Core i3 (Tiger Lake) processor with Iris Xe Graphics
- 12 Gigabit LAN ports for network-dense applications
- 2 software-selectable RS-232/422/485 serial ports for legacy device connectivity
- 8 DI and 8 DO for direct field I/O integration
- 12/24 VDC power input for industrial power systems
- Wide -30 to 60°C operating temperature range
- Unified front-panel connectivity for easy interface access
- Two hand-rotated 2.5-inch SSD bays with RAID 0/1 support
- Externally replaceable RTC battery and built-in watchdog timer

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i3-1115G4E, quad core, 4M cache, up to 3 GHz (base 2.20 GHz)
- Graphics: Intel Iris Xe Graphics
- Memory: 8 GB DDR4 pre-installed, 1 x SODIMM slot, up to 32 GB
- Storage: 2 x 2.5-inch SATA III SSD slots, RAID 0/1 support
- Ethernet: 12 x 10/100/1000 Mbps RJ45 ports with 1.5 kV magnetic isolation
- Serial: 2 x RS-232/422/485 (DB9 male), software selectable, 50 bps to 115.2 kbps
- Digital I/O: 8 x DI (dry contact), 8 x DO (sink type, 200 mA per channel, 0 to 24 VDC)
- USB: 3 x USB 3.0 type-A
- Video: 1 x HDMI 2.0b, 1 x VGA (15-pin D-sub)
- Security: TPM v2.0
- Power input: 12/24 VDC via screw-fastened Euroblock terminal, 90 W consumption
- Dimensions: 440 x 230 x 43.6 mm, weight 3,800 g
- Mounting: standard 1U rackmount, metal housing, IP20
- Operating temperature: -30 to 60°C, storage -40 to 75°C
- Humidity: 5 to 95% non-condensing
- Certifications: FCC Part 15B Class A, CISPR 32, EN 55032/35, IEC 62368-1, UL 62368-1, RoHS, CRoHS, WEEE
- MTBF: 493,336 hours

FAQs

Q: How many LAN ports does the RKP-C110-C3-8L-T have?
A: It has 12 auto-sensing 10/100/1000 Mbps RJ45 ports, each with built-in 1.5 kV magnetic isolation protection.

Q: What operating systems does it support?
A: Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021 and Windows 11 Professional are supported, along with a Debian 11 image. Debian 12, Ubuntu 22.04 LTS/HWE and RHEL 9 are supported with drivers, and Windows Server 2022 has driver support only.

Q: How much memory can be installed?
A: The unit ships with 8 GB DDR4 pre-installed in its single SODIMM slot, and the slot supports up to 32 GB.

Q: What power input does it require?
A: It runs from a 12/24 VDC supply connected through a screw-fastened Euroblock terminal, with power consumption of 90 W.

Q: Does it support RAID storage?
A: Yes. It has two 2.5-inch SATA III SSD slots that support RAID 0 and RAID 1.

Q: Can it operate in harsh temperatures?
A: Yes. The fanless design operates across -30 to 60°C with 5 to 95% non-condensing humidity.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
