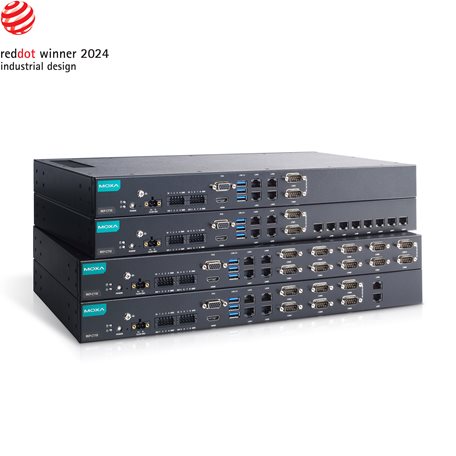

Moxa RKP-C110-C3-8C-T | RKP-C110 1U Rack Computer, Core i3, 10x Serial, 4x LAN

Authorised Moxa Partner

SKU:RKP-C110-C3-8C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa RKP-C110-C3-8C-T is a 1U rackmount industrial computer built on an Intel Core i3-1115G4E quad-core processor with Intel Iris Xe graphics. It combines 10 software-selectable RS-232/422/485 serial ports, 4 Gigabit LAN ports and 8 digital inputs and outputs, making it well suited to serial device integration, protocol gateways and edge data collection in industrial and infrastructure rack environments. It runs from a 12/24 VDC input and operates from -30 to 60°C.

The system ships with 8 GB of DDR4 memory, expandable to 32 GB through a single SODIMM slot, and provides two 2.5-inch SATA III SSD bays with RAID 0/1 support. TPM v2.0 is on board, and video is available over HDMI 2.0b and VGA. Windows 10/11 IoT and Debian Linux images are supported, with driver support for Ubuntu and RHEL, so it fits a range of industrial software stacks.

Features

- Compact 1U rackmount design for space-constrained racks and cabinets
- 11th Gen Intel Core i3 processor with Intel Iris Xe graphics
- 10 software-selectable RS-232/422/485 serial ports for legacy device connectivity
- Four Gigabit LAN ports for network segmentation or redundancy
- 8 DIs and 8 DOs on spring-type Euroblock terminals
- Two 2.5-inch SATA SSD bays with RAID 0/1 support
- TPM v2.0 on board for hardware-based security
- Wide -30 to 60°C operating temperature range
- Supports Windows 10/11 IoT and Debian Linux images
- 12/24 VDC power input suited to industrial power systems

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i3-1115G4E, quad core, up to 3 GHz (base 2.20 GHz), 4M cache
- Graphics: Intel Iris Xe Graphics
- Memory: 8 GB DDR4 pre-installed, 1 x SODIMM slot, up to 32 GB
- Storage: 2 x 2.5-inch SATA III SSD slots, RAID 0/1 support
- Ethernet: 4 x 10/100/1000 Mbps RJ45 ports with 1.5 kV magnetic isolation
- Serial: 10 x RS-232/422/485, software selectable, DB9 male, 50 bps to 115.2 kbps
- Digital I/O: 8 x DI (dry contact), 8 x DO (sink type, 200 mA per channel, 0 to 24 VDC)
- USB: 3 x USB 3.0 Type-A hosts
- Video: 1 x HDMI 2.0b, 1 x VGA
- Security: TPM v2.0
- Power: 12/24 VDC input via screw-fastened Euroblock terminal, 90 W
- Operating temperature: -30 to 60°C
- Storage temperature: -40 to 75°C
- Humidity: 5 to 95% non-condensing
- Dimensions (W x D x H): 440 x 230 x 43.6 mm
- Weight: 3,610 g
- Housing: Metal, IP20, standard 1U rack mounting
- Built-in RTC with lithium battery backup and watchdog timer
- Certifications: CISPR 32, FCC Part 15B Class A, EN 55032/35, IEC 62368-1, UL 62368-1, RoHS, CRoHS, WEEE

FAQs

Q: What serial interfaces does the RKP-C110-C3-8C-T support?
A: It provides 10 DB9 male serial ports, each software selectable between RS-232, RS-422 and RS-485, with baud rates from 50 bps to 115.2 kbps.

Q: How much memory and storage does it support?
A: It ships with 8 GB DDR4 and has one SODIMM slot supporting up to 32 GB. Storage is provided by two 2.5-inch SATA III SSD bays with RAID 0/1 support.

Q: Which operating systems are supported?
A: Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021 and Windows 11 Professional are supported, along with a Debian 11 Linux image. Driver support is also available for Debian 12, Ubuntu 22.04 LTS and RHEL 9.

Q: What power input does this model use?
A: It runs from a 12/24 VDC input through a screw-fastened Euroblock terminal, with a power consumption of 90 W.

Q: What digital I/O is built in?
A: It has 8 dry-contact digital inputs and 8 sink-type digital outputs rated at 200 mA per channel, 0 to 24 VDC, on spring-type Euroblock terminals.

Q: What is the operating temperature range?
A: The RKP-C110-C3-8C-T operates from -30 to 60°C, which suits demanding industrial and outdoor-cabinet environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
