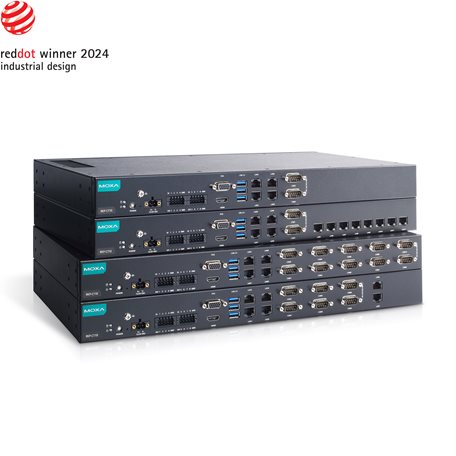

Moxa RKP-C110-C3-2L4C-T | RKP-C110 1U Rackmount Industrial PC, Core i3, 6x LAN, 6x Serial

Authorised Moxa Partner

SKU:RKP-C110-C3-2L4C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa RKP-C110-C3-2L4C-T is a fanless 1U rackmount industrial PC built on an 11th Gen Intel Core i3-1115G4E processor. It combines 6 Gigabit LAN ports with 6 software-selectable RS-232/422/485 serial ports on the front panel, making it well suited to industrial gateway, data acquisition and edge computing deployments that need dense network and serial connectivity. It runs from a 12/24 VDC supply and operates across a wide -30 to 60°C temperature range.

The unified front-panel layout puts the LAN, serial, USB, VGA and HDMI interfaces within easy reach in a standard rack. Eight digital inputs and eight digital outputs, two hand-rotated 2.5-inch SSD slots, built-in TPM 2.0 and an outer replaceable RTC battery round out the platform for reliable, serviceable long-term operation.

Features

- Fanless 1U rackmount design for quiet, dust-resistant operation
- 11th Gen Intel Core i3 processor for reliable industrial edge computing
- 6 Gigabit LAN ports for segmented or redundant network connections
- 6 software-selectable RS-232/422/485 serial ports for legacy device integration
- Wide -30 to 60°C operating temperature range
- Unified front-panel connectivity for easy access to all interfaces
- Outer replaceable RTC battery and hand-rotated SSD trays for simple servicing
- Built-in TPM 2.0 for hardware-based security

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Core i3-1115G4E, quad core, 4M cache, up to 3 GHz (base 2.20 GHz)
- LAN: 6 x 10/100/1000 Mbps RJ45 ports
- Serial: 6 x RS-232/422/485 ports, DB9 male
- Digital I/O: 8 digital inputs and 8 digital outputs (Euroblock terminal)
- USB: 3 x USB 3.0 ports
- Video: 1 x VGA and 1 x HDMI output
- Storage: 2 x hand-rotated 2.5-inch SSD slots
- Power input: 12/24 VDC
- Operating temperature: -30 to 60°C
- Security: built-in TPM 2.0
- Form factor: 1U standard rack mount, fanless design
- Weight: 3,540 g (7.80 lb)

FAQs

Q: What processor does the Moxa RKP-C110-C3-2L4C-T use?
A: It uses an 11th Gen Intel Core i3-1115G4E quad-core processor with 4M cache, a 2.20 GHz base clock and boost up to 3 GHz.

Q: How many LAN and serial ports does this model have?
A: This variant has 6 x 10/100/1000 Mbps RJ45 LAN ports and 6 x RS-232/422/485 serial ports (DB9 male), as indicated by the 2L4C configuration code.

Q: What power input does it support?
A: This model accepts a 12/24 VDC power input.

Q: Can it operate in harsh temperature environments?
A: Yes. It is fanless and rated for an operating temperature of -30 to 60°C, suitable for industrial cabinets and field installations.

Q: What storage options are available?
A: It provides two hand-rotated 2.5-inch SSD slots on the chassis for easy installation and replacement.

Q: Does it include digital I/O and TPM security?
A: Yes. It has 8 digital inputs and 8 digital outputs via an Euroblock terminal, and built-in TPM 2.0 for hardware-based security.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
