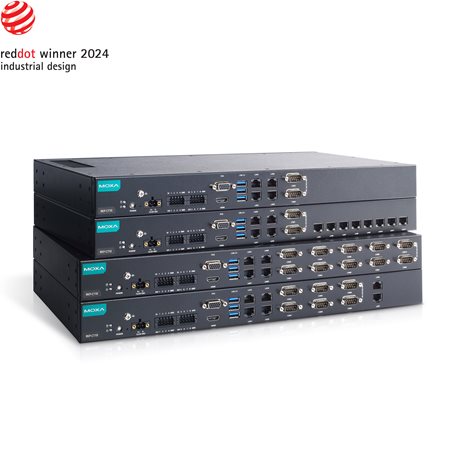

Moxa RKP-C110-C3-2HV-T | C110 1U Rackmount PC, Core i3-1115G4E, 4 LAN, 2 Serial, 100-240V

Authorised Moxa Partner

SKU:RKP-C110-C3-2HV-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa RKP-C110-C3-2HV-T is a 1U rackmount industrial PC built around an Intel Core i3-1115G4E processor, with 8 GB of DDR4 memory pre-installed. It provides 4 x Gigabit Ethernet LAN ports, 2 x software-selectable RS-232/422/485 serial ports and 8 digital inputs and 8 digital outputs, making it suited to industrial control, data acquisition and edge computing in rack-based installations. The 2HV-T power configuration accepts a wide 100 to 240 VAC/VDC input and operates across a -30 to 60°C temperature range.

Storage is handled by two 2.5-inch SATA SSD slots with RAID 0/1 support, and a single SODIMM slot allows memory expansion up to 32 GB. Video output is available via HDMI 2.0b and VGA, alongside three USB 3.0 ports, onboard TPM 2.0, a watchdog timer and a battery-backed real-time clock. Windows and Debian Linux images and drivers are supported, including Windows 11 IoT Enterprise LTSC and Windows 10 IoT Enterprise LTSC.

Features

- 1U rackmount industrial x86 computer with an Intel 11th Gen Core i3 processor
- Wide-range 100 to 240 VAC/VDC power input
- Extended -30 to 60°C operating temperature range
- Dual 2.5-inch SATA SSD bays with RAID 0/1 support
- Four Gigabit Ethernet ports with built-in 1.5 kV magnetic isolation
- Onboard TPM 2.0 for hardware-based security
- Built-in watchdog timer and RTC with lithium battery backup
- Windows and Debian Linux images and drivers supported

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i3-1115G4E (quad core, 4M cache, up to 3 GHz, base 2.20 GHz)
- Graphics: Intel Iris Xe Graphics
- Memory: 8 GB DDR4 pre-installed, 1 x SODIMM slot, up to 32 GB
- Storage: 2 x 2.5-inch SATA III SSD slots, RAID 0/1 support
- Ethernet: 4 x 10/100/1000 Mbps RJ45
- Serial: 2 x RS-232/422/485 (DB9 male), software selectable, 50 bps to 115.2 kbps
- Digital I/O: 8 x DI (dry contact), 8 x DO (sink, 200 mA per channel, 0 to 24 VDC)
- USB: 3 x USB 3.0 type-A
- Video: 1 x HDMI 2.0b, 1 x VGA (15-pin D-sub)
- Security: TPM v2.0
- Power input: 100 to 240 VAC/VDC, screw-fastened Euroblock terminal
- Power consumption: 90 W
- Housing: Metal, IP20
- Dimensions (W x D x H): 440 x 360 x 43.65 mm
- Weight: 5,616 g
- Mounting: Standard 1U rack mount
- Operating temperature: -30 to 60°C
- Storage temperature: -40 to 75°C
- Humidity: 5 to 95% (non-condensing)
- Certifications: IEC 62368-1, UL 62368-1, BSMI, FCC Part 15B Class A, EN 55032/35
- MTBF: 1,435,365 hrs

FAQs

Q: What operating systems does the RKP-C110-C3-2HV-T support?
A: It supports Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021 and Windows 11 Professional. A Debian 11 image is available, and drivers are provided for Debian 12, Ubuntu 22.04 LTS and RHEL 9.

Q: What power input does the 2HV-T model accept?
A: The 2HV-T configuration accepts 100 to 240 VAC/VDC through a screw-fastened Euroblock terminal, with a maximum power consumption of 90 W.

Q: How much memory and storage can be installed?
A: The unit ships with 8 GB DDR4 and has one SODIMM slot supporting up to 32 GB. Two 2.5-inch SATA III SSD slots are provided, with RAID 0/1 support.

Q: What serial and I/O interfaces are available?
A: There are 2 software-selectable RS-232/422/485 serial ports on DB9 connectors, 8 digital inputs and 8 digital outputs on Euroblock terminals, 4 x Gigabit RJ45 LAN ports and 3 x USB 3.0 ports.

Q: Can it operate in extreme temperatures?
A: Yes. The RKP-C110-C3-2HV-T is rated for operation from -30 to 60°C and storage from -40 to 75°C, with 5 to 95% non-condensing humidity.

Q: What display outputs does it provide?
A: It offers one HDMI 2.0b output and one VGA output, with graphics provided by the Intel Iris Xe controller.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
