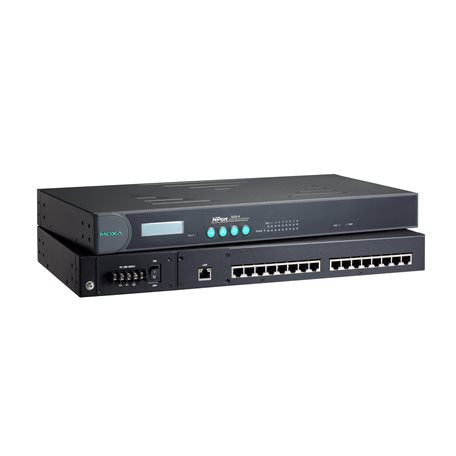

Moxa NPort 5650-16-M-SC | 16-Port RS-232/422/485 Rackmount Device Server with Multi-Mode Fiber SC Connector, NPort 5600 Series

Moxa NPort 5650-16-M-SC | 16-Port RS-232/422/485 Rackmount Device Server with Multi-Mode Fiber SC Connector, NPort 5600 Series

SKU:NPort 5650-16-M-SC

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Moxa NPort 5650-16-M-SC: 16-port RS-232/422/485 rackmount device server with multi-mode fiber (SC connector). Ideal for industrial edge connectivity. Product Page

Features

Warranty

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q1: What are the key features of the Moxa NPort 5650-16-M-SC device server?
A1: The Moxa NPort 5650-16-M-SC is a 16-port rackmount device server designed for industrial edge connectivity. It supports RS-232/422/485 communication protocols and features multi-mode fiber connectivity with an SC connector. This model is ideal for applications requiring reliable serial-to-Ethernet connectivity in industrial environments.
Q2: How does the Moxa NPort 5600 Series enhance industrial edge connectivity?
A2: The Moxa NPort 5600 Series, including the NPort 5650-16-M-SC, enhances industrial edge connectivity by providing robust serial-to-Ethernet conversion. With support for 8 and 16-port configurations, these device servers facilitate seamless integration of legacy serial devices into modern network infrastructures, ensuring reliable data transmission and remote device management.
Q3: Can the Moxa NPort 5650-16-M-SC be used in harsh industrial environments?
A3: Yes, the Moxa NPort 5650-16-M-SC is designed for use in harsh industrial environments. It features a rugged rackmount design and supports a wide range of operating temperatures, making it suitable for demanding applications where reliable connectivity is crucial.
Q4: Where can I purchase the Moxa NPort 5650-16-M-SC in Australia?
A4: In Australia, you can purchase the Moxa NPort 5650-16-M-SC through authorized resellers such as IP Trading. They offer a range of Moxa products and can provide expert advice on selecting the right device server for your specific needs.
Q5: What type of connectivity does the Moxa NPort 5650-16-M-SC support?
A5: The Moxa NPort 5650-16-M-SC supports RS-232/422/485 serial communication protocols and features multi-mode fiber connectivity with an SC connector. This allows for flexible integration into various network setups, providing reliable and high-speed data transmission.
Q6: Is technical support available for the Moxa NPort 5600 Series?
A6: Yes, technical support for the Moxa NPort 5600 Series is available through Moxa's support page. You can access software updates, documentation, and other resources to assist with installation and troubleshooting.

Technical Specifications

Product Type: Rackmount serial device server
Number of Ports: 16
Supported Serial Interfaces: RS-232, RS-422, RS-485
Fiber Optic Interface: Multi-mode fiber
Fiber Connector Type: SC connector
Rackmount Capability: Yes
Operating Temperature Range: -10°C to 60°C (14°F to 140°F)
Storage Temperature Range: -20°C to 75°C (-4°F to 167°F)
Humidity: 5% to 95% non-condensing
Power Input: 100 to 240 VAC, 47 to 63 Hz
Power Consumption: Maximum 15 W
Certifications: CE, FCC, UL
Dimensions: 440 x 44 x 200 mm (17.32 x 1.73 x 7.87 in)
Weight: 2.5 kg (5.51 lbs)
Mounting: 19-inch rackmount
Serial Communication Parameters: Baudrate up to 921.6 kbps
Flow Control: RTS/CTS, XON/XOFF
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Network Protocols: TCP, UDP, ICMP, IPv4, DHCP, Telnet, SSH, SNMPv1/v2c/v3, HTTP, HTTPS
Management: Web console, Telnet console, SNMP
LED Indicators: Power, Ready, Serial TX/RX, Ethernet
Ethernet Interface: 10/100 Mbps, RJ45 connector
Warranty: 5 years
