Moxa MPC-3150W-E4-T | MPC-3150W 15.6in Panel PC, Atom x6425E, 8GB, 1000-nit PCAP

Authorised Moxa Partner

SKU:MPC-3150W-E4-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

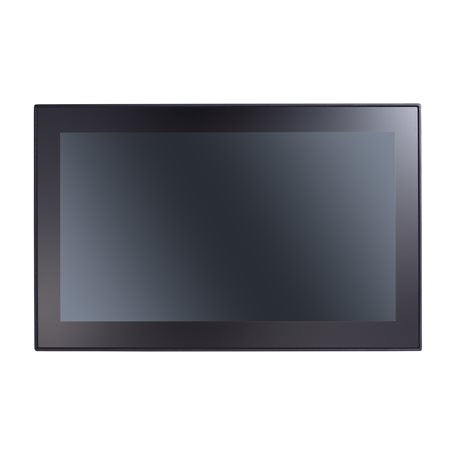

The MPC-3150W-E4-T is a 15.6-inch fanless industrial panel PC built around a quad-core Intel Atom x6425E processor (2.0 GHz) with 8 GB of DDR4 memory pre-installed. Its 1920 x 1080 display delivers 1000 nits for sunlight-readable operation, paired with a glove-friendly projective capacitive (PCAP) multi-touch screen and an IP66-rated front panel.

Built for demanding sites, the MPC-3150W-E4-T operates from -30 to 60°C without a heater and runs from a 12/24 VDC supply. It includes two Gigabit Ethernet ports, two software-selectable RS-232/422/485 serial ports, two USB 3.0 ports and 4 DI / 4 DO. It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional and several Linux distributions, and carries maritime and hazardous-location approvals.

Features

- Fanless quad-core Intel Atom x6000E design with no moving parts
- Operates from -30 to 60°C with no heater required
- Sunlight-readable 1000-nit display with glove-friendly PCAP multi-touch
- IP66-rated front panel for washdown and dusty environments
- Two Gigabit LAN ports with native network redundancy
- Two software-selectable RS-232/422/485 serial ports for legacy device connectivity
- Isolated 4 DI / 4 DO for direct control and monitoring
- 12/24 VDC power input suited to vehicle and industrial supplies
- Maritime and hazardous-location compliance (DNV, ATEX Zone 2, Class I Division 2, IECEx Zone 2, certification processes underway)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 15.6-inch 1920 x 1080 AAS display, 1000 nits, 800:1 contrast, 170°/170° viewing angles
- Projective capacitive (PCAP) touchscreen, 4-point multi-touch, glove support
- Intel Atom Elkhart Lake x6425E quad-core 2.0 GHz, Intel HD Graphics
- 8 GB DDR4 2400 MHz pre-installed, 1 x SODIMM slot, 32 GB maximum
- Storage expansion: 1 x CFast slot, 1 x SD 3.0 slot (SDHC/SDXC)
- 2 x 10/100/1000 Mbps Ethernet (RJ45)
- 2 x RS-232/422/485 serial ports (software-selectable, DB9 male)
- 2 x USB 3.0 type-A hosts
- 4 isolated digital inputs, 4 isolated digital outputs
- Input voltage 12/24 VDC, 55 W maximum power consumption
- IP66 front, IP20 rear, metal housing
- Operating temperature -30 to 60°C, humidity 5 to 95% non-condensing
- Dimensions 398 x 254 x 75.7 mm, weight 4,000 g
- Supported OS: Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS, RHEL 9
- Certifications: DNV-CG-0339, IEC 60945, IACS E10, IEC 62368-1, UL 62368-1, CISPR 32, FCC Part 15B Class A, RoHS, WEEE

FAQs

Q: What processor and memory does the MPC-3150W-E4-T have?
A: It uses a quad-core Intel Atom x6425E (Elkhart Lake) at 2.0 GHz with 8 GB of DDR4 2400 MHz memory pre-installed. The single SODIMM slot supports up to 32 GB.

Q: Which operating systems are supported?
A: Supported systems include Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: Can the touchscreen be used with gloves and in direct sunlight?
A: Yes. The projective capacitive touchscreen supports gloved operation, and the 1000-nit display is designed to stay readable in bright, sunlit conditions.

Q: What operating temperature range is supported?
A: The panel PC operates from -30 to 60°C without a heater, and is fanless with a metal housing.

Q: What serial and I/O interfaces are available?
A: It provides two software-selectable RS-232/422/485 serial ports, two Gigabit Ethernet ports, two USB 3.0 ports, and four isolated digital inputs and four isolated digital outputs.

Q: What power supply does it need?
A: It runs from a 12/24 VDC input with a maximum consumption of 55 W including full USB loading.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
