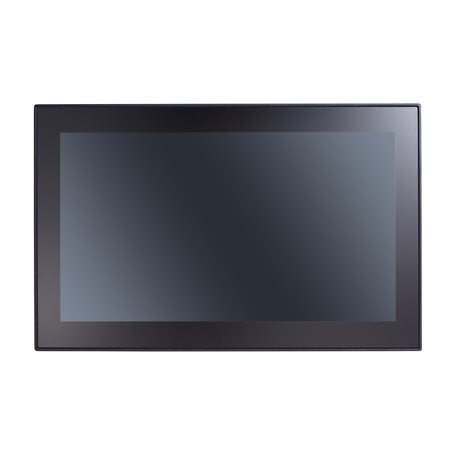

Moxa MPC-3150W-E4-LB-T | MPC-3150W 15.6in Fanless Panel PC, Atom x6425E, 8GB, 400-nit

Authorised Moxa Partner

SKU:MPC-3150W-E4-LB-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MPC-3150W-E4-LB-T is a 15.6-inch fanless industrial panel PC built on a quad-core Intel Atom x6425E processor with 8GB DDR4 memory and a 400-nit glove-friendly PCAP multi-touch display. This 400-nit (LB) variant is designed for harsh indoor and outdoor deployments such as oil and gas sites and drilling platforms, operating from -30 to 60°C without a heater.

A sealed metal housing with an IP66-rated front panel, 12/24 VDC power input, dual LAN, dual RS-232/422/485 serial ports and USB 3.0 make it suited to machine control, HMI and edge computing roles. It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Features

- Fanless design with no heater required
- Glove-friendly PCAP multi-touch screen
- IP66-rated front panel for dust and water resistance
- Wide -30 to 60°C operating temperature range
- 12/24 VDC power input for industrial power systems
- Suited to harsh, hot outdoor environments such as oil and gas fields and drilling platforms

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 15.6-inch 16:9 PCAP multi-touch LCD, 400 nits
- Intel Atom x6425E (Elkhart Lake) quad-core, 2.0 GHz
- Intel UHD Graphics
- 8GB DDR4 2400 MHz pre-installed, 32GB maximum, 1 x SODIMM slot
- 2 x LAN
- 2 x serial ports (RS-232/422/485)
- 2 x USB 3.0
- 12/24 VDC power input
- IP66 front panel, IP20 rear
- Operating temperature -30 to 60°C, fanless
- Metal housing
- OS support: Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, Debian 11, Ubuntu 22.04 LTS, RHEL 9

FAQs

Q: What processor and memory does the MPC-3150W-E4-LB-T use?
A: It uses a quad-core Intel Atom x6425E (Elkhart Lake) processor at 2.0 GHz with Intel UHD Graphics and 8GB DDR4 2400 MHz pre-installed. Memory is expandable to 32GB via one SODIMM slot.

Q: What does the LB in the model number mean?
A: The LB variant has a 400-nit PCAP multi-touch LCD. Other models in the MPC-3150W series offer a 1000-nit sunlight-readable display.

Q: Does this panel PC need a heater or fan for extreme temperatures?
A: No. It is fanless and operates from -30 to 60°C without a heater.

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: What connectivity does it provide?
A: It has 2 x LAN, 2 x serial ports (RS-232/422/485) and 2 x USB 3.0.

Q: What power input and ingress protection does it have?
A: It accepts a 12/24 VDC power input and has an IP66-rated front panel with an IP20 rear.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
