Description

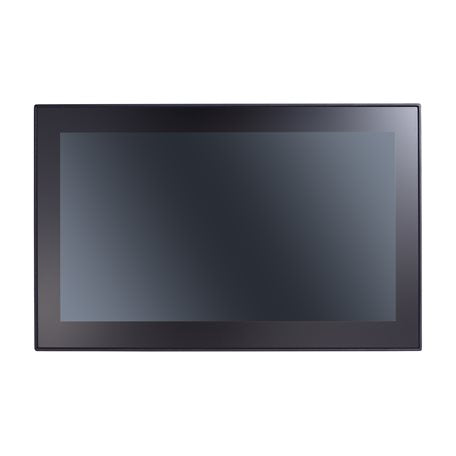

The MPC-3150W-E2-T is a 15.6-inch fanless industrial panel PC built around an Intel Atom x6211E dual-core processor with 8 GB of DDR4 memory pre-installed. Its 1000-nit sunlight-readable display with glove-friendly projected-capacitive multi-touch and IP66-rated front panel suit harsh outdoor deployments such as oil and gas fields and drilling platforms, with operation from -30 to 60°C and no heater required.

I/O includes two Gigabit Ethernet ports, two software-selectable RS-232/422/485 serial ports, two USB 3.0 ports and isolated 4 DI / 4 DO, powered from a 12/24 VDC input. Storage expansion is provided by CFast and SD slots, and the unit supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional and several Linux distributions.

Features

- 15.6-inch panel computer with Intel Atom x6211E dual-core processor
- 30 to 60°C operating temperature with fanless design and no heater required
- 1000-nit sunlight-readable LCD
- Glove-friendly projected-capacitive multi-touch screen
- Two software-selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports with native network redundancy
- IP66-rated front panel for harsh outdoor environments
- Supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, Debian 11, Ubuntu 22.04 LTS and RHEL 9
- Maritime and hazardous-location approvals including DNV, ATEX Zone 2, Class I Division 2 and IECEx Zone 2 (certification processes underway)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Atom x6211E dual-core 1.30 GHz (Elkhart Lake), Intel HD Graphics
- 8 GB DDR4 2400 MHz pre-installed, 1 x SODIMM slot, 32 GB maximum
- 15.6-inch 1920 x 1080 display, 1000 nits, 800:1 contrast, 170°/170° viewing angles
- Projected-capacitive multi-touch, 4 touch points, glove support
- 2 x 10/100/1000 Mbps Ethernet (RJ45)
- 2 x RS-232/422/485 software-selectable serial ports (DB9 male)
- 2 x USB 3.0 type-A
- 4 DI / 4 DO with isolation protection
- Storage: 1 x CFast slot, 1 x SD slot (SDHC/SDXC)
- Input voltage 12/24 VDC, 55 W maximum power consumption
- IP66 front panel, IP20 rear, metal housing
- Operating temperature -30 to 60°C, fanless, 5 to 95% non-condensing humidity
- Dimensions 398 x 254 x 75.7 mm, weight 4,000 g
- Certifications: IEC 62368-1, UL 62368-1, DNV-CG-0339, IEC 60945, IACS E10, RoHS, CRoHS, WEEE

FAQs

Q: What operating temperature range does the MPC-3150W-E2-T support?
A: It operates from -30 to 60°C with a fanless design and does not require a heater.

Q: Is the display readable in direct sunlight?
A: Yes. The 15.6-inch 1920 x 1080 LCD is rated at 1000 nits for sunlight-readable operation.

Q: Can the touchscreen be used with gloves?
A: Yes. The projected-capacitive (PCAP) multi-touch screen supports glove operation.

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: What I/O and storage options does it provide?
A: Two Gigabit Ethernet ports, two software-selectable RS-232/422/485 serial ports, two USB 3.0 ports, 4 DI and 4 DO, plus CFast and SD storage slots.

Q: What is the power input and ingress protection rating?
A: It runs from a 12/24 VDC input and has an IP66-rated front panel with an IP20-rated rear.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
