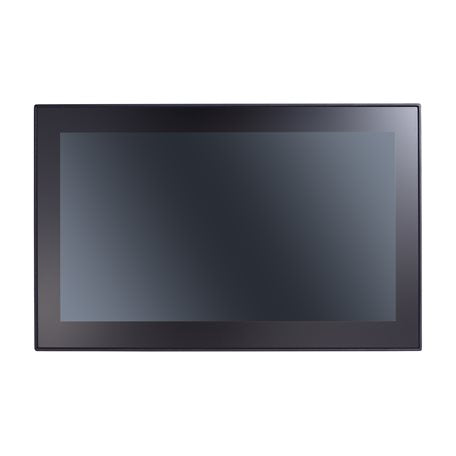

Moxa MPC-3150W-E2-LB-T | MPC-3150W 15.6in Fanless Panel PC, Atom x6211E, 8GB, 400-nit

Authorised Moxa Partner

SKU:MPC-3150W-E2-LB-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MPC-3150W-E2-LB-T is a 15.6-inch fanless industrial panel PC built around a dual-core Intel Atom x6211E processor with 8 GB of DDR4 RAM and a 400-nit projected-capacitive multi-touch display. The IP66-rated front panel and a wide -30 to 60°C operating range suit harsh, hot outdoor environments such as oil and gas fields and drilling platforms, with no heater required.

Connectivity includes 2 x Gigabit Ethernet ports with native network redundancy, 2 x software-selectable RS-232/422/485 serial ports, 2 x USB 3.0 host ports, isolated 4 DI and 4 DO, and an HDMI 1.2a video output. The unit runs from 12/24 VDC, supports TPM v2.0, and is compatible with Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Features

- Fanless design with efficient heat dissipation, no heater required
- Sunlight-readable, glove-friendly multi-touch screen
- Two software-selectable serial ports and two Gigabit Ethernet ports with native network redundancy
- IP66-rated front panel for dust and water jet resistance
- Suited to harsh, hot outdoor environments such as oil and gas fields and drilling platforms
- Wide -30 to 60°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 15.6-inch (16:9) projected-capacitive multi-touch LCD, 400 nits
- Intel Atom Elkhart Lake dual-core x6211E, 1.30 GHz
- Intel UHD Graphics
- 8 GB DDR4 2400 MHz pre-installed, 32 GB maximum, 1 x SODIMM slot
- 2 x 10/100/1000 Mbps Ethernet (RJ45)
- 2 x software-selectable RS-232/422/485 (DB9 male)
- 2 x USB 3.0 type-A host ports
- 4 x DI and 4 x DO (isolated)
- 1 x HDMI 1.2a video output
- TPM v2.0
- Storage expansion: 1 x CFast slot, 1 x SD 3.0 slot
- 12/24 VDC power input
- IP66 front panel, IP20 rear
- Operating temperature -30 to 60°C, fanless
- Supported OS: Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS, RHEL 9

FAQs

Q: What processor and memory does the MPC-3150W-E2-LB-T use?
A: It uses a dual-core Intel Atom x6211E processor running at 1.30 GHz with 8 GB of DDR4 2400 MHz RAM pre-installed. Memory can be expanded to a maximum of 32 GB via the SODIMM slot.

Q: What operating systems are supported?
A: Supported operating systems are Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: What operating temperature range does this panel PC support?
A: It operates from -30 to 60°C. The fanless design dissipates heat efficiently, so no heater is required.

Q: What serial and network ports are included?
A: It has 2 x 10/100/1000 Mbps Ethernet ports and 2 x software-selectable RS-232/422/485 serial ports on DB9 male connectors, plus 2 x USB 3.0 host ports.

Q: What ingress protection rating does it have?
A: The front panel is rated IP66 and the rear is rated IP20.

Q: What does the LB suffix mean in this model?
A: The LB variant combines the dual-core Atom x6211E processor, 8 GB RAM and the 400-nit LCD.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
