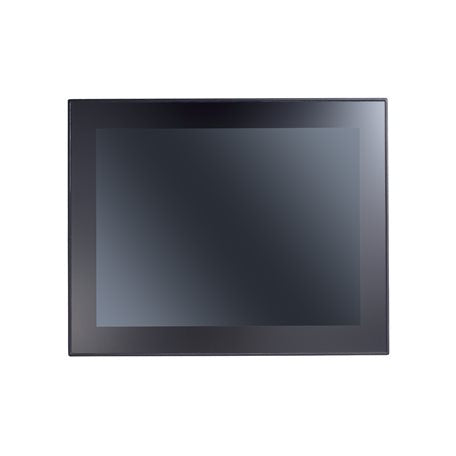

Moxa MPC-3150-E4-T | MPC-3150 15in Fanless Panel PC, Atom x6425E, 8GB, 1000 nits

Authorised Moxa Partner

SKU:MPC-3150-E4-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MPC-3150-E4-T is a 15-inch fanless industrial panel computer built around a quad-core Intel Atom x6425E processor (Elkhart Lake) with 8 GB of DDR4 memory pre-installed. Its 1000-nit PCAP touchscreen is sunlight readable and glove friendly, making it well suited to factory floors, outdoor kiosks and marine or hazardous-area HMI deployments.

The metal housing carries an IP66-rated front panel and operates from -30 to 60°C without a heater. Connectivity includes two Gigabit LAN ports, two software-selectable RS-232/422/485 serial ports, two USB 3.0 ports and isolated 4 DI / 4 DO, with a 12/24 VDC power input. It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Features

- Fanless design with no moving parts for reliable 24/7 operation
- Operates from -30 to 60°C with no heater required
- 1000-nit sunlight-readable display for outdoor and bright environments
- Glove-friendly multi-touch PCAP screen
- Two Gigabit Ethernet ports with native network redundancy
- Two software-selectable RS-232/422/485 serial ports for legacy devices
- IP66-rated front panel in a metal housing
- Supports Windows 10 IoT Enterprise, Windows 11 Professional and Linux distributions
- Wide 12/24 VDC power input

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Atom x6425E quad-core 2.0 GHz (Elkhart Lake)
- Intel HD Graphics
- 8 GB DDR4 2400 MHz pre-installed, 1 x SODIMM slot, 32 GB maximum
- 15 in 4:3 MVA display, 1024 x 768, 1000 nits, 3000:1 contrast
- Projective capacitive touchscreen, 4-point multi-touch, glove support
- 2 x 10/100/1000 Mbps RJ45 Ethernet
- 2 x RS-232/422/485 serial ports (DB9 male, software-selectable)
- 2 x USB 3.0 Type-A
- 4 isolated digital inputs and 4 isolated digital outputs
- Storage expansion: 1 x CFast slot, 1 x SD 3.0 slot
- 12/24 VDC input, 51 W maximum power consumption
- Metal housing, IP66 front panel, IP20 rear
- Dimensions: 370 x 297 x 73.7 mm, weight 4,300 g
- Operating temperature -30 to 60°C, 5 to 95% non-condensing humidity
- Hazardous location and maritime approvals: ATEX Zone 2, Class I Division 2, IECEx Zone 2, DNV-CG-0339, IEC 60945, IACS E10
- Safety: IEC 62368-1, UL 62368-1

FAQs

Q: Which operating systems does the MPC-3150-E4-T support?
A: It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: Can it be used outdoors or in direct sunlight?
A: Yes. The 15-inch display delivers 1000 nits for sunlight readability, and the front panel is IP66 rated with operation from -30 to 60°C without a heater.

Q: Can I operate the touchscreen with gloves?
A: Yes. The projective capacitive touchscreen supports glove operation and 4-point multi-touch.

Q: How much memory does it ship with and can it be upgraded?
A: It comes with 8 GB of DDR4 2400 MHz memory pre-installed in a single SODIMM slot, expandable to a maximum of 32 GB.

Q: What power input does it require?
A: It runs from a 12/24 VDC input, with a maximum power consumption of 51 W including full USB loading.

Q: What serial and I/O interfaces are included?
A: Two software-selectable RS-232/422/485 DB9 serial ports, two Gigabit RJ45 LAN ports, two USB 3.0 Type-A ports, and four isolated digital inputs and four isolated digital outputs.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
