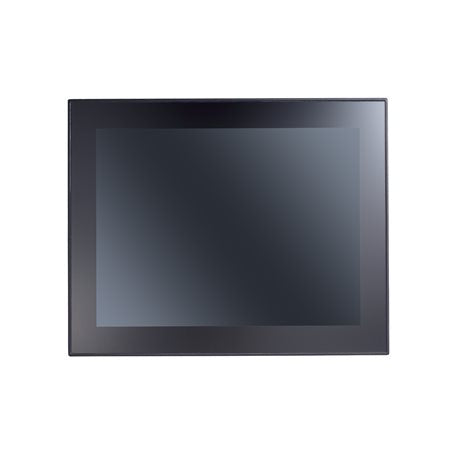

Moxa MPC-3150-E4-LB-T | MPC-3150 15in Fanless Panel PC, Atom x6425E, 8GB, 400-nit PCAP

Authorised Moxa Partner

SKU:MPC-3150-E4-LB-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MPC-3150-E4-LB-T is a 15-inch fanless industrial panel PC built around an Intel Atom x6425E quad-core 2.0 GHz processor with 8 GB DDR4 pre-installed. It pairs a 400-nit 1024 x 768 MVA LCD with a glove-friendly projected-capacitive multi-touch screen, and offers 2 Gigabit LAN ports, 2 software-selectable RS-232/422/485 serial ports, 2 USB 3.0 ports and 4 isolated DI / 4 isolated DO channels.

With an IP66-rated front panel, a 12/24 VDC input and an operating range of -30 to 60°C without a heater, it is designed for harsh, hot and outdoor installations such as oil and gas fields, drilling platforms and marine applications. It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional and several Linux distributions, and includes TPM 2.0, CFast and SD storage slots and HDMI output.

Features

- Fanless design with no heater required for -30 to 60°C operation
- 400-nit LCD with glove-friendly multi-touch PCAP screen
- Intel Atom x6000E series quad-core processor
- Two Gigabit LAN ports with native network redundancy
- Two software-selectable RS-232/422/485 serial ports
- Isolated 4 DI / 4 DO for direct field I/O connection
- IP66-rated front panel for dust and water resistance
- Supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, Debian 11, Ubuntu 22.04 LTS and RHEL 9
- Hazardous location and maritime standards including ATEX Zone 2, Class I Division 2, IECEx Zone 2 and DNV-CG-0339

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom Elkhart Lake x6425E quad-core 2.0 GHz
- Graphics: Intel UHD Graphics
- Memory: 8 GB DDR4 2400 MHz pre-installed, 1 x SODIMM slot, 32 GB max
- Display: 15-inch 4:3 MVA LCD, 1024 x 768, 400 nits, 3000:1 contrast
- Touch: Projected capacitive (PCAP), 4 touch points, glove support
- Storage slots: 1 x CFast, 1 x SD 3.0 (SDHC/SDXC)
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485 (DB9 male), software-selectable
- USB: 2 x USB 3.0 Type-A
- Digital I/O: 4 x DI and 4 x DO with isolation protection
- Video output: 1 x HDMI 1.2a (Type-A)
- Security: TPM v2.0
- Input voltage: 12/24 VDC, 51 W max including full USB loading
- Ingress protection: IP66 front, IP20 rear
- Operating temperature: -30 to 60°C
- Humidity: 5 to 95% non-condensing
- Dimensions: 370 x 297 x 73.7 mm
- Weight: 4,300 g
- Housing: Metal

FAQs

Q: Which operating systems does the MPC-3150-E4-LB-T support?
A: It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: What power input does this panel PC use?
A: It runs from a 12/24 VDC input, with a maximum power consumption of 51 W including full USB loading.

Q: Can it operate in extreme temperatures?
A: Yes. It is rated for -30 to 60°C operation and uses a fanless design that does not require a heater.

Q: How much memory can be installed?
A: It ships with 8 GB DDR4 2400 MHz and has one SODIMM slot supporting up to 32 GB.

Q: What does the LB in the model number indicate?
A: LB denotes the 400-nit brightness LCD variant. The E4 designation indicates the Intel Atom x6425E quad-core CPU.

Q: What storage options and I/O are available?
A: It has one CFast slot and one SD 3.0 slot, plus 2 Gigabit LAN, 2 serial, 2 USB 3.0, HDMI output and 4 DI / 4 DO channels.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
