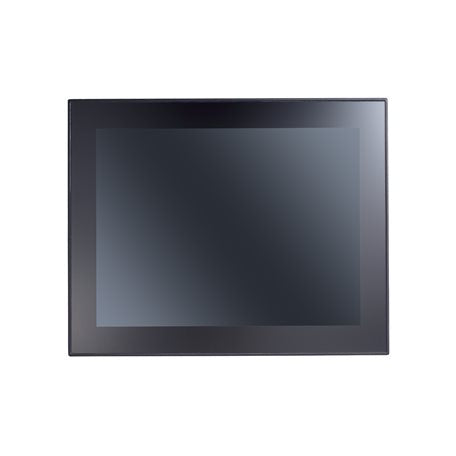

Moxa MPC-3150-E2-T | MPC-3150 15in Fanless Panel PC, Atom x6211E, 8GB, 1000-nit

Authorised Moxa Partner

SKU:MPC-3150-E2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MPC-3150-E2-T is a 15-inch fanless industrial panel PC built around an Intel Atom x6211E dual-core processor at 1.30 GHz with 8 GB of pre-installed DDR4 memory. Its 1000-nit PCAP multi-touch display with glove support stays readable in bright environments, and the IP66-rated front panel suits washdown, factory floor and outdoor-adjacent HMI deployments across a -30 to 60°C operating range.

For integration, the unit provides 2 x Gigabit LAN, 2 x software-selectable RS-232/422/485 serial ports, 2 x USB 3.0, HDMI output, and 4 isolated digital inputs and outputs, with CFast and SD storage slots and TPM v2.0 onboard. It runs from a 12/24 VDC supply and supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional and several Linux distributions. Hazardous location and maritime certifications extend its use to regulated sites.

Features

- Fanless metal housing with an IP66-rated front panel for dust and water resistance
- 1000-nit PCAP multi-touch display with glove support for sunlight-readable operation
- Wide operating temperature range of -30 to 60°C
- ATEX Zone 2, Class I Division 2 and IECEx Zone 2 hazardous location certifications
- Maritime certifications: DNV-CG-0339, IEC 60945 and IACS E10
- TPM v2.0 onboard for platform security
- 4 isolated digital inputs and 4 isolated digital outputs for direct field I/O
- Supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, Debian 11, Ubuntu 22.04 LTS and RHEL 9

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom x6211E (Elkhart Lake) dual-core 1.30 GHz
- Graphics: Intel UHD Graphics
- Memory: 8 GB DDR4 2400 MHz pre-installed, 1 x SODIMM slot, 32 GB maximum
- Storage slots: 1 x CFast, 1 x SD (SD 3.0, SDHC/SDXC)
- Display: 15 in, 1024 x 768, 4:3, MVA panel, 1000 nits, 3000:1 contrast
- Touch: projected capacitive (PCAP), 4 points, glove support
- Ethernet: 2 x 10/100/1000 Mbps RJ45
- Serial: 2 x RS-232/422/485 software-selectable, DB9 male
- USB: 2 x USB 3.0 Type-A
- Video output: 1 x HDMI 1.2a
- Digital I/O: 4 isolated DIs, 4 isolated DOs
- Security: TPM v2.0
- Power input: 12/24 VDC, 51 W maximum
- Ingress protection: IP66 front, IP20 rear
- Operating temperature: -30 to 60°C
- Dimensions: 370 x 297 x 73.7 mm
- Weight: 4,300 g

FAQs

Q: Which operating systems does the MPC-3150-E2-T support?
A: It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: What power input does this panel PC use?
A: It runs from a 12/24 VDC input with a maximum power consumption of 51 W including full USB loading.

Q: Can it be used in hazardous or maritime environments?
A: Yes. It carries ATEX Zone 2, Class I Division 2 and IECEx Zone 2 hazardous location certifications, plus DNV-CG-0339, IEC 60945 and IACS E10 maritime certifications.

Q: Can I upgrade the memory?
A: The unit ships with 8 GB DDR4 2400 MHz in its single SODIMM slot and supports up to 32 GB.

Q: What serial and I/O interfaces are available?
A: It provides 2 x RS-232/422/485 software-selectable serial ports, 2 x Gigabit LAN, 2 x USB 3.0, one HDMI output, and 4 isolated digital inputs and 4 isolated digital outputs.

Q: How does this model differ from other MPC-3150 variants?
A: The E2-T model uses the Atom x6211E dual-core processor with 8 GB of RAM and a 1000-nit display, which is the brightness level specified for the MPC-3150-E2-T and E4-T models.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
