Moxa MPC-3150-E2-LB-T | MPC-3150 15in Fanless Panel PC, Atom x6211E, 8GB, -30 to 60°C

Authorised Moxa Partner

SKU:MPC-3150-E2-LB-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

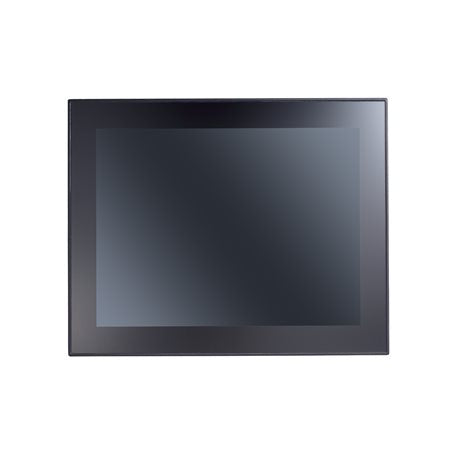

The MPC-3150-E2-LB-T is a 15-inch fanless industrial panel PC built around an Intel Atom x6211E dual-core processor with 8 GB DDR4 pre-installed. It pairs a 400-nit XGA MVA display with a glove-friendly projective capacitive multi-touch screen, and operates from -30 to 60°C with no heater required, making it suited to harsh and outdoor deployments such as oil and gas fields and drilling platforms.

Connectivity includes two Gigabit Ethernet ports with native network redundancy, two software-selectable RS-232/422/485 serial ports and two USB 3.0 ports. The IP66-rated front panel and fanless enclosure support efficient heat dissipation, and the 12/24 VDC power input suits industrial power systems.

Features

- Fanless design with no heater required across -30 to 60°C
- 400-nit display suited to bright and outdoor environments
- Glove-friendly multi-touch PCAP screen
- Two Gigabit Ethernet ports with native network redundancy
- Two software-selectable RS-232/422/485 serial ports for legacy and field devices
- 12/24 VDC power input for industrial power systems
- Fanless enclosure designed for efficient heat dissipation
- Suited to oil and gas fields and drilling platforms

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 15-inch XGA (1024 x 768) MVA LCD, 400 nits
- Projective capacitive (PCAP) multi-touch screen, glove-friendly
- Intel Atom Elkhart Lake x6211E dual-core, 1.30 GHz
- Intel UHD Graphics
- 8 GB DDR4 2400 MHz pre-installed, 1 x SODIMM slot, 32 GB maximum
- 2 x Gigabit Ethernet LAN
- 2 x software-selectable RS-232/422/485 serial ports
- 2 x USB 3.0
- 12/24 VDC power input
- IP66 front panel protection
- Operating temperature: -30 to 60°C, fanless design
- Viewing angles 176°/176°, 25 ms response time, 262k/16.7M colours

FAQs

Q: What processor and memory does the MPC-3150-E2-LB-T include?
A: It uses an Intel Atom x6211E dual-core processor at 1.30 GHz with 8 GB of DDR4 2400 MHz memory pre-installed. The single SODIMM slot supports up to 32 GB.

Q: What is the operating temperature range?
A: The unit operates from -30 to 60°C using a fanless design, and no heater is required.

Q: What does the LB in the model number indicate?
A: LB denotes the 400-nit LCD variant of the MPC-3150 series. This model is the Atom x6211E dual-core (E2) version with 8 GB of memory.

Q: What serial and network connectivity is provided?
A: It has two software-selectable RS-232/422/485 serial ports, two Gigabit Ethernet LAN ports with native network redundancy, and two USB 3.0 ports.

Q: What power input does it use?
A: It accepts a 12/24 VDC power input, suiting typical industrial and field power systems.

Q: Is the front panel dust and water resistant?
A: Yes, the front panel is rated IP66.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
