Description

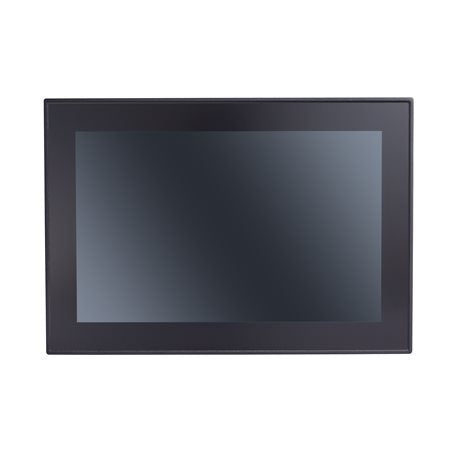

The Moxa MPC-3120W-E4-T is a 12.1-inch fanless industrial panel PC built around a quad-core Intel Atom x6425E processor with 8 GB of DDR4 memory pre-installed. Its 1000-nit projected-capacitive multi-touch LCD is sunlight-readable and glove-friendly, and the IP66-rated front panel suits washdown, outdoor and harsh factory environments. The fanless metal housing operates from -30 to 60°C without a heater, making it a dependable HMI and edge computing platform for demanding sites.

Connectivity includes two Gigabit Ethernet ports with native network redundancy, two software-selectable RS-232/422/485 serial ports and two USB 3.0 ports, powered from a 12/24 VDC input. Storage expansion is provided by CFast and SD slots, and the unit supports Windows 10 IoT Enterprise LTSC, Windows 11 Professional, Debian, Ubuntu and RHEL. Maritime and hazardous-location approvals including DNV, ATEX Zone 2, Class I Division 2 and IECEx Zone 2 extend its use to marine and classified-area deployments.

Features

- Fanless design with no heater required across -30 to 60°C
- 1000-nit sunlight-readable, glove-friendly projected-capacitive multi-touch screen
- Two Gigabit Ethernet ports with native network redundancy
- Two software-selectable RS-232/422/485 serial ports
- DNV, CID2, ATEX Zone 2 and IECEx compliant
- 12/24 VDC power input
- Supports Windows 10 IoT, Windows 11, Debian, Ubuntu and RHEL

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12.1-inch (16:10) 1000-nit multi-touch PCAP LCD
- Intel Atom x6425E quad-core 2.0 GHz (Elkhart Lake) with Intel UHD Graphics
- 8 GB DDR4 2400 MHz pre-installed, 1 x SODIMM slot (32 GB max)
- 2 x Gigabit Ethernet LAN
- 2 x software-selectable RS-232/422/485 serial ports
- 2 x USB 3.0
- Storage slots: 1 x CFast, 1 x SD (SD 3.0, SDHC/SDXC)
- 12/24 VDC power input, 48 W maximum including full USB loading
- IP66 front panel, IP20 rear
- Operating temperature: -30 to 60°C, fanless
- Metal housing, 315 x 220 x 75.7 mm, 3,000 g
- Maritime: DNV-CG-0339, IEC 60945, IACS E10
- Hazardous locations: ATEX Zone 2, Class I Division 2, IECEx Zone 2
- Safety: IEC 62368-1, UL 62368-1

FAQs

Q: Does the MPC-3120W-E4-T need a heater for cold environments?
A: No. It operates from -30 to 60°C in a fanless design without requiring a heater.

Q: Which operating systems does it support?
A: It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: How much memory does it have and can it be expanded?
A: It ships with 8 GB of DDR4 2400 MHz memory in a single SODIMM slot and supports up to 32 GB.

Q: What serial and network connectivity is available?
A: It provides two Gigabit Ethernet ports with native network redundancy and two software-selectable RS-232/422/485 serial ports, plus two USB 3.0 ports.

Q: Is it suitable for marine or hazardous-location use?
A: Yes. It carries DNV-CG-0339, IEC 60945 and IACS E10 maritime approvals, plus ATEX Zone 2, Class I Division 2 and IECEx Zone 2 hazardous-location certifications.

Q: What storage options does it offer?
A: It has one CFast slot and one SD slot supporting SD 3.0, SDHC and SDXC cards.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
