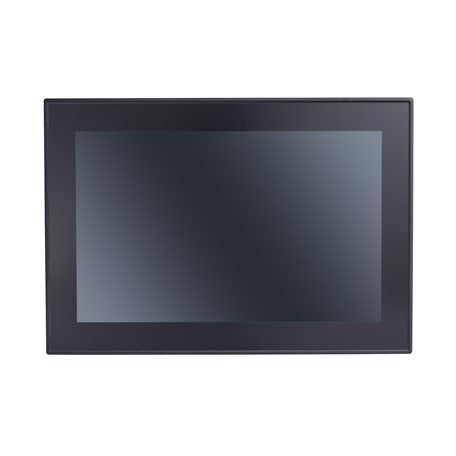

Moxa MPC-3120W-E4-LB-T | MPC-3120W 12.1in Fanless Panel PC, Atom x6425E, 8GB

Authorised Moxa Partner

SKU:MPC-3120W-E4-LB-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MPC-3120W-E4-LB-T is a 12.1-inch fanless industrial panel PC built around a quad-core Intel Atom x6425E processor with 8GB of pre-installed DDR4 memory and a 400-nit LCD (LB model). Its glove-friendly multi-touch screen and -30 to 60°C operating range, with no heater required, suit harsh, hot and outdoor deployments such as oil and gas fields.

Two software-selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports provide flexible connectivity and native network redundancy for machine and process control. The 12/24 VDC power input suits field installations, and the platform supports Windows 10 IoT Enterprise LTSC 2021 and Windows 11 Professional (64-bit).

Features

- Quad-core Intel Atom x6425E processor for industrial HMI and edge workloads
- Fanless design with -30 to 60°C operation and no heater required
- 400-nit LCD with a glove-friendly multi-touch screen
- Native network redundancy with two Gigabit Ethernet ports
- Two software-selectable RS-232/422/485 serial ports for legacy and field devices
- 12/24 VDC power input for field and vehicle-style installations

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12.1-inch 16:10 display, 1280 x 800 resolution, 400 nits (LB model)
- Active display area: 261.12 x 163.20 mm, contrast ratio 1000:1 (typ.)
- Intel Atom Elkhart Lake x6425E quad-core 2.0 GHz with Intel HD Graphics
- 8GB DDR4 2400 MHz pre-installed, 1 x SODIMM slot, 32GB maximum
- 2 x software-selectable RS-232/422/485 serial ports
- 2 x Gigabit Ethernet ports
- 12/24 VDC power input
- Operating temperature: -30 to 60°C, fanless
- Supported OS: Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit)

FAQs

Q: What processor and memory does the MPC-3120W-E4-LB-T have?
A: It uses a quad-core Intel Atom x6425E (Elkhart Lake) at 2.0 GHz with 8GB of DDR4 2400 MHz memory pre-installed. The single SODIMM slot supports up to 32GB.

Q: What does the LB in the model name mean?
A: LB denotes the 400-nit LCD variant of the MPC-3120W. A higher-brightness sunlight-readable option exists in the wider series.

Q: What operating temperature range does it support?
A: It operates from -30 to 60°C. The fanless design means no heater is required.

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021 and Windows 11 Professional (64-bit).

Q: What serial and network connectivity is included?
A: Two software-selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, which allow native network redundancy.

Q: What power input does it use?
A: It accepts 12/24 VDC power input.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
