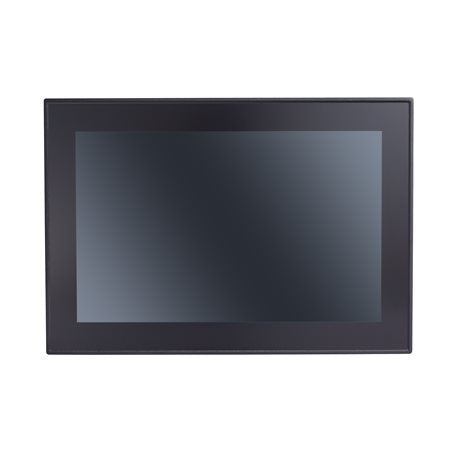

Moxa MPC-3120W-E2-T | MPC-3120W 12.1in Fanless Panel PC, Atom x6211E, 8GB, 1000-nit

Authorised Moxa Partner

SKU:MPC-3120W-E2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MPC-3120W-E2-T is a 12.1-inch fanless industrial panel PC built on a dual-core Intel Atom x6211E processor with 8GB of pre-installed DDR4 RAM. Its 1000-nit sunlight-readable widescreen PCAP multi-touch display and IP66-rated front panel make it well suited to outdoor, marine and harsh factory-floor HMI deployments. It operates from -30 to 60°C without a heater.

The panel PC offers 2 x Gigabit LAN, 2 x software-selectable RS-232/422/485 serial ports, 2 x USB 3.0, HDMI output and isolated 4 DI / 4 DO. It runs from a wide 12/24 VDC input and includes TPM v2.0. Supported operating systems include Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Features

- Fanless design with no heater required for -30 to 60°C operation
- 1000-nit sunlight-readable LCD for outdoor and bright environments
- Glove-friendly PCAP multi-touch screen
- IP66-rated front panel for dust and water resistance
- Wide 12/24 VDC power input
- Multi-interface design with 2 LAN, 2 serial and 2 USB 3.0 ports
- TPM v2.0 for hardware-based security

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom Elkhart Lake dual-core x6211E, 1.30 GHz
- Graphics: Intel UHD Graphics
- RAM: 8 GB DDR4 2400 MHz pre-installed, 32 GB maximum, 1 x SODIMM slot
- Storage slots: 1 x CFast, 1 x SD 3.0 (SDHC/SDXC)
- Display: 12.1-inch, 16:10, 261.12 x 163.20 mm active area
- Brightness: 1000 nits, contrast 1000:1 (typ.)
- Touch: PCAP multi-touch, glove-friendly
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485 software-selectable (DB9 male)
- USB: 2 x USB 3.0 Type-A hosts
- Digital I/O: 4 x DI and 4 x DO (isolated)
- Video output: 1 x HDMI 1.2a
- Security: TPM v2.0
- Power input: 12/24 VDC
- Protection: IP66 front panel
- Operating temperature: -30 to 60°C, fanless, no heater required
- Supported OS: Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS, RHEL 9

FAQs

Q: What display brightness does the MPC-3120W-E2-T have?
A: This model has a 1000-nit sunlight-readable 12.1-inch PCAP display with 1000:1 typical contrast, suited to outdoor and high-ambient-light installations.

Q: Which operating systems does it support?
A: It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: What operating temperature range is supported?
A: The fanless design operates from -30 to 60°C without requiring a heater.

Q: What power input does it use?
A: It runs from a wide 12/24 VDC input.

Q: What serial and network connectivity is provided?
A: It includes 2 x Gigabit Ethernet (RJ45) ports and 2 x software-selectable RS-232/422/485 serial ports on DB9 male connectors, plus 2 x USB 3.0 Type-A ports.

Q: Can the memory and storage be expanded?
A: The 8GB DDR4 RAM can be expanded to a maximum of 32GB via the SODIMM slot, and storage can be added through the CFast and SD 3.0 slots.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
