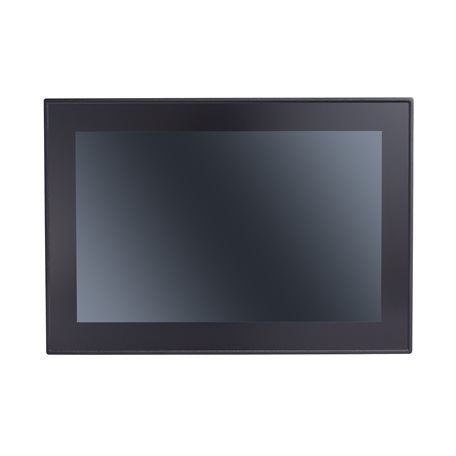

Moxa MPC-3120W-E2-LB-T | MPC-3120W 12.1in Fanless Panel PC, Atom x6211E, 8GB, -30 to 60C

Authorised Moxa Partner

SKU:MPC-3120W-E2-LB-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MPC-3120W 12.1-inch fanless panel PC pairs an Intel Atom x6211E dual-core processor with 8 GB of DDR4 memory and a 400-nit glove-friendly projected-capacitive multi-touch display. It operates from -30 to 60°C without a heater and has an IP66-rated front panel, making it well suited to factory floors, outdoor cabinets, marine and hazardous-area HMI deployments.

Connectivity includes two Gigabit Ethernet ports with native network redundancy, two software-selectable RS-232/422/485 serial ports, two USB 3.0 ports and 4 DI / 4 DO with isolation protection. It accepts a 12/24 VDC input and supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, Debian 11, Ubuntu 22.04 LTS and RHEL 9. Approvals include ATEX Zone 2, Class I Division 2, IECEx Zone 2 and maritime standards.

Features

- Fanless dual-core Intel Atom x6211E design with no moving parts
- Wide -30 to 60°C operating range with no heater required
- 400-nit sunlight-readable display for bright environments
- Glove-friendly projected-capacitive multi-touch screen
- Two Gigabit Ethernet ports with native network redundancy
- Two software-selectable RS-232/422/485 serial ports for legacy devices
- IP66-rated front panel resists dust and water jets
- 12/24 VDC power input suits industrial and vehicle power systems
- Supports Windows 10 IoT, Windows 11 Pro and major Linux distributions

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12.1-inch WXGA (1280 x 800) 16:10 display, 400 nits, 1000:1 contrast
- Projective capacitive touchscreen (PCAP), 4 touch points, glove support
- Intel Atom Elkhart Lake x6211E dual-core 1.30 GHz, Intel HD Graphics
- 8 GB DDR4 2400 MHz pre-installed, 1 x SODIMM slot, 32 GB max
- Storage expansion: 1 x CFast slot, 1 x SD slot (SD 3.0, SDHC/SDXC)
- 2 x 10/100/1000 Mbps Ethernet (RJ45)
- 2 x RS-232/422/485 software-selectable (DB9 male)
- 2 x USB 3.0 Type-A
- 4 isolated digital inputs, 4 isolated digital outputs
- 12/24 VDC input, 48 W max power consumption
- Metal housing, IP66 front / IP20 rear
- Dimensions: 315 x 220 x 75.7 mm, weight 3,000 g
- Operating temperature: -30 to 60°C
- Humidity: 5 to 95% non-condensing
- Hazardous locations: ATEX Zone 2, Class I Division 2, IECEx Zone 2
- Maritime: DNV-CG-0339, IEC 60945, IACS E10

FAQs

Q: What operating systems does the MPC-3120W-E2-LB-T support?
A: It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: Does this panel PC need a heater for cold environments?
A: No. It is rated for -30 to 60°C operation without a heater.

Q: Can I upgrade the memory?
A: Yes. It ships with 8 GB DDR4 2400 MHz in a single SODIMM slot and supports up to 32 GB.

Q: What storage options are available?
A: The unit has a CFast slot and an SD slot (SD 3.0, SDHC/SDXC) for storage expansion.

Q: Does the touchscreen work with gloves?
A: Yes. The projected-capacitive multi-touch display supports glove use.

Q: What serial and I/O connectivity does it offer?
A: It has two software-selectable RS-232/422/485 DB9 serial ports, two Gigabit Ethernet ports, two USB 3.0 ports and 4 isolated digital inputs and 4 isolated digital outputs.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
