Moxa MPC-3120-E4-T | MPC-3120 12.1in Fanless Panel PC, Atom x6425E, 8GB, 1000-nit

Authorised Moxa Partner

SKU:MPC-3120-E4-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

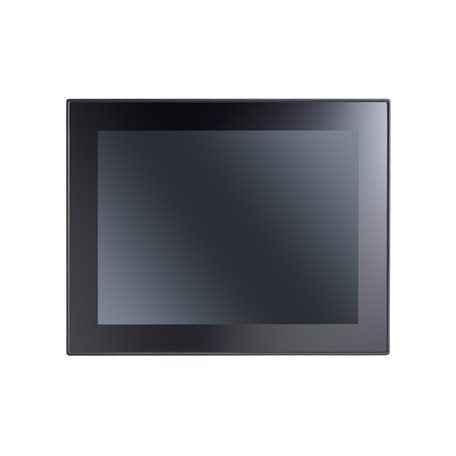

The MPC-3120-E4-T is a 12.1-inch fanless industrial Panel PC built around a quad-core Intel Atom x6425E processor with 8 GB DDR4 memory pre-installed. Its 4:3 1024 x 768 PCAP multi-touch display delivers 1000 nits of brightness with glove support, making it readable in direct sunlight. The IP66-rated front panel and -30 to 60°C operating range with no heater required suit harsh and outdoor environments such as oil and gas and marine.

Connectivity includes two Gigabit Ethernet ports, two software-selectable RS-232/422/485 serial ports, two USB 3.0 ports, HDMI output and isolated 4 DI / 4 DO. It runs from a 12/24 VDC supply and supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, Debian 11, Ubuntu 22.04 LTS and RHEL 9. Hazardous location and maritime approvals including ATEX Zone 2, Class I Division 2, IECEx Zone 2 and DNV make it a fit for regulated industrial deployments.

Features

- Fanless design with no heater required for -30 to 60°C operation
- Sunlight-readable 1000-nit LCD with glove-friendly multi-touch PCAP screen
- Quad-core Intel Atom x6425E processor with 8 GB DDR4 pre-installed
- Two software-selectable RS-232/422/485 serial ports for legacy and field devices
- Two Gigabit Ethernet ports with native network redundancy
- IP66-rated front panel for washdown and outdoor environments
- Hazardous location and maritime compliance including ATEX Zone 2, IECEx and DNV
- 12/24 VDC power input for vehicle, marine and industrial supplies
- Supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, Debian 11, Ubuntu 22.04 LTS and RHEL 9

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Atom Elkhart Lake x6425E quad-core, 2.0 GHz
- Graphics: Intel UHD Graphics
- Memory: 8 GB DDR4 2400 MHz pre-installed, 1 x SODIMM slot, 32 GB maximum
- Storage slots: 1 x CFast, 1 x SD (SD 3.0, SDHC/SDXC)
- Display: 12.1 inch, 4:3, 1024 x 768, AAS panel, 178°/178° viewing angles
- Brightness: 1000 nits, contrast ratio 1000:1 (typ.)
- Touch: projective capacitive (PCAP), 4 touch points, glove support
- Ethernet: 2 x auto-sensing 10/100/1000 Mbps (RJ45), 1.5 kV magnetic isolation
- Serial: 2 x RS-232/422/485 software-selectable (DB9 male), 50 bps to 115.2 kbps
- USB: 2 x USB 3.0 Type-A
- Video output: 1 x HDMI 1.2a (Type-A)
- Digital I/O: 4 DI and 4 DO (isolated)
- Security: TPM v2.0
- Power input: 12/24 VDC, 48 W maximum including full USB loading
- Ingress protection: IP66 front, IP20 rear
- Housing: metal; dimensions 315 x 220 x 75.7 mm; weight 2,900 g
- Operating temperature: -30 to 60°C, fanless, no heater required
- Storage temperature: -40 to 70°C; humidity 5 to 95% non-condensing
- Approvals: ATEX Zone 2, Class I Division 2, IECEx Zone 2, DNV-CG-0339, IEC 60945, IACS E10, IEC 62368-1, UL 62368-1, RoHS, CRoHS, WEEE

FAQs

Q: What operating systems does the MPC-3120-E4-T support?
A: It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: Can the screen be used in direct sunlight and with gloves?
A: Yes. The 12.1-inch display is rated at 1000 nits for sunlight readability, and the PCAP multi-touch screen supports glove use.

Q: What temperature range does it operate in?
A: It operates from -30 to 60°C with a fanless design and does not require a heater.

Q: Is it suitable for hazardous locations or marine use?
A: The MPC-3120 series is compliant with ATEX Zone 2, Class I Division 2, IECEx Zone 2 and maritime standards DNV-CG-0339, IEC 60945 and IACS E10.

Q: How can storage and memory be expanded?
A: Memory can be expanded through the single DDR4 SODIMM slot up to 32 GB, and storage through the CFast and SD slots.

Q: What power supply does it need?
A: It accepts a 12/24 VDC input with a maximum consumption of 48 W including full USB loading.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
