Moxa MPC-3120-E4-LB-T | MPC-3120 12.1in Fanless Panel PC, Atom x6425E, 8GB, 400 nits

Authorised Moxa Partner

SKU:MPC-3120-E4-LB-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

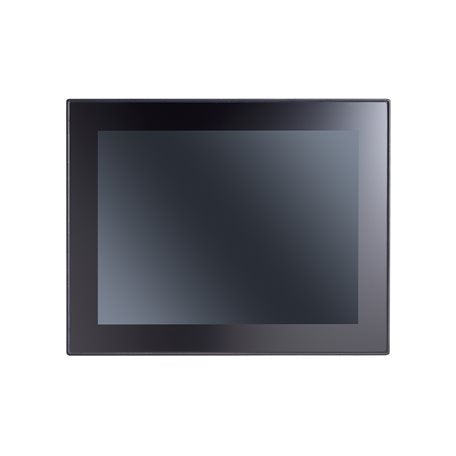

The Moxa MPC-3120-E4-LB-T is a 12.1-inch fanless industrial panel PC built around an Intel Atom x6425E quad-core processor with 8 GB of DDR4 memory and a 400-nit multi-touch PCAP display. Designed for harsh factory floors, outdoor kiosks and machine HMI applications, it combines an IP66-rated front panel with an operating range of -30 to 60°C, with no heater required.

Two Gigabit Ethernet LAN ports support network redundancy, while two software-selectable RS-232/422/485 serial ports, two USB 3.0 ports and 4 DI / 4 DO channels connect legacy equipment and field devices. A 12/24 VDC power input and a glove-friendly touchscreen make it practical for control rooms, marine and hazardous-area deployments.

Features

- Fanless design with wide operating temperature range and no heater required
- Sunlight-readable 400-nit LCD
- Glove-friendly multi-touch screen
- Native network redundancy via dual Gigabit Ethernet
- Supports a wide variety of serial interfaces
- IP66-rated front panel for washdown and dusty environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12.1-inch display, 4:3, 400 nits (LB variant)
- Intel Atom x6425E (Elkhart Lake) quad-core 2.0 GHz
- Intel UHD Graphics
- 8 GB DDR4 2400 MHz pre-installed, 32 GB maximum, 1 x SODIMM slot
- PCAP multi-touch screen, glove-friendly
- 2 x Gigabit Ethernet LAN
- 2 x software-selectable RS-232/422/485 serial ports
- 2 x USB 3.0
- 4 DI / 4 DO
- 12/24 VDC power input, 48 W maximum including full USB loading
- IP66 front panel, IP20 rear
- Operating temperature -30 to 60°C, fanless, no heater required

FAQs

Q: What processor and memory does the MPC-3120-E4-LB-T have?
A: It uses an Intel Atom x6425E quad-core processor at 2.0 GHz with Intel UHD Graphics and 8 GB of DDR4 2400 MHz memory pre-installed. The single SODIMM slot supports up to 32 GB.

Q: What does the LB in the model number mean?
A: LB denotes the 400-nit display variant of the 12.1-inch MPC-3120 panel computer. The wider MPC-3120 family also includes a 1000-nit option for brighter environments.

Q: Does this panel PC need a fan or heater?
A: No. It is fanless and operates from -30 to 60°C without a heater, which suits cold-storage, outdoor and dusty industrial sites.

Q: What interfaces are available for connecting field devices?
A: It provides 2 x Gigabit Ethernet, 2 x software-selectable RS-232/422/485 serial ports, 2 x USB 3.0 and 4 DI / 4 DO channels.

Q: What power supply does it require?
A: It accepts a 12/24 VDC input and draws up to 48 W including full USB loading.

Q: Can it be used with gloves?
A: Yes. The PCAP multi-touch screen is glove-friendly, making it suitable for operators wearing protective gloves.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
