Moxa MPC-3120-E2-T | MPC-3120 12.1in Fanless Panel PC, Atom x6211E, 8GB, -T

Authorised Moxa Partner

SKU:MPC-3120-E2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

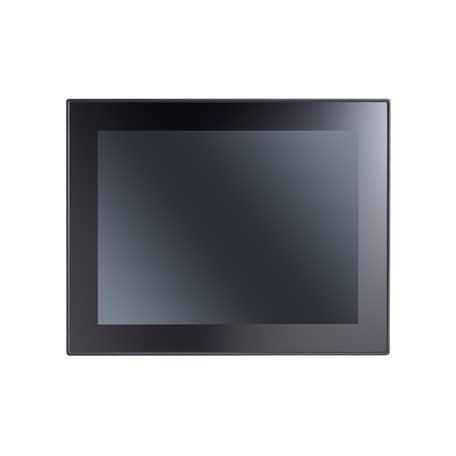

The MPC-3120-E2-T is a 12.1-inch fanless industrial panel PC built around an Intel Atom x6211E dual-core 1.30 GHz processor with 8 GB DDR4 pre-installed. This E2 wide-temperature model pairs a 1000-nit sunlight-readable PCAP multi-touch display with glove support, an IP66-rated front panel and a -30 to 60°C operating range, making it well suited to factory floors, outdoor kiosks and harsh control-room environments.

Connectivity includes 2 x Gigabit Ethernet, 2 x software-selectable RS-232/422/485 serial ports, 2 x USB 3.0, HDMI 1.2a output and isolated 4 DI / 4 DO. TPM 2.0 supports secure deployments, and the 12/24 VDC input suits industrial power systems. The fanless design with no heater required keeps maintenance low in dusty or demanding sites.

Features

- Fanless design with no heater required for -30 to 60°C operation
- 1000-nit sunlight-readable display for outdoor and bright environments
- Glove-friendly 4-point PCAP multi-touch screen
- IP66-rated front panel for dust and water resistance
- Isolated digital I/O (4 DI / 4 DO) for direct industrial device connection
- TPM 2.0 for secure industrial deployments
- Dual Gigabit Ethernet and dual software-selectable serial ports
- Wide 12/24 VDC input for industrial power systems

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12.1-inch 1024 x 768 (4:3) PCAP multi-touch LCD, 1000 nits, 178°/178° viewing angles
- Intel Atom x6211E (Elkhart Lake) dual-core 1.30 GHz with Intel UHD Graphics
- 8 GB DDR4 2400 MHz pre-installed, 1 x SODIMM slot, 32 GB maximum
- 2 x 10/100/1000 Mbps Ethernet (RJ45)
- 2 x RS-232/422/485 serial ports (DB9 male), software-selectable
- 2 x USB 3.0 Type-A
- 1 x HDMI 1.2a video output (Type-A)
- 4 isolated digital inputs and 4 isolated digital outputs
- TPM v2.0
- 12/24 VDC power input, 48 W maximum including full USB loading
- IP66-rated front panel
- Operating temperature -30 to 60°C, fanless design

FAQs

Q: What processor and memory does the MPC-3120-E2-T have?
A: It uses an Intel Atom x6211E (Elkhart Lake) dual-core 1.30 GHz processor with 8 GB DDR4 2400 MHz pre-installed. There is one SODIMM slot supporting up to 32 GB.

Q: What is the operating temperature range?
A: The -T wide-temperature model operates from -30 to 60°C. It is fanless and does not require a heater.

Q: Can it be used outdoors or in bright sunlight?
A: The 12.1-inch display delivers 1000 nits, so it is readable in direct sunlight. The front panel is IP66-rated for dust and water ingress.

Q: Does the touchscreen work with gloves?
A: Yes. The projective capacitive (PCAP) touchscreen supports glove use and 4-point multi-touch.

Q: What I/O does the MPC-3120-E2-T provide?
A: It has 2 x Gigabit Ethernet (RJ45), 2 x RS-232/422/485 serial ports (DB9), 2 x USB 3.0, 1 x HDMI 1.2a output, and 4 DI / 4 DO with isolation protection.

Q: What power input does it require?
A: It accepts a 12/24 VDC input, with a maximum power consumption of 48 W including full USB loading.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
