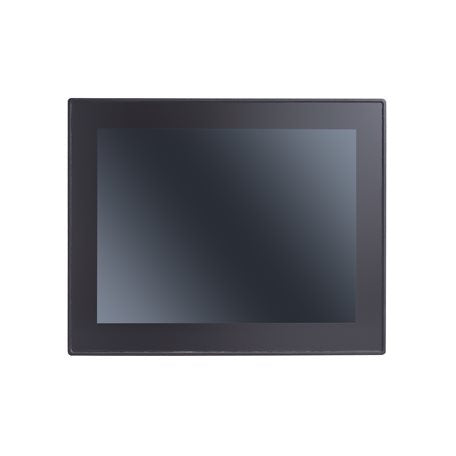

Moxa MPC-3100-E4-T | MPC-3100 10.4in Fanless Panel PC, Atom x6425E, 8GB, -30 to 60C

Authorised Moxa Partner

SKU:MPC-3100-E4-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MPC-3100-E4-T is a 10.4-inch fanless industrial panel PC built around a quad-core Intel Atom x6425E processor (2.0 GHz, Elkhart Lake) with 8 GB of DDR4 RAM pre-installed. Its 1000-nit PCAP multi-touch XGA display with glove support, IP66-rated front panel and -30 to 60°C operating range make it suited to factory floors, outdoor cabinets, marine and hazardous-location HMI deployments.

I/O includes dual Gigabit LAN, two software-selectable RS-232/422/485 serial ports, two USB 3.0 ports, HDMI output and isolated 4 DI / 4 DO channels, powered from a 12/24 VDC input. It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional and Linux distributions including Debian, Ubuntu and RHEL, and includes TPM v2.0 for hardware-based security.

Features

- Fanless metal housing with no moving parts for reliable continuous operation
- 1000-nit PCAP multi-touch display with glove support for readability and use in demanding environments
- IP66-rated front panel resists dust and water jets at the operator interface
- Wide -30 to 60°C operating temperature range for cold storage, outdoor and heated cabinet installations
- Hazardous-location certifications: ATEX Zone 2, Class I Division 2, IECEx Zone 2
- Maritime certifications: DNV-CG-0339, IEC 60945, IACS E10
- Built-in TPM v2.0 for hardware-based security
- Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, Debian 11, Ubuntu 22.04 LTS and RHEL 9 support
- Dual Gigabit LAN, dual RS-232/422/485, USB 3.0 and isolated 4 DI / 4 DO for direct machine connectivity
- 12/24 VDC wide power input suits industrial and vehicle supplies

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom x6425E quad-core, 2.0 GHz (Elkhart Lake)
- Graphics: Intel UHD Graphics
- Memory: 8 GB DDR4 2400 MHz pre-installed, 1 x SODIMM slot, 32 GB maximum
- Storage slots: 1 x CFast, 1 x SD 3.0 (SDHC/SDXC)
- Display: 10.4-inch XGA (1024 x 768), 4:3, 1000 nits, 1000:1 contrast, 176°/176° viewing angles
- Touch: projective capacitive (PCAP), 4 touch points, glove support
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485 (DB9 male), software-selectable, 50 bps to 115.2 kbps
- USB: 2 x USB 3.0 Type-A
- Video output: 1 x HDMI 1.2a
- Digital I/O: 4 DI and 4 DO, isolated
- Security: TPM v2.0
- Power input: 12/24 VDC, 42 W maximum
- Ingress protection: IP66 front, IP20 rear
- Housing: metal, fanless
- Dimensions: 260 x 210 x 73.8 mm
- Weight: 2,300 g
- Operating temperature: -30 to 60°C
- Humidity: 5 to 95% non-condensing
- Approvals: ATEX Zone 2, Class I Division 2, IECEx Zone 2, DNV-CG-0339, IEC 60945, IACS E10, IEC 62368-1, UL 62368-1, RoHS, CRoHS, WEEE

FAQs

Q: What processor and memory does the MPC-3100-E4-T use?
A: It uses a quad-core Intel Atom x6425E (Elkhart Lake) running at 2.0 GHz with 8 GB of DDR4 2400 MHz RAM pre-installed. The single SODIMM slot supports up to 32 GB.

Q: Which operating systems are supported?
A: Supported operating systems are Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: Is the MPC-3100-E4-T suitable for hazardous or marine environments?
A: It carries ATEX Zone 2, Class I Division 2 and IECEx Zone 2 hazardous-location certifications, plus maritime certifications DNV-CG-0339, IEC 60945 and IACS E10.

Q: What temperature and ingress protection ratings apply?
A: It operates from -30 to 60°C and has an IP66-rated front panel (IP20 rear), with a fanless metal housing.

Q: What I/O and storage options are available?
A: There are two Gigabit RJ45 LAN ports, two software-selectable RS-232/422/485 DB9 ports, two USB 3.0 Type-A ports, one HDMI 1.2a output and isolated 4 DI / 4 DO channels. Storage expansion is via one CFast slot and one SD 3.0 slot.

Q: How is the panel PC powered?
A: It accepts a 12/24 VDC input and draws up to 42 W including full USB loading.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
