Moxa MPC-3100-E4-LB-T | MPC-3100 10.4in Fanless Panel PC, Atom x6425E, 8GB, -30 to 60°C

Authorised Moxa Partner

SKU:MPC-3100-E4-LB-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

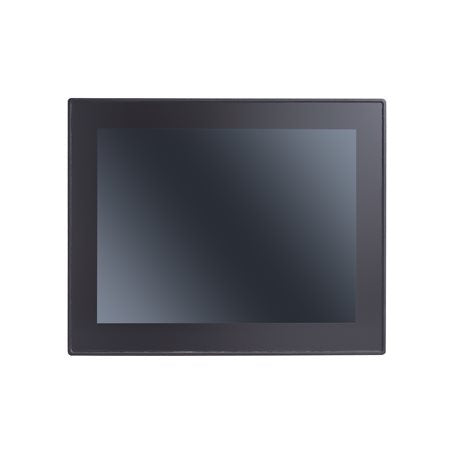

The Moxa MPC-3100-E4-LB-T is a 10.4-inch fanless industrial panel PC built on a quad-core Intel Atom x6425E processor with 8 GB of DDR4 memory. The E4 model pairs a 400-nit multi-touch PCAP display with a wide operating temperature range of -30 to 60°C and an IP66-rated front panel, making it well suited to HMI deployments in harsh outdoor, hazardous, rail-onboard and marine environments.

With 2 x LAN, 2 x serial, 2 x USB 3.0, HDMI output and 4 isolated digital outputs, it connects readily to plant-floor and vehicle equipment. It accepts 12/24 VDC input, includes TPM v2.0, and supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, Debian 11, Ubuntu 22.04 LTS and RHEL 9. Certifications include CID2, ATEX Zone 2, IECEx and DNV.

Features

- Fanless, ruggedised design for outdoor, hazardous, rail-onboard and marine HMI applications
- Certifications include CID2, ATEX Zone 2, IECEx and DNV
- Multi-touch PCAP display with 400-nit brightness
- Wide operating temperature range of -30 to 60°C
- IP66-rated front panel
- Quad-core Intel Atom x6425E with 8 GB DDR4 pre-installed

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom Elkhart Lake quad-core x6425E, 2.0 GHz
- Graphics: Intel UHD Graphics
- Memory: 8 GB DDR4 2400 MHz pre-installed, 1 x SODIMM slot, 32 GB maximum
- Storage slots: 1 x CFast, 1 x SD 3.0 (SDHC/SDXC)
- Display: 10.4-inch (viewable) 4:3 LCD, 1024 x 768, 1000:1 contrast, 176°/176° viewing angles
- Brightness: 400 nits, multi-touch PCAP
- Ports: 2 x LAN, 2 x serial, 2 x USB 3.0
- Video output: 1 x HDMI 1.2a (type-A)
- Digital outputs: 4 x DO (isolated)
- Security: TPM v2.0
- Power input: 12/24 VDC
- Front panel: IP66
- Operating temperature: -30 to 60°C
- Supported OS: Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS, RHEL 9

FAQs

Q: What processor and memory does the MPC-3100-E4-LB-T use?
A: It uses a quad-core Intel Atom x6425E running at 2.0 GHz, with 8 GB of DDR4 2400 MHz memory pre-installed. There is one SODIMM slot supporting up to 32 GB.

Q: What does the E4 and LB in the model name mean?
A: E4 denotes the Atom x6425E quad-core configuration, and LB denotes the 400-nit display model. The T suffix indicates the -30 to 60°C wide operating temperature range.

Q: What operating systems are supported?
A: Supported operating systems are Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: Is it suitable for outdoor or hazardous environments?
A: Yes. It has a fanless design, an IP66-rated front panel and a -30 to 60°C operating range, and carries CID2, ATEX Zone 2, IECEx and DNV certifications for hazardous, rail and marine use.

Q: What power input does it require?
A: The unit accepts a 12/24 VDC power input.

Q: What storage and expansion options are available?
A: It provides one CFast slot and one SD 3.0 slot (SDHC/SDXC) for storage, plus one SODIMM slot for memory expansion up to 32 GB.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
