Moxa MPC-3100-E2-T | MPC-3100 10.4in Fanless Panel PC, Atom x6211E, 8GB, 1000-nit

Authorised Moxa Partner

SKU:MPC-3100-E2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

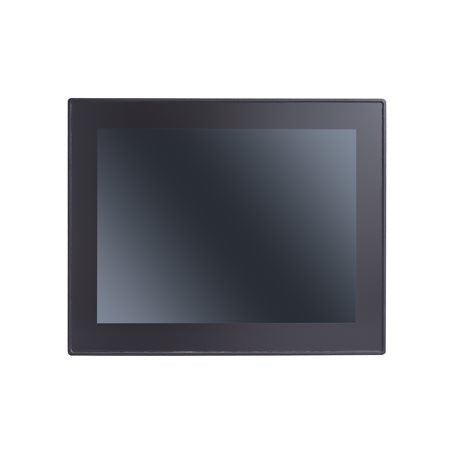

The Moxa MPC-3100-E2-T is a 10.4-inch fanless industrial panel PC built on a dual-core Intel Atom x6211E processor at 1.30 GHz with 8 GB RAM. Its sunlight-readable 1000-nit PCAP multi-touch display and IP66-rated front panel make it well suited to outdoor, rail, marine and hazardous-area HMI deployments where reliable touch operation and wide-temperature performance are required.

The fanless, heater-free design operates from -30 to 60°C on a 12/24 VDC supply. Dual LAN, dual serial, USB 3.0 and 4 DI / 4 DO connectivity let it link directly to field devices, controllers and networks, while a glove-friendly touchscreen keeps operation simple in demanding environments.

Features

- Fanless design with no heater required
- Sunlight-readable 1000-nit LCD
- Glove-friendly multi-touch PCAP screen
- IP66 front panel protection against dust and water
- Certifications include DNV, CID2, ATEX Zone 2 and IECEx
- Maritime compliance: DNV-CG-0339, IEC 60945, IACS E10
- Safety approvals: IEC 62368-1 and UL 62368-1
- Shock tested to IEC 60068-2-27
- RoHS, CRoHS and WEEE compliant

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 10.4 inch (4:3) LCD, 1000 nits, PCAP multi-touch
- Intel Atom x6211E (Elkhart Lake) dual-core, 1.30 GHz
- Intel UHD Graphics
- 8 GB RAM
- 2 x LAN
- 2 x Serial
- 2 x USB 3.0
- 4 DI / 4 DO
- 12/24 VDC power input
- IP66-rated front panel
- Operating temperature -30 to 60°C, fanless, no heater required

FAQs

Q: What processor and memory does the MPC-3100-E2-T use?
A: It uses a dual-core Intel Atom x6211E (Elkhart Lake) processor at 1.30 GHz with Intel UHD Graphics and 8 GB of RAM.

Q: Is the display readable in direct sunlight?
A: Yes. The 10.4-inch PCAP display is rated at 1000 nits, making it sunlight-readable, and it supports glove-friendly multi-touch.

Q: What operating temperature range does it support?
A: It operates from -30 to 60°C. The fanless design needs no heater, which suits outdoor and cold-environment installations.

Q: What I/O and power options are available?
A: The panel PC provides 2 x LAN, 2 x serial, 2 x USB 3.0 and 4 DI / 4 DO, and is powered from a 12/24 VDC input.

Q: What environments is this panel PC designed for?
A: It is designed for outdoor, rail, marine and hazardous-area HMI use, with an IP66 front panel and certifications including DNV, CID2, ATEX Zone 2 and IECEx.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
