Moxa MPC-3100-E2-LB-T | MPC-3100 10.4in Fanless Panel PC, Atom x6211E, 8GB, 400-nit

Authorised Moxa Partner

SKU:MPC-3100-E2-LB-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

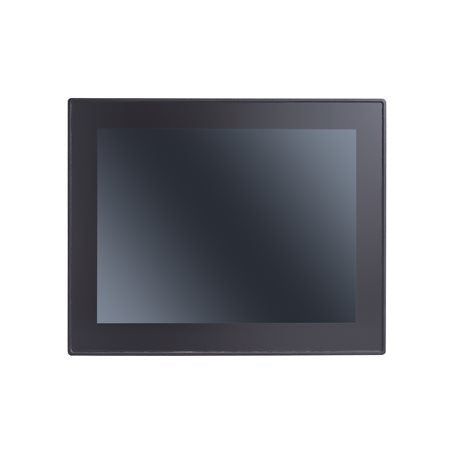

The MPC-3100-E2-LB-T is a 10.4-inch fanless industrial panel PC built around a dual-core Intel Atom x6211E processor with 8 GB DDR4 RAM and a 400-nit (LB) multi-touch PCAP display. It is rated for -30 to 60°C operation with no heater required and carries an IP66-rated front panel, making it suited to hot, outdoor and harsh environments such as oil and gas fields and drilling platforms.

Connectivity includes 2 x Gigabit LAN, 2 x software-selectable RS-232/422/485 serial ports, 2 x USB 3.0, HDMI output and 4 isolated digital inputs and outputs. It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional and several Linux distributions, and holds DNV, ATEX Zone 2, Class I Division 2 and IECEx Zone 2 approvals.

Features

- Fanless, streamlined enclosure for efficient heat dissipation with no heater required
- Designed for -30 to 60°C operation in harsh, hot, outdoor environments
- Glove-friendly multi-touch PCAP screen
- 400-nit sunlight-readable LCD on this LB model
- Hazardous-location and maritime approvals including DNV, ATEX Zone 2, Class I Division 2 and IECEx Zone 2
- Supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional and several Linux distributions
- TPM v2.0 and isolated DI/DO for secure, field-ready integration

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 10.4-inch 4:3 XGA (1024 x 768) display, 400 nits, 1000:1 contrast
- Projective capacitive (PCAP) touch, 4 touch points, glove support
- Intel Atom x6211E dual-core 1.30 GHz, Intel UHD Graphics
- 8 GB DDR4 2400 MHz pre-installed, 1 x SODIMM slot (32 GB max)
- Storage: 1 x CFast slot, 1 x SD slot (SD 3.0, SDHC/SDXC)
- 2 x 10/100/1000 Mbps LAN (RJ45), 1.5 kV magnetic isolation
- 2 x RS-232/422/485 serial ports (DB9 male), 50 bps to 115.2 kbps
- 2 x USB 3.0 type-A, 1 x HDMI 1.2a
- 4 isolated DI / 4 isolated DO
- TPM v2.0
- 12/24 VDC input, 42 W max power consumption
- IP66 front / IP20 rear, metal housing
- Dimensions: 260 x 210 x 73.8 mm, weight 2,300 g
- Operating temperature -30 to 60°C, storage -40 to 70°C
- Humidity 5 to 95% non-condensing
- Approvals: ATEX Zone 2, Class I Division 2, IECEx Zone 2, DNV-CG-0339, IEC 60945, IACS E10

FAQs

Q: What operating systems does the MPC-3100-E2-LB-T support?
A: It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: What temperature range can it operate in?
A: It is rated for -30 to 60°C operation without a heater, using a fanless design for heat dissipation.

Q: Is this panel PC suitable for outdoor or hazardous locations?
A: The front panel is IP66 rated and the unit carries ATEX Zone 2, Class I Division 2 and IECEx Zone 2 approvals, as well as DNV and IEC 60945 maritime certifications.

Q: How can I expand memory and storage?
A: It ships with 8 GB DDR4 2400 MHz and has one SODIMM slot supporting up to 32 GB. Storage expansion is via one CFast slot and one SD slot.

Q: What power input does it require?
A: It accepts 12/24 VDC input, with a maximum power consumption of 42 W including full USB loading.

Q: What does the LB in the model name indicate?
A: LB denotes the 400-nit display variant. This SKU combines the 400-nit display with the Atom x6211E dual-core CPU and 8 GB RAM.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
