Moxa MPC-3070W-E4-T | MPC-3070W 7in Fanless Panel PC, Atom x6425E, 8GB, 1000-nit

Authorised Moxa Partner

SKU:MPC-3070W-E4-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

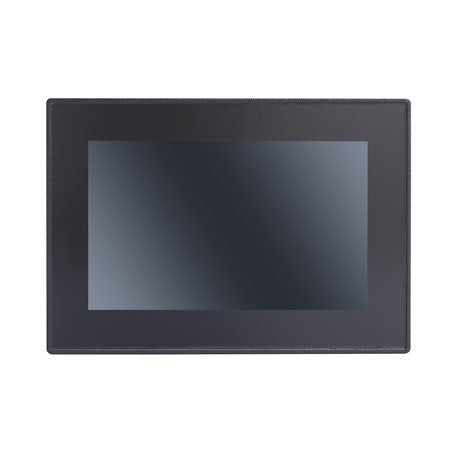

The Moxa MPC-3070W-E4-T is a 7-inch fanless industrial panel PC powered by a quad-core Intel Atom x6425E processor with 8GB of DDR4 memory. Its 1000-nit sunlight-readable projected-capacitive multi-touch display is glove-friendly, and the IP66-rated front panel suits harsh, hot outdoor environments such as oil and gas fields and drilling platforms.

Dual Gigabit Ethernet ports provide native network redundancy, while two software-selectable RS-232/422/485 serial ports, two USB 3.0 ports, HDMI output and isolated digital outputs cover field connectivity. It runs from 12/24 VDC across a -30 to 60°C operating range with no heater required, and carries ATEX Zone 2, Class I Division 2, IECEx Zone 2 and DNV certifications.

Features

- Fanless, streamlined enclosure for efficient heat dissipation
- Sunlight-readable, glove-friendly, multi-touch screen
- Native network redundancy with dual Gigabit Ethernet ports
- Wide -30 to 60°C operating range without a heater
- DNV, CID2, ATEX Zone 2 and IECEx compliant
- Panel-mount installation kit and 2-pin DC terminal block included

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom Elkhart Lake quad-core x6425E, 2.0 GHz
- Graphics: Intel UHD Graphics
- Memory: 8 GB DDR4 2400 MHz pre-installed, 1 x SODIMM DDR4 slot, 32 GB maximum
- Display: 7-inch viewable, 5:3 aspect ratio, 152.4 x 91.44 mm active area, 800:1 typical contrast
- Brightness: 1000 nits, projected-capacitive glove-friendly multi-touch
- LAN: 2 x Gigabit Ethernet
- Serial: 2 x software-selectable RS-232/422/485
- USB: 2 x USB 3.0
- Video output: 1 x HDMI 1.2a (type-A)
- Digital outputs: 4 x isolated DO
- Security: TPM v2.0
- Power input: 12/24 VDC
- Front panel protection: IP66
- Operating temperature: -30 to 60°C, fanless, no heater required
- Certifications: ATEX Zone 2, Class I Division 2, IECEx Zone 2, DNV-CG-0339, IEC 60945, IACS E10

FAQs

Q: What processor and memory does the MPC-3070W-E4-T use?
A: It uses a quad-core Intel Atom x6425E running at 2.0 GHz with 8 GB of DDR4 2400 MHz memory pre-installed. A single SODIMM slot supports expansion up to 32 GB.

Q: Can it operate in extreme temperatures?
A: Yes. It is fanless and operates from -30 to 60°C without a heater, making it suitable for hot outdoor and field installations.

Q: Is the display readable in direct sunlight and with gloves?
A: The 7-inch projected-capacitive display delivers 1000 nits of brightness for sunlight readability and supports glove-friendly multi-touch operation.

Q: What serial and network connectivity is available?
A: It provides two Gigabit Ethernet LAN ports for network redundancy and two software-selectable RS-232/422/485 serial ports, plus two USB 3.0 ports and one HDMI output.

Q: What power input does it require?
A: It accepts a 12/24 VDC input, and a 2-pin DC terminal block is included.

Q: Which hazardous-location and marine certifications does it hold?
A: It is certified for ATEX Zone 2, Class I Division 2 and IECEx Zone 2, and complies with DNV-CG-0339, IEC 60945 and IACS E10.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
