Moxa MPC-3070W-E4-LB-T | MPC-3070W 7in Fanless Panel Computer, Atom x6425E, 8GB, -30 to 60C

Authorised Moxa Partner

SKU:MPC-3070W-E4-LB-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

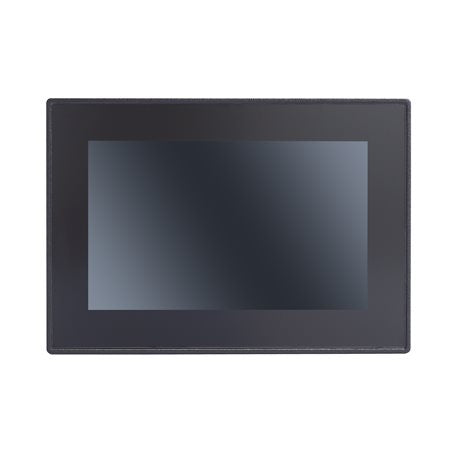

The Moxa MPC-3070W-E4-LB-T is a 7-inch fanless industrial panel computer built around an Intel Atom x6425E quad-core 2.0 GHz processor with 8 GB of DDR4 memory. It pairs a 400-nit projected-capacitive multi-touch display with an IP66-rated front panel and a wide -30 to 60°C operating range, making it suited to harsh, outdoor, marine and hazardous-location deployments.

Connectivity includes dual Gigabit Ethernet, two software-selectable RS-232/422/485 serial ports, two USB 3.0 hosts, HDMI output and isolated 4 DI / 4 DO. It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, Debian 11, Ubuntu 22.04 LTS and RHEL 9, with TPM v2.0 for hardware security and ATEX Zone 2, Class I Division 2, IECEx Zone 2 and maritime certifications.

Features

- Fanless, streamlined metal enclosure for efficient heat dissipation
- Sunlight-readable, glove-friendly PCAP multi-touch screen
- IP66-rated front panel for washdown and outdoor environments
- Wide -30 to 60°C operating temperature range
- Two Gigabit Ethernet ports with built-in network redundancy
- Two software-selectable RS-232/422/485 serial ports
- Hazardous-location (ATEX Zone 2, C1D2, IECEx) and maritime (DNV, IEC 60945) certifications
- Supports Windows 10 IoT, Windows 11 Pro, Debian 11, Ubuntu 22.04 and RHEL 9
- TPM v2.0 for hardware-based security

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom Elkhart Lake quad-core x6425E 2.0 GHz
- Graphics: Intel UHD Graphics
- Memory: 8 GB DDR4 2400 MHz pre-installed, 1 x SODIMM slot, 32 GB max
- Storage slots: 1 x CFast, 1 x SD (SD 3.0, SDHC/SDXC)
- Display: 7 in, 800 x 480, 5:3, AAS panel, 400 nits, 800:1 contrast, 178°/178° viewing angles
- Touch: Projective capacitive (PCAP), 4 points, glove support
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485, software-selectable, DB9 male
- USB: 2 x USB 3.0 type-A hosts
- Video output: 1 x HDMI 1.2a
- I/O: 4 isolated DI, 4 isolated DO
- Security: TPM v2.0
- Power input: 12/24 VDC, 37 W max including full USB loading
- Housing: Metal, IP66 front, IP20 rear
- Dimensions: 200 x 140 x 60.5 mm
- Weight: 1,600 g
- Operating temperature: -30 to 60°C
- Storage temperature: -40 to 70°C
- Humidity: 5 to 95% non-condensing
- Hazardous locations: ATEX Zone 2, Class I Division 2, IECEx Zone 2
- Maritime: DNV-CG-0339, IEC 60945, IACS E10
- Supported OS: Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional 64-bit, Debian 11, Ubuntu 22.04 LTS, RHEL 9

FAQs

Q: What does the -T in MPC-3070W-E4-LB-T mean?
A: The -T suffix denotes the wide-temperature model, rated for operation from -30 to 60°C.

Q: How much memory does it include and can it be expanded?
A: It ships with 8 GB of DDR4 2400 MHz memory in a single SODIMM slot and supports up to 32 GB.

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: Is the display readable in direct sunlight and usable with gloves?
A: The LB model has a 400-nit brightness PCAP multi-touch screen that supports glove operation, suited to bright and harsh environments.

Q: What ingress protection does it have?
A: The front panel is IP66 rated and the rear is IP20, so the rear should be installed inside an enclosure or panel cut-out.

Q: What power input does it need?
A: It accepts a 12/24 VDC input, with maximum consumption of 37 W including full USB loading.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
