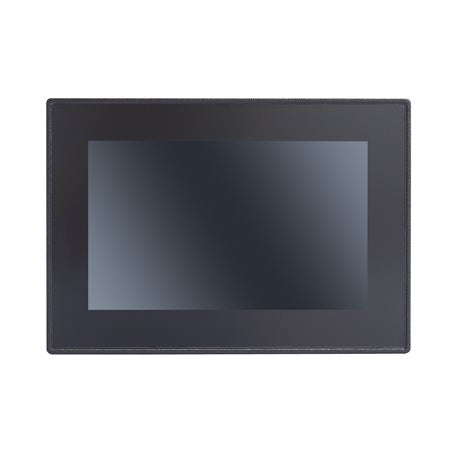

Moxa MPC-3070W-E2-T | MPC-3070W 7in Fanless Panel PC, Atom x6211E, 8GB, 1000 Nits

Authorised Moxa Partner

SKU:MPC-3070W-E2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MPC-3070W-E2-T is a 7-inch fanless industrial panel PC built around a dual-core Intel Atom x6211E processor with 8 GB of pre-installed DDR4 memory. Its 1000-nit sunlight-readable PCAP touchscreen supports multi-touch and glove operation, and the fanless design is rated for -30 to 60°C operation without a heater, making it suited to outdoor, marine and harsh factory-floor HMI deployments.

Two Gigabit Ethernet ports, two software-selectable RS-232/422/485 serial ports, two USB 3.0 ports and four isolated digital inputs and outputs connect directly to PLCs, sensors and field devices. The IP66-rated front panel, 12/24 VDC input and support for Windows 10 IoT Enterprise LTSC, Windows 11 Professional, Debian, Ubuntu and RHEL give integrators flexibility across control room and mobile equipment applications.

Features

- Dual-core Intel Atom x6211E processor for industrial HMI and edge workloads
- Fanless design with -30 to 60°C operation and no heater required
- 1000-nit sunlight-readable display for outdoor and bright environments
- Glove-friendly multi-touch PCAP touchscreen
- IP66-rated front panel for washdown and dust resistance
- Two software-selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports with native network redundancy
- Isolated 4 DI / 4 DO for direct field device integration
- Supports Windows 10 IoT Enterprise LTSC, Windows 11 Professional, Debian 11, Ubuntu 22.04 LTS and RHEL 9
- Hazardous location and maritime approvals including ATEX Zone 2, IECEx Zone 2 and DNV (some certifications in progress)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom x6211E dual-core 1.30 GHz (Elkhart Lake)
- Memory: 8 GB DDR4 2400 MHz pre-installed, 1 x SODIMM slot, 32 GB maximum
- Display: 7-inch 800 x 480, 1000 nits, 800:1 contrast, 178°/178° viewing angles
- Touch: projective capacitive (PCAP), 4-point multi-touch, glove support
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485, software-selectable (DB9 male)
- USB: 2 x USB 3.0 Type-A
- Digital I/O: 4 isolated DI, 4 isolated DO
- Storage: 1 x CFast slot, 1 x SD 3.0 slot
- Power input: 12/24 VDC, 37 W maximum
- Ingress protection: IP66 front, IP20 rear
- Operating temperature: -30 to 60°C, fanless
- Dimensions: 200 x 140 x 60.5 mm, weight 1,600 g
- Hazardous locations: ATEX Zone 2, Class I Division 2, IECEx Zone 2
- Maritime: DNV-CG-0339, IEC 60945, IACS E10

FAQs

Q: What operating temperature range does the MPC-3070W-E2-T support?
A: It operates from -30 to 60°C without a heater, thanks to its fanless design.

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: Can the touchscreen be used with gloves?
A: Yes. The projective capacitive touchscreen supports multi-touch and glove operation.

Q: Can the memory be upgraded?
A: Yes. It ships with 8 GB DDR4 2400 MHz and has one SODIMM slot supporting up to 32 GB.

Q: What serial interfaces are available?
A: Two DB9 male serial ports, each software-selectable between RS-232, RS-422 and RS-485.

Q: Is the display readable in direct sunlight?
A: Yes. The 7-inch panel delivers 1000 nits brightness, suitable for outdoor and high-ambient-light installations.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
