Moxa MPC-3070W-E2-LB-T | MPC-3070W 7in Fanless Panel PC, Atom x6211E, 8GB, -30 to 60°C

Authorised Moxa Partner

SKU:MPC-3070W-E2-LB-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

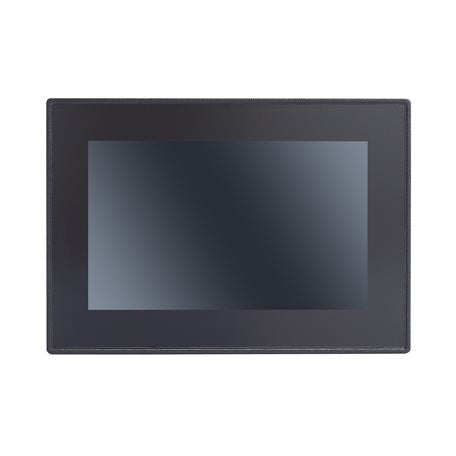

The MPC-3070W-E2-LB-T is a 7-inch fanless industrial panel PC built around a dual-core Intel Atom x6211E processor with 8 GB DDR4 pre-installed. Its 400-nit PCAP multi-touch display supports glove use, and the IP66-rated front and -30 to 60°C operating range suit factory floors, cold-chain sites and outdoor control cabinets without a heater.

Connectivity includes two Gigabit Ethernet ports, two software-selectable RS-232/422/485 serial ports, two USB 3.0 ports and isolated 4 DI / 4 DO, powered from a 12/24 VDC input. It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional and Linux distributions including Debian 11, Ubuntu 22.04 LTS and RHEL 9, with ATEX Zone 2, Class I Division 2, IECEx Zone 2 and maritime approvals listed for the platform.

Features

- Fanless 7-inch panel computer with dual-core Intel Atom x6211E processor
- 30 to 60°C operation with no heater required
- 400-nit PCAP multi-touch display with glove support
- IP66-rated front panel for dust and water exposure
- Two Gigabit Ethernet ports with native network redundancy
- Two software-selectable RS-232/422/485 serial ports for legacy and fieldbus devices
- Isolated 4 DI / 4 DO for direct control and sensing
- 12/24 VDC power input
- Windows 10 IoT, Windows 11 and Linux operating system support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom Elkhart Lake dual-core x6211E 1.30 GHz
- Graphics: Intel HD Graphics
- Memory: 8 GB DDR4 2400 MHz pre-installed, 1 x SODIMM slot, 32 GB maximum
- Storage slots: 1 x CFast, 1 x SD 3.0 (SDHC/SDXC)
- Display: 7 in, 800 x 480, 400 nits, 800:1 contrast, 178°/178° viewing angles
- Touch: projective capacitive (PCAP), 4 touch points, glove support
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485, software-selectable, DB9 male
- USB: 2 x USB 3.0 Type-A
- I/O: 4 x isolated DI, 4 x isolated DO
- Power input: 12/24 VDC, 37 W maximum including full USB loading
- Ingress protection: IP66 front, IP20 rear
- Dimensions: 200 x 140 x 60.5 mm
- Weight: 1,600 g
- Operating temperature: -30 to 60°C
- Humidity: 5 to 95% non-condensing
- Hazardous locations: ATEX Zone 2, Class I Division 2, IECEx Zone 2
- Maritime: DNV-CG-0339, IEC 60945, IACS E10

FAQs

Q: What operating systems does the MPC-3070W-E2-LB-T support?
A: It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: What does the LB in the part number mean?
A: LB denotes the 400-nit LCD brightness option. This SKU combines it with the dual-core Atom x6211E, 8 GB memory and the -30 to 60°C temperature range.

Q: Can it operate in cold environments without a heater?
A: Yes. The fanless design operates from -30 to 60°C without an external heater.

Q: What storage options are available?
A: It has one CFast slot and one SD 3.0 slot (SDHC/SDXC) for storage and expansion.

Q: How is the unit powered?
A: It runs from a 12/24 VDC input, with a maximum power consumption of 37 W including full USB loading.

Q: Can the memory be upgraded?
A: It ships with 8 GB DDR4 2400 MHz in the single SODIMM slot and supports up to 32 GB.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
