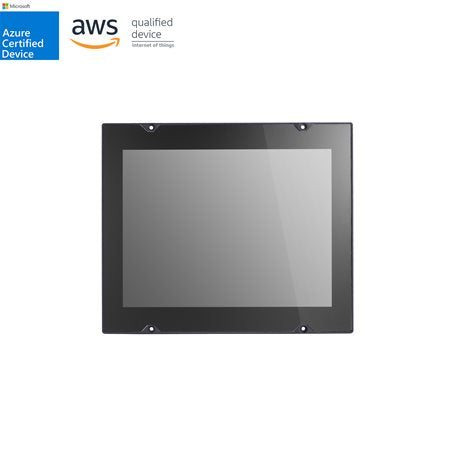

Moxa MPC-2121-E4-CT-T-W7E | MPC-2121 12-Inch Panel Computer, Atom E3845, 4GB, 32GB CFast, Win Embedded 7

Authorised Moxa Partner

SKU:MPC-2121-E4-CT-T-W7E

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MPC-2121-E4-CT-T-W7E is a 12-inch rugged fanless panel computer built on an Intel Atom E3845 1.91 GHz processor with 4 GB DDR3L RAM and a 32 GB CFast card. It features a 1000-nit sunlight-readable multi-touch LCD, Windows Embedded Standard 7 64-bit preinstalled, and a wide 24 to 110 VDC power input, making it well suited to rail and other harsh industrial environments.

Designed to EN 50155:2017 with IP66-rated M12 connectors, a metal housing and conformal coating, it operates from -40 to 70°C with no fan or heater. Two 10/100 Mbps Ethernet ports with native network redundancy, an RS-232/422/485 serial port, a USB 2.0 host port, 4 digital inputs, 2 digital outputs and a Mini PCIe expansion slot provide flexible connectivity for onboard and wayside applications.

Features

- EN 50155:2017 compliant for railway applications
- Wide-temperature design with no fan or heater
- 1000-nit sunlight-readable LCD with multi-touch
- IP66-rated M12 connectors for anti-vibration and waterproof connections
- Native network redundancy over the two Ethernet ports
- Conformal coating for added protection in harsh environments
- Windows Embedded Standard 7 preinstalled for ready deployment

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom E3845, 1.91 GHz (2M cache)
- Graphics: Intel HD Graphics
- Memory: 4 GB DDR3L preinstalled (8 GB max), 1 x SODIMM DDR3/DDR3L slot
- Storage: 32 GB CFast card preinstalled, 1 x CFast slot, 1 x SD 3.0 slot
- Expansion: Mini PCIe
- OS: Windows Embedded Standard 7 (WS7P) 64-bit preinstalled
- Display: 12-inch, 4:3, 1000 cd/m2 brightness, 1000:1 contrast, 16.2M colours, multi-touch
- Active display area: 245.76 x 184.32 mm
- Ethernet: 2 x 10/100 Mbps (M12 D-coded 4P)
- Serial: 1 x RS-232/422/485 (M12 A-coded 12P)
- USB: 1 x USB 2.0 host (M12 A-coded 5P)
- Digital I/O: 4 x DI, 2 x DO
- Power input: 24 to 110 VDC
- Ingress protection: IP66
- Operating temperature: -40 to 70°C
- Housing: metal

FAQs

Q: What operating system comes preinstalled on the MPC-2121-E4-CT-T-W7E?
A: It ships with Windows Embedded Standard 7 (WS7P) 64-bit preinstalled, so it is ready for application deployment.

Q: What power input does this panel computer support?
A: It accepts a wide 24 to 110 VDC input, which suits rail vehicle and industrial power systems.

Q: Is it suitable for outdoor or high-brightness environments?
A: Yes. The 12-inch multi-touch LCD delivers 1000 cd/m2 brightness for sunlight readability, and the unit is IP66 rated.

Q: What temperature range can it operate in?
A: It operates from -40 to 70°C with a fanless, heater-free design.

Q: Can the memory and storage be expanded?
A: Yes. It has one DDR3/DDR3L SODIMM slot supporting up to 8 GB, a CFast slot, an SD 3.0 slot and a Mini PCIe expansion slot.

Q: Does it meet railway standards?
A: Yes. It is EN 50155:2017 compliant and uses IP66-rated M12 connectors for vibration and water resistance.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
