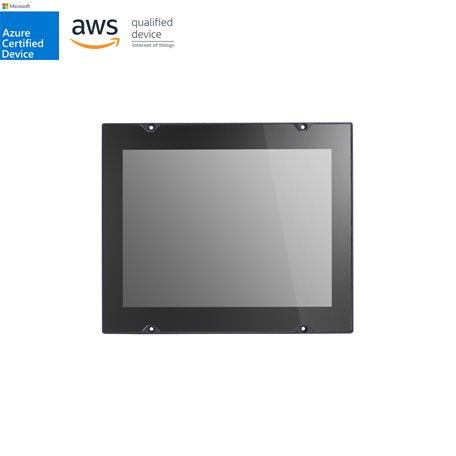

Moxa MPC-2121-E4-CT-T | MPC-2121 12-Inch Panel Computer, Atom E3845, 4GB, 1000-nit

Authorised Moxa Partner

SKU:MPC-2121-E4-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MPC-2121-E4-CT-T is a 12-inch fanless industrial panel computer designed for railway and other rugged deployments. It is built on an Intel Atom E3845 1.91 GHz processor with 4 GB DDR3L RAM and a 1000-nit sunlight-readable PCAP multi-touch LCD. It runs from a 24 to 110 VDC supply and ships with no operating system pre-installed.

IP66-rated M12 connectors and conformal coating support reliable, vibration-resistant and waterproof connections, while the wide -40 to 70°C operating range needs no fan or heater. The EN 50155:2017 compliant design, two M12 Ethernet ports with native network redundancy, CFast and SD storage slots and a Mini PCIe expansion slot make it a flexible platform for onboard rolling stock and harsh-environment HMI applications.

Features

- 12-inch panel computer with Intel Atom E3845 1.91 GHz processor
- 1000-nit sunlight-readable multi-touch LCD
- 40 to 70°C wide-temperature design with no fan or heater
- EN 50155:2017 compliant for railway applications
- IP66-rated M12 connectors for anti-vibration, waterproof connections
- Conformal coating for added environmental protection
- Native network redundancy over two Ethernet ports
- CFast, SD and Mini PCIe expansion options

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom E3845 processor, 1.91 GHz, 2M cache
- Graphics: Intel HD Graphics
- Memory: 4 GB DDR3L pre-installed, 8 GB maximum, 1 x SODIMM DDR3/DDR3L slot
- Operating system: not pre-installed
- Display: 12-inch, 1024 x 768, 4:3, PCAP multi-touch
- Brightness: 1000 cd/m2, contrast ratio 1000:1
- Viewing angles: 176°/176°, response time 5 ms (gray to gray)
- LAN: 2 x 10/100 Mbps auto-sensing ports (M12 D-coded 4P)
- Digital I/O: 4 x DI, 2 x DO (M12 A-coded)
- Serial: 1 x RS-232/422/485 (M12 A-coded 12P)
- USB: 1 x USB 2.0 host (M12 A-coded 5P)
- Storage slots: 1 x CFast, 1 x SD (SD 3.0 SDHC/SDXC)
- Expansion: Mini PCIe slot
- Input voltage: 24 to 110 VDC
- Operating temperature: -40 to 70°C
- Ingress protection: IP66 (IEC 60529)
- Standards: EN 50155, EN 55032/35, IEC 60950-1, IEC 62368-1, UL 62368-1

FAQs

Q: Does the MPC-2121-E4-CT-T come with an operating system?
A: No. It ships with no OS pre-installed. Supported operating systems include Windows 10 Pro 64-bit, Windows 10 Embedded IoT Enterprise 2019 LTSC 64-bit, Windows 10 Embedded IoT Enterprise 2016 LTSB, Windows 7 Pro for Embedded Systems, Windows Embedded Standard 7 64-bit and Linux Debian 9.

Q: What power supply does this panel computer require?
A: It accepts a 24 to 110 VDC input, which suits typical railway and industrial DC supplies.

Q: Is this panel computer suitable for railway use?
A: Yes. It is EN 50155:2017 compliant, uses IP66-rated M12 connectors for vibration and water resistance, and features conformal coating and a -40 to 70°C operating range.

Q: Can the memory be upgraded?
A: Yes. It ships with 4 GB DDR3L in a single SODIMM DDR3/DDR3L slot and supports up to 8 GB.

Q: What storage and expansion options are available?
A: There is one CFast slot and one SD slot (SD 3.0 SDHC/SDXC) for storage, plus a Mini PCIe slot for expansion.

Q: How readable is the display outdoors or in bright light?
A: The 12-inch 1024 x 768 PCAP multi-touch LCD is rated at 1000 cd/m2, making it sunlight-readable, with 176°/176° viewing angles.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
