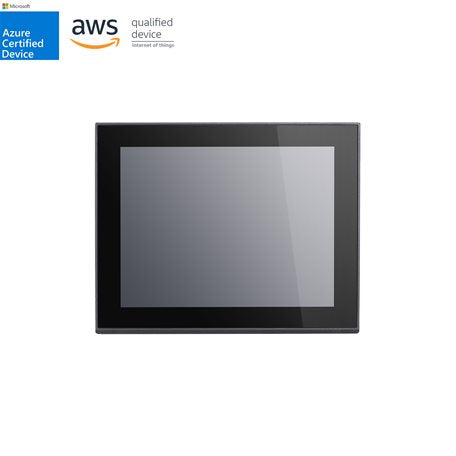

Moxa MPC-2120-E2-LB-T | MPC-2120 12in Panel Computer, E3826, 4GB, 500 Nits, Touch

Authorised Moxa Partner

SKU:MPC-2120-E2-LB-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MPC-2120-E2-LB-T is a 12-inch fanless industrial panel computer built around an Intel Atom E3826 processor with 4 GB of pre-installed DDR3L memory. Its 500-nit 1024 x 768 display with 4-point PCAP multi-touch and glove support stays readable and usable on the plant floor, in vehicles and in outdoor enclosures, while the IP66-rated front and -40 to 70°C operating range handle washdown, dust and temperature extremes.

The MPC-2120 offers 2 x Gigabit Ethernet, 2 x software-selectable RS-232/422/485 serial ports, 2 x USB 2.0 hosts and 4 digital inputs and outputs for connecting PLCs, sensors and legacy equipment. It accepts a wide 10 to 36 VDC input and has CFast and SD storage slots plus a spare SODIMM slot. This model ships without a pre-installed operating system and supports Windows 10, Windows 7 Embedded and Linux Debian 9. It carries ATEX, Class I Division 2, IECEx and DNV approvals for hazardous and maritime installations.

Features

- Fanless design with an extended operating range of -40 to 70°C
- IP66-rated front panel for dust and water resistance
- 500-nit LCD with 4-point PCAP multi-touch and glove support
- Wide 10 to 36 VDC power input suits vehicle and industrial supplies
- Hazardous location approvals (ATEX, Class I Division 2, IECEx) and DNV maritime certification
- CFast and SD storage slots, 2 x Gigabit LAN and 2 x RS-232/422/485 serial ports
- 4 digital inputs and 4 digital outputs for direct equipment control

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Atom E3826, 1.46 GHz, 1M cache
- Graphics: Intel HD Graphics
- Memory: 4 GB DDR3L pre-installed, 1 x SODIMM DDR3/DDR3L slot
- Operating system: not pre-installed
- Supported OS: Windows 10 Pro 64-bit, Windows 10 Embedded IoT Enterprise 2016 LTSB 64-bit, Windows 7 Pro for Embedded Systems, Windows Embedded Standard 7 64-bit, Linux Debian 9
- Display: 12-inch TN LCD, 1024 x 768, 4:3, 500 cd/m2, 700:1 contrast, 16.2M colours
- Viewing angles: 160°/140°, 5 ms response time
- Touch: capacitive (PCAP), 4 points, glove support
- Storage slots: 1 x CFast, 1 x SD (SD 3.0 SDHC/SDXC)
- Ethernet: 2 x 10/100/1000 Mbps RJ45
- Serial: 2 x RS-232/422/485, software selectable, DB9 male, 50 bps to 115.2 kbps
- USB: 2 x USB 2.0 type-A hosts
- Digital I/O: 4 DI, 4 DO
- Power input: 10 to 36 VDC, 40 W maximum
- Ingress protection: IP66 front, IP20 rear
- Housing: metal
- Dimensions: 306 x 245 x 64 mm
- Weight: 2,640 g
- Operating temperature: -40 to 70°C
- Humidity: 5 to 95% non-condensing
- Certifications: ATEX, Class I Division 2, IECEx, DNV, FCC Part 15B Class A, RoHS, CRoHS, WEEE

FAQs

Q: Does the MPC-2120-E2-LB-T come with an operating system?
A: No. This model has no pre-installed operating system. It supports Windows 10 Pro 64-bit, Windows 10 Embedded IoT Enterprise 2016 LTSB, Windows 7 Pro for Embedded Systems, Windows Embedded Standard 7 and Linux Debian 9.

Q: What temperature range can it operate in?
A: This -T model is rated for -40 to 70°C operation, with 5 to 95% non-condensing humidity, suitable for unheated enclosures and hot industrial environments.

Q: Can the touchscreen be used with gloves?
A: Yes. The capacitive PCAP touchscreen supports 4 touch points and glove operation.

Q: What storage and memory expansion options are there?
A: It has 4 GB DDR3L pre-installed with a SODIMM DDR3/DDR3L slot, plus one CFast slot and one SD slot (SD 3.0 SDHC/SDXC) for storage.

Q: What power supply does it need?
A: It accepts 10 to 36 VDC with a maximum consumption of 40 W, so it can run from common industrial and vehicle DC supplies.

Q: Is it suitable for hazardous or maritime installations?
A: It holds ATEX, Class I Division 2 and IECEx hazardous location approvals as well as DNV maritime certification. The IP66 front rating protects the display face from dust and water jets.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
